Removal [10/2018 - ]: Procedure

  1. REMOVE LOWER INSTRUMENT PANEL FINISH CENTER PANEL

    Refer to REMOVAL [10/2018 - ]

  2. REMOVE COOLER (ROOM TEMP. SENSOR) THERMISTOR

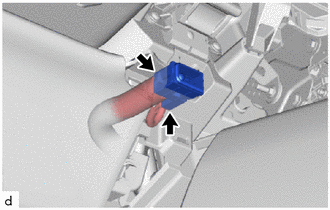

    1. Disconnect the connector.
      GTY836279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the air conditioning duct sub-assembly to remove the cooler thermistor (room temperature sensor).
