Removal [10/2018 - 07/2022]: Procedure

  1. REMOVE INSTRUMENT CENTER CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to REMOVAL [10/2018 - 07/2022]

  2. REMOVE AIR CONDITIONING CONTROL ASSEMBLY
    1. Remove the 3 screws.

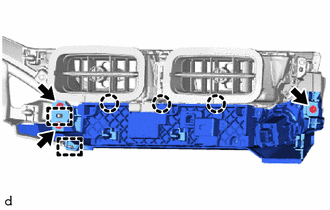

      GTY816135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claws and guides to remove the air conditioning control assembly.
