Removal [10/2018 - ]: Procedure

  1. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP

    Refer to PROCEDURE - Step 9 [10/2018 - 08/2021] , or refer to PROCEDURE - Step 9 [08/2021 - 07/2022] , or refer to PROCEDURE - Step 9 [07/2022 - ]

  2. REMOVE FRONT PILLAR GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 38 [10/2018 - 08/2021] , or refer to PROCEDURE - Step 38 [08/2021 - 07/2022] , or refer to PROCEDURE - Step 26 [07/2022 - ]

  3. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 40 [10/2018 - 08/2021] , or refer to PROCEDURE - Step 40 [08/2021 - 07/2022] , or refer to PROCEDURE - Step 28 [07/2022 - ]

  4. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY
    NOTE:

    Do not touch the cone part of the speaker.

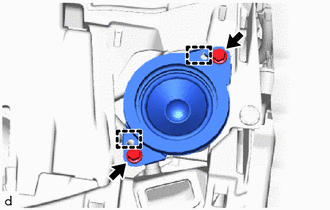

    1. Remove the 2 bolts.
      GTY803907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guides to remove the front No. 2 speaker assembly.
    3. Disconnect the connector.
  5. REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY (w/ Front Center Speaker)

    Refer to PROCEDURE - Step 43 [10/2018 - 08/2021] , or refer to PROCEDURE - Step 43 [08/2021 - 07/2022] , or refer to PROCEDURE - Step 31 [07/2022 - ]

  6. REMOVE FRONT NO. 3 SPEAKER ASSEMBLY (w/ Front Center Speaker)
    NOTE:

    Do not touch the cone part of the speaker.

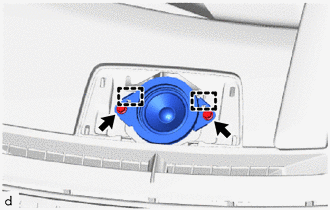

    1. Remove the 2 bolts.
      GTY803908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guides to remove the front No. 3 speaker assembly.
    3. Disconnect the connector.
