Removal [10/2018 - 07/2022]: Procedure

  1. REMOVE NO. 1 DEFROSTER NOZZLE GARNISH

    Refer to PROCEDURE - Step 21 [10/2018 - 08/2021] , or refer to PROCEDURE - Step 21 [08/2021 - 07/2022]

  2. REMOVE METER HOOD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 23 [10/2018 - 08/2021] , or refer to PROCEDURE - Step 23 [08/2021 - 07/2022]

  3. REMOVE UPPER INSTRUMENT CLUSTER FINISH PANEL

    Refer to PROCEDURE - Step 35 [10/2018 - 08/2021] , or refer to PROCEDURE - Step 35 [08/2021 - 07/2022]

  4. REMOVE UPPER INSTRUMENT CENTER CLUSTER FINISH PANEL

    Refer to PROCEDURE - Step 36 [10/2018 - 08/2021] , or refer to PROCEDURE - Step 36 [08/2021 - 07/2022]

  5. REMOVE MULTI-DISPLAY

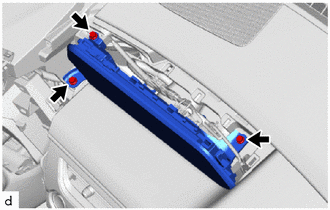

    1. Remove the 3 bolts.
      GTY803517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

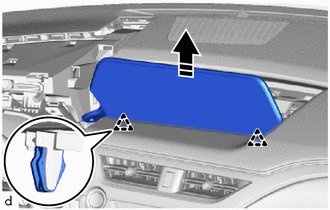

    2. Disengage the clips as shown in the illustration.
      GTY779723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

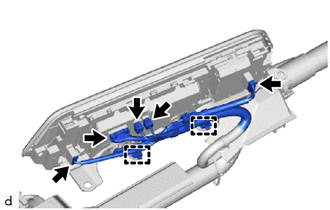

    3. Disengage the clamps.
      GTY803331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the 5 connectors to remove the multi-display.
