Installation [10/2017 - 09/2020]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL ENGINE HANGERS

    Refer to PROCEDURE - Step 71

  2. REMOVE ENGINE ASSEMBLY FROM ENGINE STAND
    1. Remove the engine assembly from the engine stand.
  3. INSTALL REAR ENGINE MOUNTING BRACKET (for 2WD)

    HINT:

    Perform this procedure only when replacement of the rear engine mounting insulator is necessary.

    1. Install the rear engine mounting bracket to the automatic transmission assembly with the 4 bolts.

      Torque: 40 N.m (408 kgf/cm, 30 ft.lbf)

  4. INSTALL REAR ENGINE MOUNTING INSULATOR (for 2WD)

    HINT:

    Perform this procedure only when replacement of the rear engine mounting insulator is necessary.

    1. Install the rear engine mounting insulator to the rear engine mounting bracket with the 4 nuts.

      Torque: 13 N.m (133 kgf/cm, 10 ft.lbf)

  5. INSTALL REAR NO. 1 ENGINE MOUNTING INSULATOR (for AWD)

    HINT:

    Only perform this procedure when replacement of the rear No. 1 engine mounting insulator is necessary.

    1. Install the rear No. 1 engine mounting insulator to the engine mounting bracket with the bolt.
      GTY662614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Paint Mark

      Torque: 69 N.m (704 kgf/cm, 51 ft.lbf)

      NOTE:

      Make sure to keep the engine mounting bracket and rear No. 1 engine mounting insulator aligned when removing the bolt to prevent damage to the rubber inside the rear No. 1 engine mounting insulator.

    2. Install the engine mounting bracket with the 3 bolts.

      Torque: 60 N.m (612 kgf/cm, 44 ft.lbf)

  6. INSTALL REAR ENGINE MOUNTING MEMBER

    HINT:

    Perform this procedure only when replacement of the rear engine mounting insulator is necessary.

    1. for 2WD:
      1. Install the rear engine mounting member to the rear engine mounting insulator with the 4 nuts.

        Torque: 13 N.m (133 kgf/cm, 10 ft.lbf)

    2. for AWD:
      1. Install the engine rear mounting member to the automatic transmission assembly with the 3 nuts.

        Torque: 38 N.m (387 kgf/cm, 28 ft.lbf)

  7. INSTALL FRONT ENGINE MOUNTING INSULATOR

    HINT:

    Perform this procedure only when replacement of the front engine mounting insulator is necessary.

    1. for 2WD:
      1. Install the 2 front engine mounting insulators to the front suspension crossmember sub-assembly with the 2 nuts.

        Torque: 70 N.m (714 kgf/cm, 52 ft.lbf)

    2. for AWD:
      1. Install the 2 front engine mounting insulators to the front suspension crossmember sub-assembly with the 4 nuts.

        Torque: 70 N.m (714 kgf/cm, 52 ft.lbf)

  8. INSTALL FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY (for 2WD)
    1. Install the front suspension crossmember sub-assembly to the engine assembly with the 2 bolts.

      Torque: 35 N.m (357 kgf/cm, 26 ft.lbf)

  9. INSTALL FRONT FRAME ASSEMBLY (for AWD)
    1. Install the front frame assembly to the engine assembly with the 2 bolts.

      Torque: 35 N.m (357 kgf/cm, 26 ft.lbf)

  10. INSTALL FRONT DIFFERENTIAL CARRIER ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 1

  11. INSTALL DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  12. INSTALL AUTOMATIC TRANSMISSION ASSEMBLY (for 2WD)

    Refer to PROCEDURE - Step 3

  13. INSTALL AUTOMATIC TRANSMISSION WITH TRANSFER ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 4

  14. INSTALL DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT

    for 2WD: Refer to PROCEDURE - Step 9

    for AWD: Refer to PROCEDURE - Step 10

  15. INSTALL FLYWHEEL HOUSING SIDE COVER

    for 2WD: Refer to PROCEDURE - Step 10

    for AWD: Refer to PROCEDURE - Step 11

  16. INSTALL STARTER ASSEMBLY

    Refer to PROCEDURE - Step 1

  17. INSTALL STARTER COVER

    Refer to PROCEDURE - Step 2

  18. INSTALL FRONT PROPELLER SHAFT ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 1

  19. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY LH (TWC: Front Catalyst)

    Refer to PROCEDURE - Step 2

  20. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH (TWC: Front Catalyst)

    Refer to PROCEDURE - Step 3

  21. INSTALL ENGINE UNDER COVER SUB-ASSEMBLY LH (for 2WD)
    1. Install the engine under cover sub-assembly LH with the 2 clamps.
  22. INSTALL ENGINE UNDER COVER SUB-ASSEMBLY RH (for 2WD)
    1. Install the engine under cover sub-assembly RH with the 2 clamps.
  23. INSTALL ENGINE OIL LEVEL DIPSTICK GUIDE
    1. Install a new O-ring to the engine oil level dipstick guide.

      HINT:

      Apply a light coat of engine oil to the O-ring.

    2. Install the engine oil level dipstick guide with the bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    3. for 2WD:
      1. Connect the clamp to the engine oil level dipstick guide.
  24. INSTALL NO. 2 ENGINE OIL LEVEL DIPSTICK GUIDE

    Refer to PROCEDURE - Step 4

  25. INSTALL ENGINE ASSEMBLY WITH TRANSMISSION (for 2WD)
    1. Set the engine assembly with transmission on the engine lifter.
      NOTE:
      • Using height adjustment attachments and plate lift attachments, place the engine assembly with transmission horizontally.
      • Do not perform any procedure while the engine assembly is suspended because doing so may cause the engine assembly to drop, resulting in injury. However, the engine assembly needs to be suspended when it is installed to or removed from an engine stand.
      • To prevent the oil pan from deforming, do not place any attachments under the oil pan of the engine assembly with transmission.
    2. Remove the 4 bolts, No. 1 engine hanger and No. 2 engine hanger.
    3. Install the engine assembly with transmission to the vehicle.
      NOTE:

      Make sure that the engine assembly with transmission is clear of all wiring, hoses and steering sliding with shaft yoke sub-assembly.

    4. Install the strut bar bracket reinforcement LH, strut bar bracket reinforcement RH and front suspension crossmember sub-assembly with the 6 bolts and 2 nuts.
      GTY830256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut

      Bolt (A)

      Torque: 194 N.m (1978 kgf/cm, 143 ft.lbf)

      Bolt (B)

      Torque: 57 N.m (581 kgf/cm, 42 ft.lbf)

      Nut

      Torque: 151 N.m (1540 kgf/cm, 111 ft.lbf)

    5. Install the front No. 2 stabilizer bracket LH and front No. 2 stabilizer bracket RH with the 4 bolts.

      Bolt (C)

      Torque: 49 N.m (500 kgf/cm, 36 ft.lbf)

    6. Install the rear engine mounting member to the body with the 4 bolts.

      Torque: 34.7 N.m (354 kgf/cm, 26 ft.lbf)

    7. Install the No. 2 earth wire to the body with the nut.

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

  26. INSTALL ENGINE ASSEMBLY WITH TRANSMISSION (for AWD)
    1. Set the engine assembly with transmission on the engine lifter.
      NOTE:
      • Using height adjustment attachments and plate lift attachments, place the engine assembly with transmission horizontally.
      • Do not perform any procedure while the engine assembly is suspended because doing so may cause the engine assembly to drop, resulting in injury. However, the engine assembly needs to be suspended when it is installed to or removed from an engine stand.
      • To prevent the oil pan from deforming, do not place any attachments under the oil pan of the engine assembly with transmission.
    2. Remove the 4 bolts, No. 1 engine hanger and No. 2 engine hanger.
    3. Install the engine assembly with transmission to the vehicle.
      NOTE:

      Make sure that the engine assembly with transmission is clear of all wiring, hoses and No. 2 steering intermediate shaft assembly.

    4. Install the strut bar bracket reinforcement LH, strut bar bracket reinforcement RH and front frame assembly with the 6 bolts and 2 nuts.
      GTY796494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut

      Bolt (A)

      Torque: 151 N.m (1540 kgf/cm, 111 ft.lbf)

      Bolt (B)

      Torque: 57 N.m (581 kgf/cm, 42 ft.lbf)

      Nut

      Torque: 151 N.m (1540 kgf/cm, 111 ft.lbf)

    5. Install the rear engine mounting member with the 4 bolts.

      Torque: 34.7 N.m (354 kgf/cm, 26 ft.lbf)

    6. Connect the No. 2 earth wire with the nut.

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

  27. INSTALL FRONT SUSPENSION MEMBER BRACE (for AWD)
    1. Install the 2 front suspension member braces with the 4 bolts.

      Torque: 50 N.m (510 kgf/cm, 37 ft.lbf)

  28. INSTALL FRONT LOWER SUSPENSION MEMBER PROTECTOR (for 2WD)
    1. Install the front lower suspension member protector to the front suspension crossmember sub-assembly with the 4 bolts.

      Torque: 5.5 N.m (56 kgf/cm, 49 in.lbf)

  29. INSTALL FRONT UPPER NO. 2 SUSPENSION MEMBER (for 2WD)
    1. Install the 2 front upper No. 2 suspension members with the 6 bolts.

      Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

  30. INSTALL NO. 2 FRAME CROSSMEMBER ASSEMBLY (for AWD)
    1. Install the No. 2 frame crossmember assembly with the 3 bolts.

      Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

  31. INSTALL NO. 1 FRAME CROSSMEMBER ASSEMBLY (for AWD)
    1. Install the No. 1 frame crossmember assembly with the 3 bolts.

      Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

  32. INSTALL SUSPENSION TOWER DAMPER (for 2WD)

    Refer to PROCEDURE - Step 1

  33. INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (for 2WD)

    Refer to PROCEDURE - Step 8

  34. INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 9

  35. CONNECT WIRE HARNESS
    1. for 2WD:
      1. Connect the connector (C) to the power steering link assembly and securely lock the connector.
        GTY824386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Front of Engine
      2. Connect the 2 connectors (A) and (B) to the power steering link assembly.
      3. Connect the 2 wire harness clamps to the bracket.
    2. for AWD:
      1. Connect the connector (C) to the power steering link assembly and securely lock the connector.
        GTY779473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Front of Engine
      2. Connect the 2 connectors (A) and (B) to the power steering link assembly.
      3. Connect the 2 wire harness clamps to the bracket.
      4. Connect the wire harness bracket with the bolt.

        Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  36. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH (for AWD)

    Refer to PROCEDURE - Step 2

  37. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH (for AWD)

    Refer to PROCEDURE - Step 3

  38. INSTALL FRONT LOWER BALL JOINT ASSEMBLY LH (for 2WD)

    Refer to PROCEDURE - Step 2

  39. INSTALL FRONT LOWER BALL JOINT ASSEMBLY RH (for 2WD)

    HINT:

    Perform the same procedure as for the LH side.

  40. INSTALL FRONT LOWER BALL JOINT ASSEMBLY LH (for AWD)

    Refer to PROCEDURE - Step 2

  41. INSTALL FRONT LOWER BALL JOINT ASSEMBLY RH (for AWD)

    HINT:

    Install the RH side following the same procedure as for the LH side.

  42. CONNECT FRONT SHOCK ABSORBER ASSEMBLY LH (for 2WD)
    1. Connect the front shock absorber assembly LH to the front suspension lower arm assembly LH with the bolt and nut.

      Torque: 108 N.m (1101 kgf/cm, 80 ft.lbf)

      NOTE:
      • Insert the bolt from the rear of the vehicle.
      • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
  43. CONNECT FRONT SHOCK ABSORBER ASSEMBLY RH (for 2WD)

    HINT:

    Perform the same procedure as for the LH side.

  44. CONNECT FRONT SHOCK ABSORBER ASSEMBLY LH (for AWD)
    1. Connect the front shock absorber assembly LH and front absorber bracket. Then install the bolt.

      Torque: 48 N.m (489 kgf/cm, 35 ft.lbf)

  45. CONNECT FRONT SHOCK ABSORBER ASSEMBLY RH (for AWD)

    HINT:

    Install the RH side following the same procedure as for the LH side.

  46. CONNECT TIE ROD ASSEMBLY LH (for AWD)

    Refer to PROCEDURE - Step 6

  47. CONNECT TIE ROD ASSEMBLY RH (for AWD)

    HINT:

    Install the RH side following the same procedure as for the LH side.

  48. INSTALL FRONT DISC (for AWD)

    Refer to PROCEDURE - Step 1

  49. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 7

  50. INSTALL FRONT AXLE SHAFT NUT LH (for AWD)

    Refer to PROCEDURE - Step 12

  51. INSTALL FRONT AXLE SHAFT NUT RH (for AWD)

    HINT:

    Install the RH side following the same procedure as for the LH side.

  52. CONNECT FRONT SPEED SENSOR LH (for AWD)

    Refer to PROCEDURE - Step 14

  53. CONNECT FRONT SPEED SENSOR RH (for AWD)

    HINT:

    Install the RH side following the same procedure as for the LH side.

  54. INSTALL STEERING SLIDING WITH SHAFT YOKE SUB-ASSEMBLY (for 2WD)

    Refer to PROCEDURE - Step 8

  55. INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 9

  56. INSTALL NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  57. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for 2WD)

    Refer to INSTALLATION [04/2013 - ]

  58. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for AWD)

    Refer to INSTALLATION [04/2013 - ]

  59. CONNECT NO. 2 FUEL TUBE SUB-ASSEMBLY
    1. Connect the No. 2 fuel tube sub-assembly.

      Refer to PRECAUTION [10/2017 - 09/2020]

    2. Install the fuel pipe clamp.
  60. CONNECT FUEL TUBE SUB-ASSEMBLY
    1. Connect the fuel tube sub-assembly to the fuel pipe.

      Refer to PRECAUTION [10/2017 - 09/2020]

    2. Install the fuel pipe clamp.
  61. CONNECT WIRE HARNESS
    1. Engine room LH side:
      1. Connect the ECM connector and lower the lever.
        NOTE:
        • When connecting a connector, make sure that dirt, water and other foreign matter is not stuck between the connector and ECM.
        • Make sure that the lever is securely lowered.
      2. Connect the clamp.
        GTY835282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Engage the 3 claws and connect the No. 4 engine wire to the No. 1 engine room relay block and No. 1 junction block assembly.
      4. Connect the 3 connectors to the No. 2 connector holder.
        GTY811687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engine room RH side:
      1. Connect the No. 3 engine wire to the body with the bolt.
        GTY811679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Type A

        Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

        Type B

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

        NOTE:

        There are two types of bolts and the tightening torque depends on the type of bolt used as shown in the illustration. Therefore, confirm the tightening torque before installing the bolt.

        GTY948812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A Type A
        *B Type B
      2. Engage the clamp.
      3. Engage the 2 claws and connect the No. 4 engine wire to the No. 1 engine room relay block and No. 1 junction block assembly.
        GTY825742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Install the nut to the No. 1 engine room relay block and No. 1 junction block assembly.

        Torque: 10.5 N.m (107 kgf/cm, 8 ft.lbf)

      5. Connect the 2 No. 4 engine wire clamps.
      6. Install the No. 1 engine room relay block cover to the No. 1 engine room relay block and No. 1 junction block assembly.
      7. Connect the clamp.
      8. Connect the No. 2 engine wire to the positive (+) battery terminal with the nut.

        Torque: 7.6 N.m (77 kgf/cm, 67 in.lbf)

  62. INSTALL ENGINE ROOM ECU COVER

    Refer to PROCEDURE - Step 4

  63. CONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE

    for 2WD: Refer to PROCEDURE - Step 6

    for AWD: Refer to PROCEDURE - Step 7

  64. CONNECT SUCTION HOSE

    for 2WD: Refer to PROCEDURE - Step 4

    for AWD: Refer to PROCEDURE - Step 6

  65. CONNECT OUTLET HEATER WATER HOSE A
    1. Connect the outlet heater water hose A to the No. 2 water by-pass pipe and slide the clip to secure it.
      GTY815582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the water hose set.
  66. CONNECT INLET HEATER WATER HOSE A
    1. Connect the inlet heater water hose A to the No. 2 water by-pass pipe and slide the clip to secure it.
      GTY835397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the water hose set.
  67. CONNECT NO. 2 RADIATOR HOSE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  68. CONNECT NO. 1 RADIATOR HOSE
    1. Connect the No. 1 radiator hose to the water inlet and slide the clip to secure it.
  69. CONNECT NO. 1 FUEL VAPOR FEED HOSE
    1. Connect the No. 1 fuel vapor feed hose to the purge valve (purge VSV) and slide the clip to secure it.
  70. CONNECT UNION TO CONNECTOR TUBE HOSE
    1. Connect the union to connector tube hose and slide the clip to secure it.
  71. INSTALL AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

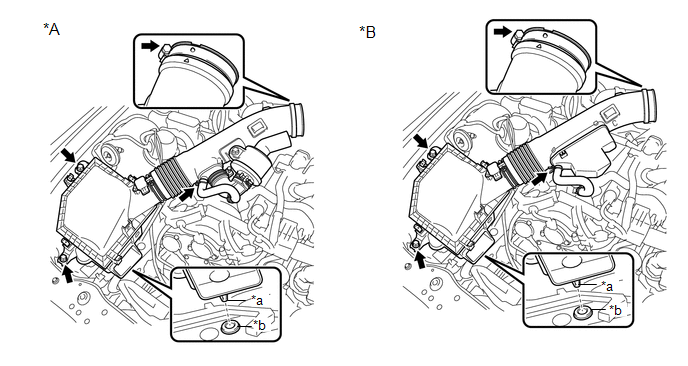

    1. Connect the air cleaner assembly with air cleaner hose to the throttle body with motor assembly.
      GTY816209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Intake Air Sound Creator *B w/o Intake Air Sound Creator
      *a Pin *b Air Cleaner Support
    2. Fit the pin of the air cleaner assembly with air cleaner hose into the air cleaner support as shown in the illustration.
    3. Tighten the hose clamp.

      Torque: 4.0 N.m (41 kgf/cm, 35 in.lbf)

      NOTE:

      Fit the protrusion on the air cleaner hose into the hole of the hose clamp on the throttle body with motor assembly side.

    4. Connect the No. 2 ventilation hose to the air cleaner assembly with air cleaner hose.
    5. Install the 2 bolts.

      Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)

    6. Engage the clamp to connect the No. 1 fuel vapor feed hose to the air cleaner cap with air cleaner hose.
    7. Connect the 2 wire harness clamps to the air cleaner assembly with air cleaner hose.
    8. Connect the mass air flow meter sub-assembly connector.
  72. INSTALL AIR CLEANER CASE SUB-ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the air cleaner case sub-assembly is necessary.

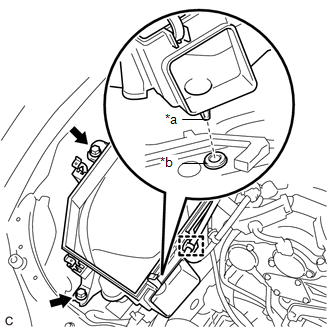

    1. Fit the pin of the air cleaner case sub-assembly into the air cleaner support as shown in the illustration.
      GTY787188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Pin
      *b Air Cleaner Support
    2. Install the air cleaner case sub-assembly with the 2 bolts.

      Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)

    3. Install the wire harness clamp to the air cleaner case sub-assembly.
  73. INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the air cleaner filter element sub-assembly is necessary.

    1. Install the air cleaner filter element sub-assembly to the air cleaner case sub-assembly.
  74. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE

    HINT:

    Perform this procedure only when replacement of the air cleaner filter element sub-assembly or air cleaner case sub-assembly is necessary.

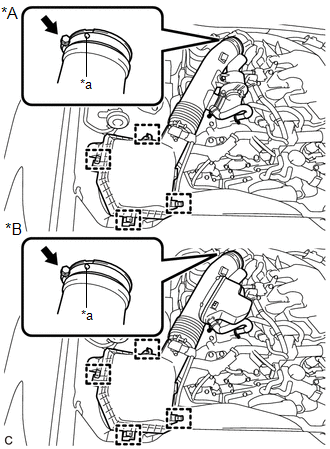

    1. Connect the air cleaner cap with air cleaner hose to the throttle body with motor assembly.
    2. Install the air cleaner cap with air cleaner hose with the 4 clamps.
      GTY794810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Intake Air Sound Creator
      *B w/o Intake Air Sound Creator
      *a Protrusion
    3. Tighten the hose clamp.

      Torque: 4.0 N.m (41 kgf/cm, 35 in.lbf)

      NOTE:

      Fit the protrusion on the air cleaner hose into the hole of the hose clamp on the throttle body with motor assembly side.

    4. Engage the clamp to connect the No. 1 fuel vapor feed hose to the air cleaner cap with air cleaner hose.
    5. Connect the wire harness clamp to the air cleaner cap with air cleaner hose.
    6. Connect the mass air flow meter sub-assembly connector.
  75. INSTALL INLET NO. 1 AIR CLEANER
    1. Install the inlet No. 1 air cleaner with the bolt.

      Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)

  76. ADD ENGINE OIL

    Refer to PROCEDURE - Step 7

  77. ADD DIFFERENTIAL OIL (for AWD)

    Refer to PROCEDURE - Step 2

  78. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [10/2017 - 09/2020]

  79. ADD ENGINE COOLANT

    Refer to PROCEDURE - Step 3

  80. ADD AUTOMATIC TRANSMISSION FLUID (for 2WD)

    Refer to ADJUSTMENT [10/2017 - 09/2020]

  81. ADD AUTOMATIC TRANSMISSION FLUID (for AWD)

    Refer to ADJUSTMENT [10/2017 - 09/2020]

  82. INSPECT FOR REFRIGERANT

    Refer to PROCEDURE - Step 2

  83. INSPECT SHIFT LEVER POSITION

    for 2WD: Refer to PROCEDURE - Step 1

    for AWD: Refer to PROCEDURE - Step 1

  84. ADJUST SHIFT LEVER POSITION

    for 2WD: Refer to PROCEDURE - Step 4

    for AWD: Refer to PROCEDURE - Step 3

  85. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1

  86. INSPECT FOR ENGINE OIL LEAK

    Refer to PROCEDURE - Step 8

  87. INSPECT FOR FUEL LEAK

    Refer to ON-VEHICLE INSPECTION [10/2017 - ]

  88. INSPECT FOR EXHAUST GAS LEAK

    Refer to PROCEDURE - Step 9

  89. INSPECT FOR REFRIGERANT LEAK

    Refer to PROCEDURE - Step 4

  90. INSTALL FRONT WHEELS

    Torque: 103 N.m (1050 kgf/cm, 76 ft.lbf)

  91. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  92. CHECK AND ADJUST FRONT WHEEL ALIGNMENT

    Refer to ADJUSTMENT [10/2016 - 09/2020]

  93. PERFORM INITIALIZATION

    Refer to INITIALIZATION [10/2017 - 09/2020]

  94. INSPECT THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 1

  95. INSPECT IGNITION TIMING

    Refer to PROCEDURE - Step 8

  96. INSPECT ENGINE IDLE SPEED

    Refer to PROCEDURE - Step 9

  97. INSPECT CO/HC

    Refer to PROCEDURE - Step 11

  98. INSPECT ENGINE COOLANT LEVEL IN RESERVOIR

    Refer to PROCEDURE - Step 2

  99. INSPECT ENGINE OIL LEVEL

    Refer to PROCEDURE - Step 1

  100. INSTALL FRONT SUSPENSION MEMBER BRACE (for 2WD)
    1. Install the front suspension member brace with the clip and 6 bolts.

      Torque: 52 N.m (530 kgf/cm, 38 ft.lbf)

  101. INSTALL REAR ENGINE UNDER COVER LH
    1. Install the rear engine under cover LH with the screw.
  102. INSTALL REAR ENGINE UNDER COVER RH
    1. Install the rear engine under cover RH with the screw.
  103. INSTALL ENGINE UNDER COVER
    1. for 2WD
      1. Install the engine under cover with the 13 screws and 3 clips.
    2. for 4WD
      1. Install the engine under cover with the 10 screws and 3 clips.
  104. INSTALL V-BANK COVER SUB-ASSEMBLY
    1. Attach the 3 clips in the order shown in the illustration to install the V-bank cover sub-assembly.
      Fig 1: Attaching V-Bank Cover Sub-Assembly Clips In Sequence
      GTY817049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Tip (Round Portion)
      NOTE:
      • Securely attach the clips.
      • If the clips are forcibly attached or struck with an object, they may be damaged.
      • Do not apply any oil to the tips (round portions).
  105. INSTALL COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 2

scientia non olet · About LEMON Manuals
