Replacement [08/2015 - 09/2020]: Procedure

1. Remove the 2 bolts and separate the front disc brake caliper assembly from the steering knuckle.
   NOTE:

   Use wire or an equivalent tool to keep the front disc brake caliper assembly from hanging by the front flexible hose.

Refer to PROCEDURE - Step 7

1. Temporarily install 2 service nuts to the front axle hub bolts as shown in the illustration.

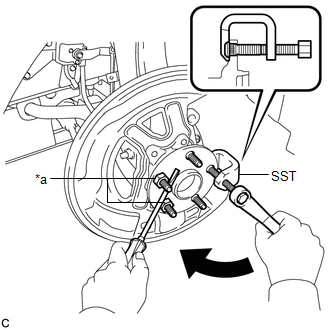

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Service Nut

   Recommended Service Nut

   Thread diameter: 12.0 mm (0.472 in.)

   Thread pitch: 1.5 mm (0.0591 in.)

   NOTE:

   Install the service nuts to prevent damage to the front axle hub bolts.

2. Using SST and a screwdriver or an equivalent tool to hold the front axle hub, remove the front axle hub bolt.
   • SST: 09611-12010
   NOTE:

   Do not damage the threads of the front axle hub bolts.

1. Temporarily install a new front axle hub bolt to the front axle hub.
2. Install a washer and service nut to the new front axle hub bolt as shown in the illustration.

   Recommended Service Nut

   Thread diameter: 12.0 mm (0.472 in.)

   Thread pitch: 1.5 mm (0.0591 in.)

   HINT:

   Recommended washer thickness is 5 mm (0.197 in.) or more.

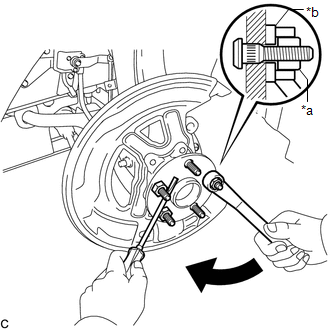

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Service Nut
   *b	Washer

3. Using a screwdriver or an equivalent tool to hold the front axle hub, install the front axle hub bolt by tightening the service nut.
   NOTE:

   • Install the service nuts to prevent damage to the front axle hub bolts.
   • Do not damage the threads of the front axle hub bolts.
4. Remove the 3 service nuts and washer from the 3 front axle hub bolts.

Refer to PROCEDURE - Step 1

1. Install the front disc brake caliper assembly to the steering knuckle with the 2 bolts.

   Torque: 135 N.m (1377 kgf/cm, 100 ft.lbf)

   NOTE:

   Do not twist the front flexible hose when installing the front disc brake caliper assembly.

Torque: 103 N.m (1050 kgf/cm, 76 ft.lbf)
