Adjustment [10/2017 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE FRONT EXHAUST PIPE ASSEMBLY (for 2GR-FKS)
Refer to REMOVAL [10/2017 - 09/2020] , or refer to REMOVAL [09/2020 - ]
- REMOVE FRONT EXHAUST PIPE ASSEMBLY (for 8AR-FTS)
Refer to REMOVAL [10/2016 - 09/2020] , or refer to REMOVAL [09/2020 - ]
- REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR
Refer to PROCEDURE - Step 3
- ADJUST SHIFT LEVER POSITION
- Move the shift lever to N.
- Remove the nut and separate the floor shift gear shifting rod sub-assembly from the lever of the transmission floor shift assembly.
*a Lever - Turn the transmission control shaft lever RH counterclockwise until it stops, then turn it clockwise 2 notches.
*1 Transmission Control Shaft Lever RH *a P *b R *c N - Temporarily install the floor shift gear shifting rod sub-assembly to the lever of the transmission floor shift assembly with the nut.

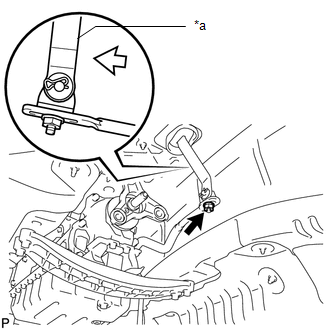

*a Lever Pushing the lever rearward - Tighten the nut while lightly pushing the lever of the transmission floor shift assembly rearward.
Torque: 12.8 N*m (131 kgf*cm, 9 ft.*lbf)
NOTE:Do not push the lever of the transmission floor shift assembly too hard.
- INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR
Refer to PROCEDURE - Step 5
- INSTALL FRONT EXHAUST PIPE ASSEMBLY (for 2GR-FKS)
Refer to INSTALLATION [10/2017 - 09/2020] , or refer to INSTALLATION [09/2020 - ]
- INSTALL FRONT EXHAUST PIPE ASSEMBLY (for 8AR-FTS)
Refer to INSTALLATION [10/2016 - 09/2020] , or refer to INSTALLATION [09/2020 - ]
- INSPECT SHIFT LEVER POSITION
See step 1
- INSPECT FOR EXHAUST GAS LEAK (for 2GR-FKS)
Refer to INSTALLATION [10/2017 - 09/2020] , or refer to INSTALLATION [09/2020 - ]
- INSPECT FOR EXHAUST GAS LEAK (for 8AR-FTS)
Refer to PROCEDURE - Step 8 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 8 [09/2020 - ]
