Removal [10/2017 - 09/2020]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [10/2017 - 09/2020]

  2. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1

  3. REMOVE V-BANK COVER SUB-ASSEMBLY
    1. Hold the rear area of the V-bank cover sub-assembly shown in the illustration and detach the rear clip (1).
      GTY830367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Areas to be held when lifting the V-bank cover sub-assembly
      Front of Engine
      NOTE:

      If the V-bank cover sub-assembly is lifted rearward or forward and to the right or left at the same time, the V-bank cover sub-assembly may be damaged.

    2. Hold both sides of the V-bank cover sub-assembly and lift it to detach the 2 front clips (2) and (3) to remove the V-bank cover sub-assembly.
  4. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    Refer to PROCEDURE - Step 1

  5. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PRECAUTION [10/2017 - 09/2020]

  6. PLACE FRONT WHEELS FACING STRAIGHT AHEAD

    Refer to ADJUSTMENT [10/2016 - 09/2020]

  7. SECURE STEERING WHEEL

    Refer to REMOVAL [10/2017 - 09/2020]

  8. REMOVE FRONT WHEELS
  9. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [10/2017 - 09/2020]

  10. REMOVE ENGINE UNDER COVER
    1. for 2WD:
      1. Remove the 13 screws, 3 clips and engine under cover.
        GTY791883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A for 2WD
        *B for AWD
    2. for AWD:
      1. Remove the 10 screws, 3 clips and engine under cover.
  11. REMOVE REAR ENGINE UNDER COVER LH
    1. Remove the screw and rear engine under cover LH.
      GTY811714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE REAR ENGINE UNDER COVER RH
    1. Remove the screw and rear engine under cover RH.
      GTY811713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE FRONT SUSPENSION MEMBER BRACE (for 2WD)
    1. Remove the 6 bolts, turn the clip to loosen it, and remove the front suspension member brace.

      HINT:

      Do not remove the clip from the front suspension member brace.

      GTY794409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 1

  15. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 2

  16. DRAIN DIFFERENTIAL OIL (for AWD)

    Refer to PROCEDURE - Step 1

  17. DRAIN AUTOMATIC TRANSMISSION FLUID

    Refer to PROCEDURE - Step 2

  18. REMOVE INLET NO. 1 AIR CLEANER

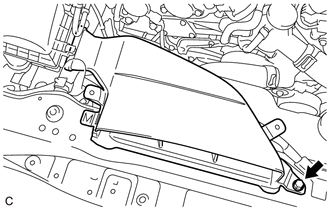

    1. Remove the bolt and inlet No. 1 air cleaner.
      GTY835289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    HINT:

    Perform this procedure only when replacement of the air cleaner filter element sub-assembly or air cleaner case sub-assembly is necessary.

    1. Slide the clip and disconnect the No. 2 ventilation hose.
      GTY823163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Intake Air Sound Creator
      *B w/o Intake Air Sound Creator
    2. Disconnect the mass air flow meter sub-assembly connector.
      GTY825729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the wire harness clamp from the air cleaner cap with air cleaner hose.
    4. Disengage the clamp to disconnect the No. 1 fuel vapor feed hose from the air cleaner assembly with air cleaner hose.
      GTY833406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

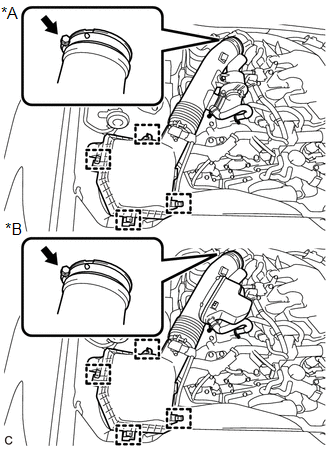

    5. Release the 4 clamps.
      GTY794812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Intake Air Sound Creator
      *B w/o Intake Air Sound Creator
    6. Loosen the hose clamp and remove the air cleaner cap with air cleaner hose from the throttle body with motor assembly.
  20. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the air cleaner filter element sub-assembly is necessary.

    1. Remove the air cleaner filter element sub-assembly from the air cleaner case sub-assembly.
  21. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the air cleaner case sub-assembly is necessary.

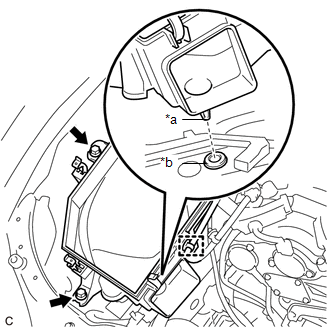

    1. Disconnect the wire harness clamp from the air cleaner case sub-assembly.
      GTY787173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Pin
      *b Air Cleaner Support
    2. Remove the 2 bolts and air cleaner case sub-assembly.
      NOTE:

      Make sure the air cleaner support is attached to the vehicle body.

  22. REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

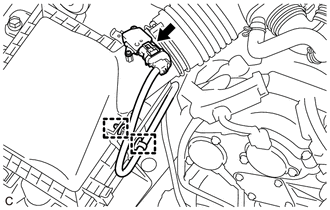

    1. Disconnect the mass air flow meter sub-assembly connector.
      GTY835287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 2 wire harness clamps from the air cleaner assembly with air cleaner hose.
    3. Disengage the clamp to disconnect the No. 1 fuel vapor feed hose from the air cleaner assembly with air cleaner hose.
      GTY811707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 bolts.
      GTY816209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Intake Air Sound Creator *B w/o Intake Air Sound Creator
      *a Pin *b Air Cleaner Support
    5. Slide the clip and disconnect the No. 2 ventilation hose from the air cleaner assembly with air cleaner hose.
    6. Loosen the hose clamp and remove the air cleaner assembly with air cleaner hose.
      NOTE:

      Make sure the air cleaner support is attached to the vehicle body.

  23. DISCONNECT UNION TO CONNECTOR TUBE HOSE
    1. Slide the clip and disconnect the union to connector tube hose.
      GTY643614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. DISCONNECT NO. 1 FUEL VAPOR FEED HOSE
    1. GTY811695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Slide the clip and disconnect the No. 1 fuel vapor feed hose from the purge valve (purge VSV).

  25. DISCONNECT NO. 1 RADIATOR HOSE
    1. Slide the clip and disconnect the No. 1 radiator hose from the water inlet.
      GTY811696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. DISCONNECT NO. 2 RADIATOR HOSE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  27. DISCONNECT INLET HEATER WATER HOSE A
    1. Remove the water hose set.
      GTY811693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the clip and disconnect the inlet heater water hose A from the No. 2 water by-pass pipe.
      GTY835284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. DISCONNECT OUTLET HEATER WATER HOSE A
    1. Remove the water hose set.
      GTY811699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the clip and disconnect the outlet heater water hose A from the No. 2 water by-pass pipe.
      GTY835286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. DISCONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE

    for 2WD: Refer to PROCEDURE - Step 5

    for AWD: Refer to PROCEDURE - Step 5

  30. DISCONNECT SUCTION HOSE

    for 2WD: Refer to PROCEDURE - Step 7

    for AWD: Refer to PROCEDURE - Step 6

  31. REMOVE ENGINE ROOM ECU COVER

    Refer to PROCEDURE - Step 2

  32. DISCONNECT WIRE HARNESS

    HINT:

    After disconnecting the wire harness, secure it with tape or equivalent to keep it out of the way.

    1. Engine room LH side:
      1. Disconnect the 3 connectors from the No. 2 connector holder.
        GTY811687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Detach the clamp and 3 claws, and then disconnect the No. 2 connector holder.
        GTY835282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Disengage the lock, pull up the lever and disconnect the ECM connector.
        GTY811685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engine room RH side:
      1. Disconnect the clamp.
        GTY643628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the nut and disconnect the No. 2 engine wire from the positive (+) battery terminal.
      3. Remove the No. 1 engine room relay block cover from the No. 1 engine room relay block and No. 1 junction block assembly.
      4. Disconnect the 2 No. 4 engine wire clamps.
        GTY825742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Remove the nut from the No. 1 engine room relay block and No. 1 junction block assembly.
      6. Disengage the 2 claws and disconnect the No. 4 engine wire from the No. 1 engine room relay block and No. 1 junction block assembly.
      7. Disconnect the clamp.
        GTY811679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      8. Remove the bolt and disconnect the No. 3 engine wire from the body.
  33. DISCONNECT FUEL TUBE SUB-ASSEMBLY
    1. Remove the fuel pipe clamp.
      GTY811676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the fuel tube sub-assembly from the fuel pipe.
      GTY835280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Refer to PRECAUTION [10/2017 - 09/2020]

  34. DISCONNECT NO. 2 FUEL TUBE SUB-ASSEMBLY
    1. Remove the fuel pipe clamp as shown in the illustration.
      GTY665010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the No. 2 fuel tube sub-assembly from the fuel pipe.

      Refer to PRECAUTION [10/2017 - 09/2020]

  35. REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for 2WD)

    Refer to REMOVAL [04/2013 - ]

  36. REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for AWD)

    Refer to REMOVAL [04/2013 - ]

  37. REMOVE NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  38. SEPARATE STEERING SLIDING WITH SHAFT YOKE SUB-ASSEMBLY (for 2WD)

    Refer to PROCEDURE - Step 13

  39. SEPARATE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 14

  40. REMOVE FRONT AXLE SHAFT NUT LH (for AWD)

    Refer to PROCEDURE - Step 4

  41. REMOVE FRONT AXLE SHAFT NUT RH (for AWD)

    HINT:

    Perform the same procedure as for the LH side.

  42. SEPARATE FRONT SPEED SENSOR LH (for AWD)

    Refer to PROCEDURE - Step 3

  43. SEPARATE FRONT SPEED SENSOR RH (for AWD)

    HINT:

    Perform the same procedure as for the LH side.

  44. SEPARATE FRONT DISC BRAKE CALIPER ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 2

  45. REMOVE FRONT DISC (for AWD)

    Refer to PROCEDURE - Step 7

  46. SEPARATE TIE ROD ASSEMBLY LH (for AWD)

    Refer to PROCEDURE - Step 17

  47. SEPARATE TIE ROD ASSEMBLY RH (for AWD)

    HINT:

    Perform the same procedure as for the LH side.

  48. DISCONNECT FRONT SHOCK ABSORBER ASSEMBLY LH (for 2WD)
    1. Remove the bolt and nut, and disconnect the front shock absorber assembly LH from the front suspension lower arm assembly LH.
      GTY467041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      When removing the bolt, keep the nut from rotating.

  49. DISCONNECT FRONT SHOCK ABSORBER ASSEMBLY RH (for 2WD)

    HINT:

    Perform the same procedure as for the LH side.

  50. DISCONNECT FRONT SHOCK ABSORBER ASSEMBLY LH (for AWD)
    1. Remove the bolt. Then disconnect the front shock absorber assembly LH and front absorber bracket.
      GTY415241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Support the steering knuckle using a rubber attachment or other similar object to prevent excessive force from being applied to the flexible hose.

  51. DISCONNECT FRONT SHOCK ABSORBER ASSEMBLY RH (for AWD)

    HINT:

    Remove the RH side following the same procedure as for the LH side.

  52. SEPARATE FRONT LOWER BALL JOINT ASSEMBLY LH (for 2WD)

    Refer to PROCEDURE - Step 10

  53. SEPARATE FRONT LOWER BALL JOINT ASSEMBLY RH (for 2WD)

    HINT:

    Perform the same procedure as for the LH side.

  54. SEPARATE FRONT LOWER BALL JOINT ASSEMBLY LH (for AWD)

    Refer to PROCEDURE - Step 11

  55. SEPARATE FRONT LOWER BALL JOINT ASSEMBLY RH (for AWD)

    HINT:

    Remove the RH side following the same procedure as for the LH side.

  56. SEPARATE FRONT DRIVE SHAFT ASSEMBLY LH (for AWD)

    Refer to PROCEDURE - Step 8

  57. SEPARATE FRONT DRIVE SHAFT ASSEMBLY RH (for AWD)

    HINT:

    Perform the same procedure as for the LH side.

  58. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH (for AWD)

    Refer to PROCEDURE - Step 9

  59. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH (for AWD)

    Refer to PROCEDURE - Step 10

  60. DISCONNECT WIRE HARNESS
    1. for 2WD:
      1. Disconnect the 2 wire harness clamps from the bracket.
        GTY799088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the 2 connectors (A) and (B) from the power steering link assembly.
      3. Release the lock of connector (C) and disconnect the connector from the power steering link assembly.
    2. for AWD:
      1. Remove the bolt and disconnect the bracket from the front frame assembly.
        GTY803109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the 2 wire harness clamps from the front frame assembly.
      3. Disconnect the 2 connectors (A) and (B) from the power steering link assembly.
      4. Release the lock of connector (C) and disconnect the connector from the power steering link assembly.
  61. REMOVE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (for 2WD)

    Refer to PROCEDURE - Step 12

  62. REMOVE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 10

  63. REMOVE SUSPENSION TOWER DAMPER (for 2WD)

    Refer to PROCEDURE - Step 2

  64. REMOVE FRONT UPPER NO. 2 SUSPENSION MEMBER (for 2WD)
    1. Remove the 6 bolts and 2 front upper No. 2 suspension members.
      GTY812770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  65. REMOVE NO. 1 FRAME CROSSMEMBER ASSEMBLY (for AWD)
    1. Remove the 3 bolts and No. 1 frame crossmember assembly.
      GTY395560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  66. REMOVE NO. 2 FRAME CROSSMEMBER ASSEMBLY (for AWD)
    1. Remove the 3 bolts and No. 2 frame crossmember assembly.
      GTY395562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  67. REMOVE FRONT LOWER SUSPENSION MEMBER PROTECTOR (for 2WD)
    1. Remove the 4 bolts and front lower suspension member protector from the front suspension crossmember sub-assembly.
      GTY812771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  68. REMOVE FRONT SUSPENSION MEMBER BRACE (for AWD)
    1. Remove the 4 bolts and front suspension member brace.
      GTY812941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  69. REMOVE ENGINE ASSEMBLY WITH TRANSMISSION (for 2WD)
    1. Remove the nut and disconnect the No. 2 earth wire from the body.
      GTY466924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Place height adjustment attachments and plate lift attachments in the positions shown in the illustration and set an engine lifter underneath the engine assembly with transmission.
      GTY778813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Attachment Installation Position
      NOTE:
      • Using height adjustment attachments and plate lift attachments, place the engine assembly with transmission horizontally.
      • Securely support the engine assembly to prevent it from turning upside down until it is secured to an engine stand.
      • To prevent the oil pan from deforming, do not place any attachments under the oil pan of the engine assembly with transmission.
      • Do not perform any procedure while the engine assembly is suspended because doing so may cause the engine assembly to drop, resulting in injury. However, the engine assembly needs to be suspended when it is installed to or removed from an engine stand.
    3. Remove the 4 bolts, and separate the rear engine mounting member from the body.
      GTY466923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 4 bolts and disconnect the front No. 2 stabilizer bracket LH and front No. 2 stabilizer bracket RH.
      GTY788724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
    5. Remove the 6 bolts, 2 nuts and strut bar bracket reinforcement LH, strut bar bracket reinforcement RH and front suspension crossmember sub-assembly.
    6. Operate the engine lifter, then remove the engine assembly with transmission from the vehicle.
      NOTE:
      • Make sure that the engine assembly with transmission is clear of all the wiring, hoses and steering sliding with shaft yoke sub-assembly.
      • After removing the engine assembly with transmission, hang the steering sliding with shaft yoke sub-assembly with rope or equivalent.
  70. REMOVE ENGINE ASSEMBLY WITH TRANSMISSION (for AWD)
    1. Remove the nut and disconnect the No. 2 earth wire.
      GTY395818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Place height adjustment attachments and plate lift attachments in the positions shown in the illustration and set an engine lifter underneath the engine assembly with transmission.
      GTY815602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Attachment Installation Position
      NOTE:
      • Using height adjustment attachments and plate lift attachments, place the engine assembly with transmission horizontally.
      • Securely support the engine assembly to prevent it from turning upside down until it is secured to an engine stand.
      • To prevent the oil pan from deforming, do not place any attachments under the oil pan of the engine assembly with transmission.
      • Do not perform any procedure while the engine assembly is suspended because doing so may cause the engine assembly to drop, resulting in injury. However, the engine assembly needs to be suspended when it is installed to or removed from an engine stand.
    3. Remove the 4 bolts, then separate the rear engine mounting member.
      GTY637423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 6 bolts, 2 nuts and strut bar bracket reinforcement LH, strut bar bracket reinforcement RH and front frame assembly.
      GTY796492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
    5. Operate the engine lifter, then remove the engine assembly with transmission from the vehicle.
      NOTE:
      • Make sure that the engine assembly with transmission is clear of all the wiring, hoses and No. 2 steering intermediate shaft assembly.
      • After removing the engine assembly with transmission, hang the No. 2 steering intermediate shaft assembly with rope or equivalent.
  71. INSTALL ENGINE HANGERS
    1. Install the No. 1 engine hanger and No. 2 engine hanger with the 4 bolts as shown in the illustration.
      GTY793911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a No. 1 Engine Hanger
      *b No. 2 Engine Hanger

      Torque: 33 N.m (337 kgf/cm, 24 ft.lbf)

      HINT:

      No. 1 Engine Hanger 12281 - 31070
      No. 2 Engine Hanger 12282 - 31160
      12282 - 31161
      Bolt 91671-10825
    2. Attach an engine sling device and hang the engine assembly with a chain block.
      NOTE:
      • Pay attention to the angle of the sling device as the engine assembly or No. 1 engine hanger and No. 2 engine hanger may be damaged or deformed if the angle is incorrect.
      • Do not perform any procedure while the engine assembly is suspended because doing so may cause the engine assembly to drop, resulting in injury. However, the engine assembly needs to be suspended when it is installed to or removed from an engine stand.
  72. REMOVE NO. 2 ENGINE OIL LEVEL DIPSTICK GUIDE

    Refer to PROCEDURE - Step 10

  73. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE
    1. for 2WD:
      1. Disconnect the clamp from the engine oil level dipstick guide.
        GTY792709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A for 2WD
        *B for AWD
    2. Remove the bolt and engine oil level dipstick guide.
    3. Remove the O-ring from the engine oil level dipstick guide.
  74. REMOVE ENGINE UNDER COVER SUB-ASSEMBLY LH (for 2WD)
    1. Remove the 2 clamps and engine under cover sub-assembly LH.
      GTY825747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  75. REMOVE ENGINE UNDER COVER SUB-ASSEMBLY RH (for 2WD)
    1. Remove the 2 clamps and engine under cover sub-assembly RH.
      GTY825745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  76. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY LH (TWC: Front Catalyst)

    Refer to PROCEDURE - Step 11

  77. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH (TWC: Front Catalyst)

    Refer to PROCEDURE - Step 12

  78. REMOVE FRONT PROPELLER SHAFT ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 3

  79. REMOVE STARTER COVER

    Refer to PROCEDURE - Step 4

  80. REMOVE STARTER ASSEMBLY

    Refer to PROCEDURE - Step 5

  81. REMOVE FLYWHEEL HOUSING SIDE COVER

    for 2WD: Refer to PROCEDURE - Step 10

    for AWD: Refer to PROCEDURE - Step 8

  82. REMOVE DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT

    for 2WD: Refer to PROCEDURE - Step 11

    for AWD: Refer to PROCEDURE - Step 9

  83. REMOVE AUTOMATIC TRANSMISSION ASSEMBLY (for 2WD)

    Refer to PROCEDURE - Step 18

  84. REMOVE AUTOMATIC TRANSMISSION WITH TRANSFER ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 16

  85. REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

    See step  2

  86. REMOVE FRONT DIFFERENTIAL CARRIER ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 2

  87. REMOVE FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY (for 2WD)
    1. Remove the 2 bolts and front suspension crossmember sub-assembly from the engine assembly.
      GTY789375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a LH Side
      *b RH Side
  88. REMOVE FRONT FRAME ASSEMBLY (for AWD)
    1. Remove the 2 bolts, then separate the front frame assembly from the engine.
      GTY826490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a LH Side
      *b RH Side
  89. REMOVE FRONT ENGINE MOUNTING INSULATOR

    HINT:

    Perform this procedure only when replacement of the front engine mounting insulator is necessary.

    1. for 2WD:
      1. Remove the 2 nuts and 2 front engine mounting insulators from the front suspension crossmember sub-assembly.
        GTY802179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a LH Side
        *b RH Side
    2. for AWD:
      1. Remove the 4 nuts and 2 front engine mounting insulators from the front frame assembly.
        GTY828314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a LH Side
        *b RH Side
  90. REMOVE REAR ENGINE MOUNTING MEMBER

    HINT:

    Perform this procedure only when replacement of the rear engine mounting insulator is necessary.

    1. for 2WD
      1. Remove the 4 nuts and rear engine mounting member from the rear engine mounting insulator.
        GTY420110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for AWD
      1. Remove the 3 nuts and rear engine mounting member from the rear engine mounting insulator.
        GTY420186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  91. REMOVE REAR ENGINE MOUNTING INSULATOR (for 2WD)

    HINT:

    Perform this procedure only when replacement of the rear engine mounting insulator is necessary.

    1. Remove the 4 nuts and rear engine mounting insulator from the rear engine mounting bracket.
      GTY464289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  92. REMOVE REAR ENGINE MOUNTING BRACKET (for 2WD)

    HINT:

    Perform this procedure only when replacement of the rear engine mounting insulator is necessary.

    1. Remove the 4 bolts and rear engine mounting bracket from the automatic transmission assembly.
      GTY464288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  93. REMOVE REAR NO. 1 ENGINE MOUNTING INSULATOR (for AWD)

    HINT:

    Only perform this procedure when replacement of the rear No. 1 engine mounting insulator is necessary.

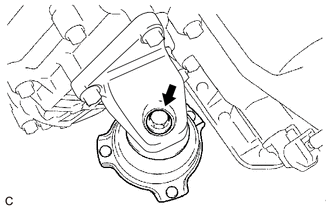

    1. Remove the bolt and rear No. 1 engine mounting insulator from the engine mounting bracket.
      GTY812934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Make sure to keep the engine mounting bracket and rear No. 1 engine mounting insulator aligned when removing the bolt to prevent damage to the rubber inside the rear No. 1 engine mounting insulator.

    2. Remove the 3 bolts and engine mounting bracket.
      GTY775933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  94. INSTALL ENGINE ASSEMBLY TO ENGINE STAND
    1. Install the engine assembly to an engine stand.
      NOTE:
      • Pay attention to the angle of the sling device as the engine assembly or No. 1 engine hangers may be damaged or deformed if the angle is incorrect.
      • Do not perform any procedure while the engine assembly is suspended because doing so may cause the engine assembly to drop, resulting in injury. However, the engine assembly needs to be suspended when it is installed to or removed from an engine stand.
    2. Remove the 4 bolts, No. 1 engine hanger and No. 2 engine hanger.
scientia non olet · About LEMON Manuals
