Installation [08/2015 - 09/2020]: Procedure

  1. INSTALL FRONT DRIVE SHAFT HOLE SNAP RING LH
    1. Install a new front drive shaft hole snap ring LH.
      NOTE:

      Face the end gap of the front drive shaft hole snap ring LH downward.

  2. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH
    1. Coat the splines of the front drive inboard joint assembly with hypoid gear oil SX.
    2. Align the inboard joint splines, and using a brass bar and a hammer, install the front drive shaft assembly LH.
      GTY464410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Face the end gap of the front drive shaft hole snap ring LH downward.
      • Do not damage the front differential case oil seal.
      • Do not damage the front axle inboard joint boot.
      • Make sure to center the front drive shaft assembly LH during installation to prevent damage to the front drive shaft hole snap ring LH.
      • Install the front drive shaft assembly LH while keeping it level.

      HINT:

      Confirm whether the drive shaft is securely driven in by checking the reaction force and sound.

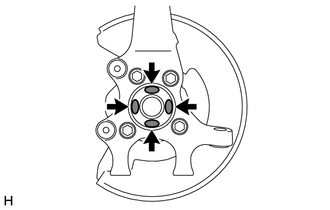

    3. Apply 0.1 to 0.3 g (0.00353 to 0.0105 oz) of Toyota Body Grease W to each of the 4 areas shown in the illustration.
      GTY1083329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Toyota Body Grease W

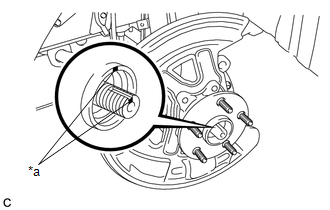

    4. Align the matchmarks and install the front drive shaft assembly LH to the front axle hub sub-assembly.
      GTY461730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
      NOTE:

      Be careful not to damage the front axle outboard joint boot.

  3. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH
    1. Align the inboard joint splines, and using a brass bar and a hammer, install the front drive shaft assembly RH.
      NOTE:
      • Do not damage the front differential case oil seal.
      • Do not damage the front axle inboard joint boot.
      • Install the front drive shaft assembly RH while keeping it level.
    2. Using water pump pliers, install a new drive shaft bearing bracket hole snap ring.
    3. Install a new No. 1 drive shaft bearing bracket setting bolt.

      Torque: 32 N.m (326 kgf/cm, 24 ft.lbf)

    4. Apply 0.1 to 0.3 g (0.00353 to 0.0105 oz) of Toyota Body Grease W to each of the 4 areas shown in the illustration.
      GTY1083364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Toyota Body Grease W

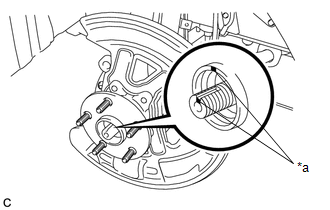

    5. Align the matchmarks and install the front drive shaft assembly RH to the front axle hub sub-assembly.
      GTY466646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
      NOTE:

      Be careful not to damage the front axle outboard joint boot.

  4. INSTALL FRONT LOWER BALL JOINT ASSEMBLY

    Refer to PROCEDURE - Step 2

  5. INSTALL FRONT DISC

    Refer to PROCEDURE - Step 1

  6. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY

    Refer to PROCEDURE - Step 7

  7. INSTALL FRONT SPEED SENSOR

    Refer to PROCEDURE - Step 14

  8. INSTALL FRONT AXLE SHAFT NUT
    1. Clean the threaded parts on the front drive shaft assembly LH and a new front axle shaft nut using non-residue solvent.
      NOTE:
      • Be sure to perform this work even when using a new front drive shaft assembly LH.
      • Keep the threaded parts free of oil and foreign matter.
    2. Using a 30 mm socket wrench, while applying the brakes, temporarily install the front axle shaft nut.

      Torque: 294 N.m (2998 kgf/cm, 217 ft.lbf)

      HINT:

      Keep depressing the brake pedal to prevent the front drive shaft assembly LH from rotating.

    3. Using a chisel and hammer, stake the front axle shaft nut.
      GTY468132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. ADD DIFFERENTIAL OIL

    Refer to PROCEDURE - Step 2 [08/2015 - 10/2017] , or refer to PROCEDURE - Step 2 [10/2017 - ]

  10. INSTALL FRONT WHEEL

    Torque: 103 N.m (1050 kgf/cm, 76 ft.lbf)

  11. ADJUST FRONT WHEEL ALIGNMENT

    Refer to ADJUSTMENT [08/2015 - 10/2016] , or refer to ADJUSTMENT [10/2016 - 09/2020]

  12. CHECK FOR SPEED SENSOR SIGNAL

    Refer to TEST MODE PROCEDURE [04/2013 - 10/2016] , or refer to TEST MODE PROCEDURE [10/2016 - 09/2020]
