Installation [10/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
    1. Install the No. 1 exhaust manifold heat insulator to the exhaust manifold sub-assembly LH (TWC: Front Catalyst) with the 3 bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    2. Install the No. 1 exhaust manifold heat insulator to the exhaust manifold sub-assembly RH (TWC: Front Catalyst) with the 3 bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  2. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY LH (TWC: Front Catalyst)
    1. Install a new gasket to the cylinder head sub-assembly.
    2. Temporarily install the exhaust manifold sub-assembly LH (TWC: Front Catalyst) with 4 new nuts.

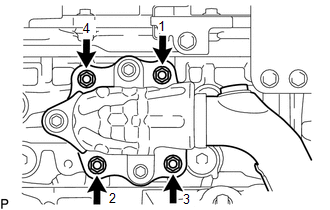

      Fig 1: Exhaust Manifold Sub-Assembly LH (TWC: Front Catalyst) Tightening Sequence
      GTY799354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a 12 mm deep socket wrench, tighten the 4 nuts in the order shown in the illustration.

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  3. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH (TWC: Front Catalyst)
    1. Install a new gasket to the cylinder head sub-assembly.
    2. Temporarily install the exhaust manifold sub-assembly RH (TWC: Front Catalyst) with 5 new nuts.

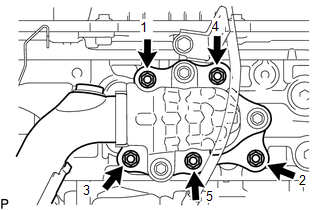

      Fig 2: Exhaust Manifold Sub-Assembly RH (TWC: Front Catalyst) Tightening Sequence
      GTY804786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a 12 mm deep socket wrench, tighten the 5 nuts in the order shown in the illustration.

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  4. INSTALL NO. 2 ENGINE OIL LEVEL DIPSTICK GUIDE
    1. Install a new O-ring to the No. 2 engine oil level dipstick guide.

      HINT:

      Apply a light coat of engine oil to the O-ring.

    2. Install the No. 2 engine oil level dipstick guide to the cylinder block with the bolt.

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

    3. Install the engine oil level dipstick.
  5. INSTALL FRONT PROPELLER SHAFT ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 1

  6. INSTALL NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY
    1. Install the No. 1 exhaust pipe support bracket sub-assembly to the automatic transmission with transfer assembly with the 2 bolts.

      Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

  7. INSTALL FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

    See step  4 [10/2017 - 09/2020], or see step  4 [09/2020 - ]

  8. CONNECT HEATED OXYGEN SENSOR

    See step  5 [10/2017 - 09/2020], or see step  5 [09/2020 - ]

  9. INSTALL FRONT CENTER FLOOR BRACE

    See step  6 [10/2017 - 09/2020], or see step  6 [09/2020 - ]

  10. INSTALL REAR NO. 2 FLOOR BOARD SUB-ASSEMBLY (for Full Cover Type)

    Refer to PROCEDURE - Step 78 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 74 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 74 [11/2021 - ]

  11. INSTALL REAR NO. 1 FLOOR BOARD SUB-ASSEMBLY (for Full Cover Type)

    Refer to PROCEDURE - Step 79 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 75 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 75 [11/2021 - ]

  12. INSTALL FRONT SUSPENSION MEMBER BRACE (for 2WD)

    Refer to PROCEDURE - Step 100 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 100 [09/2020 - ]

  13. INSTALL AIR FUEL RATIO SENSOR

    Refer to INSTALLATION [10/2017 - 09/2020] , or refer to INSTALLATION [09/2020 - ]

  14. INSPECT FOR EXHAUST GAS LEAK

    See step  9 [10/2017 - 09/2020], or see step  9 [09/2020 - ]
