Adjustment [08/2015 - ]: Procedure

Refer to REMOVAL [04/2013 - 10/2016] , or refer to REMOVAL [10/2016 - 10/2017] , or refer to REMOVAL [10/2017 - 09/2020] , or refer to REMOVAL [09/2020 - ]

Refer to PROCEDURE - Step 2

1. Move the shift lever to N.

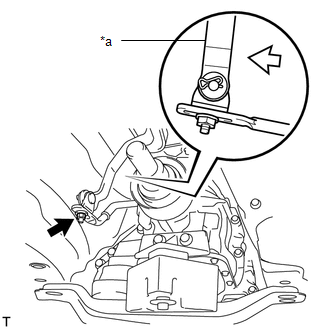

2. Remove the nut and separate the floor shift gear shifting rod sub-assembly from the lever of the transmission floor shift assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Lever

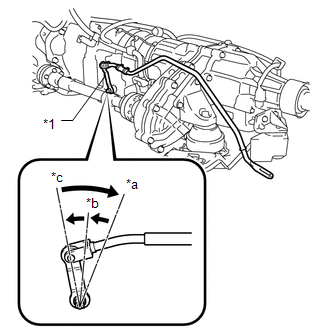

3. Turn the transmission control shaft lever LH clockwise until it stops, then turn it counterclockwise 2 notches.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Transmission Control Shaft Lever LH
   *a	P
   *b	R
   *c	N

4. Temporarily install the floor shift gear shifting rod sub-assembly to the lever of the transmission floor shift assembly with the nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Lever
   	Pushing the lever rearward

5. Tighten the nut while lightly pushing the lever of the transmission floor shift assembly rearward.

   Torque: 12.8 N.m (131 kgf/cm, 9 ft.lbf)

   NOTE:

   Do not push the lever of the transmission floor shift assembly too hard.

Refer to PROCEDURE - Step 4

Refer to INSTALLATION [04/2013 - 10/2016] , or refer to INSTALLATION [10/2016 - 10/2017] , or refer to INSTALLATION [10/2017 - 09/2020] , or refer to INSTALLATION [09/2020 - ]

See step  1

Refer to PROCEDURE - Step 9 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 9 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 9 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 9 [09/2020 - ]
