Install the complete front axle with the engine and automatic transmission (all-wheel drive)

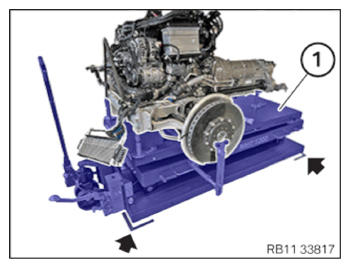

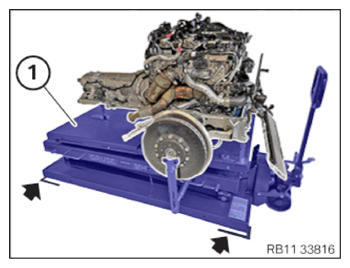

• Position the lifting table (1)  with the engine under the vehicle.

  The marks made during removal (arrows) on the workshop floor are used as positioning aid.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the lifting table (1)  with the engine under the vehicle.

  The marks made during removal (arrows) on the workshop floor are used as positioning aid.

  Courtesy of BMW OF NORTH AMERICA, INC.

  CAUTION: Heavy component  .
  Heavy components can lead to injury or damage  .

  • Remove and install heavy components with the aid of another person/other persons.

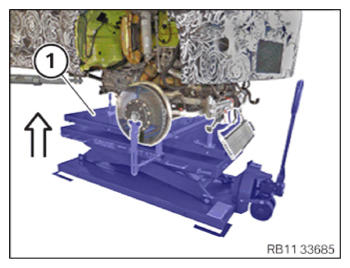

• Raise the lifting table (1)  in arrow direction  and pay attention to the free movement  of all components.

  Courtesy of BMW OF NORTH AMERICA, INC.

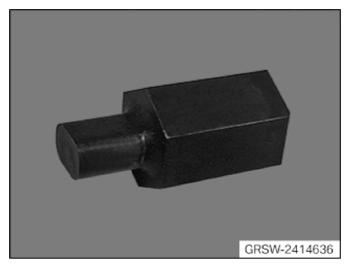

• Keep special tool 2 414 636  at hand.

Courtesy of BMW OF NORTH AMERICA, INC.

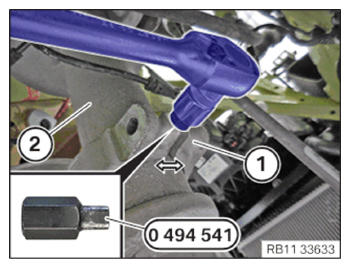

• Spread the swivel bearing (1)  in arrow direction with the special tool 2 414 636  .
• Feed in the swivel bearing (1)  at the spring strut (2)  and position it correctly.
• Remove the special tool 2 414 636  .

Courtesy of BMW OF NORTH AMERICA, INC.

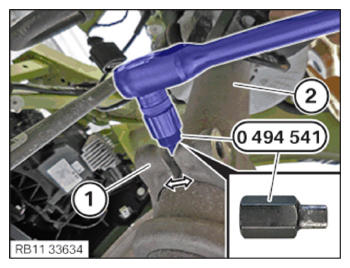

• Spread the swivel bearing (1) with the special tool 2 414 636 in arrow direction.
• Feed in the swivel bearing (1)  at the spring strut (2)  and position it correctly.
• Remove the special tool 2 414 636  .

Courtesy of BMW OF NORTH AMERICA, INC.

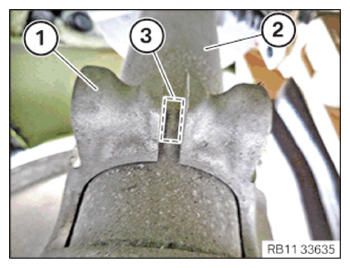

• Make sure that the installation position of the spring strut (1)  and the swivel bearing (2) in the marked area (3) is correct  .

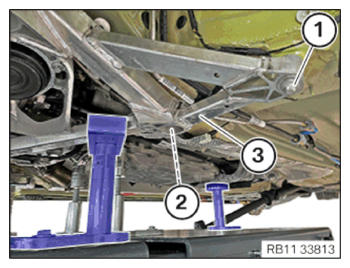

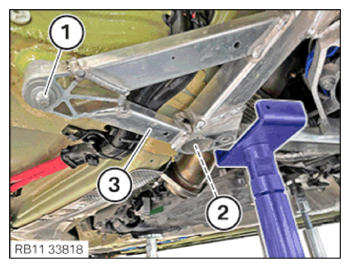

• Tighten the screw (1)  on the front subframe (3) at the outer rear left  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATIONS



  Front subframe to outer body at the rear
  M10 Replace screws.	Tightening torque  Angle of rotation	56 Nm 90°

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screw (2)  on the front subframe (3) at the inner rear left  .
  TIGHTENING TORQUE SPECIFICATIONS



  Front axle carrier to body, rear
  M14 Replace screws.	Tightening torque	120 Nm

• Tighten the screw (1)  on the front subframe (3) at the outer right rear  .
  TIGHTENING TORQUE SPECIFICATIONS



  Front subframe to outer body at the rear
  M10 Replace screws.	Tightening torque  Angle of rotation	56 Nm 90°

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screw (2)  on the front subframe (3) at the inner right rear  .
  TIGHTENING TORQUE SPECIFICATIONS



  Front axle carrier to body, rear
  M14 Replace screws.	Tightening torque	120 Nm

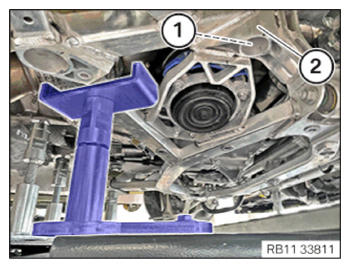

• Tighten the screw (1)  on the front subframe (2)  , center left (3)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Front subframe on front/center of body
  M12 Replace screws.	Tightening torque	108 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screw (1)  on the front subframe (2)  , center right  .
  TIGHTENING TORQUE SPECIFICATIONS



  Front subframe on front/center of body
  M12 Replace screws.	Tightening torque	108 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

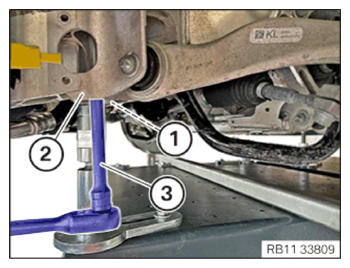

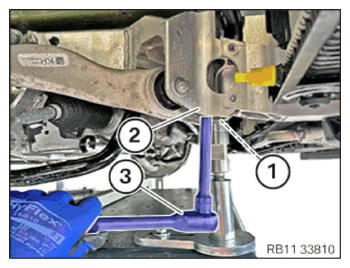

• Tighten the screw (1)  on the front subframe (2)  , right front,  with a standard tool (3)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Front subframe on front/center of body
  M12 Replace screws.	Tightening torque	108 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screw (1)  on the front subframe (2)  , left front,  with a standard tool (3)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Front subframe on front/center of body
  M12 Replace screws.	Tightening torque	108 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

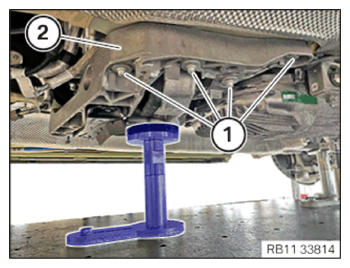

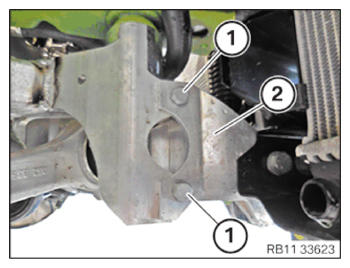

• Tighten the screws (1)  on the front subframe (2) at the left front  .
  TIGHTENING TORQUE SPECIFICATIONS



  Adapter, front axle support to front axle support
  M8x70	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

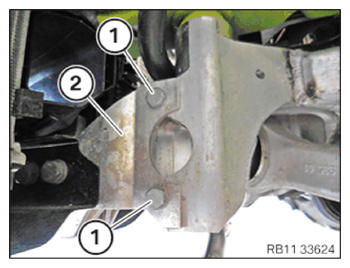

• Tighten the screws (1)  on the front subframe (2) at the right front  .
  TIGHTENING TORQUE SPECIFICATIONS



  Adapter, front axle support to front axle support
  M8x70	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

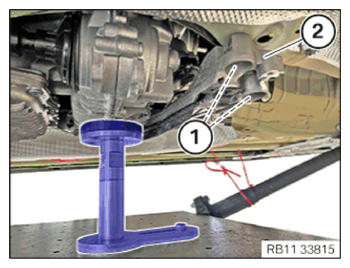

• Tighten the screws (1)  at the transmission cross member (2)  , left  .
  TIGHTENING TORQUE SPECIFICATIONS



  Transmission cross member to body
  M8	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screws (1)  at the transmission cross member (2)  , right  .
  TIGHTENING TORQUE SPECIFICATIONS



  Transmission cross member to body
  M8	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

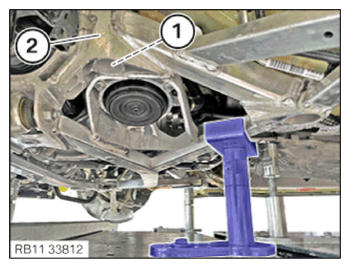

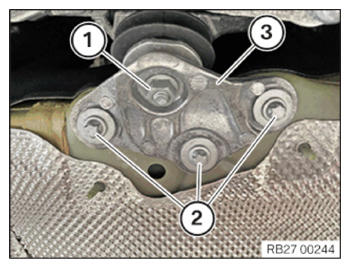

• Thread in and install the transmission bearing support (3)  .
• Tighten the screws (2)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Transmission bearing support to body
  M8	Tightening torque	19 Nm

• Tighten nut (1)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Rubber mount to transmission bearing support
  M8	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

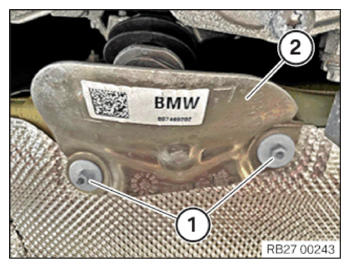

• Feed in and install the heat shield (2)  .
• Tighten nuts (1)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Heat protection plate
  Sheet metal nut	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

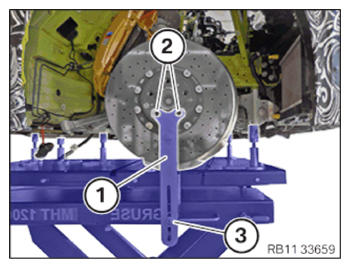

• Release the lug bolts (2) at the left front  .
• Release the adjustment screw (3)  and feed out the mount (1)  and set aside.

Courtesy of BMW OF NORTH AMERICA, INC.

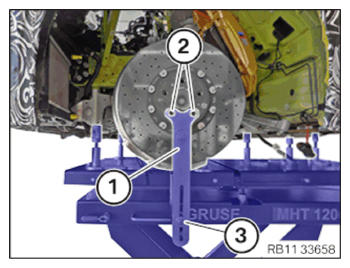

• Release the lug bolts (2) at the right front  .
• Release the adjustment screw (3)  and feed out the mount (1)  and set aside.
• Slowly lower the lifting table and set aside.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to REMOVING THE WEIGHT COMPENSATIONS FROM THE VEHICLE .
• Refer to ATTACHING THE LEFT FRONT AND RIGHT SWIVEL BEARING ONTO THE SPRING STRUT .
• Refer to SECURING THE ANTI-ROLL BAR LINK ON THE LEFT AND RIGHT TO THE ANTI-ROLL BAR .
• Refer to ATTACHING THE LINE CONNECTION OF THE RIDE HEIGHT SENSOR .
• Refer to SECURING THE LEFT FRONT AND RIGHT WHEEL SPEED SENSORS .
• Refer to ATTACHING THE BRAKE HOSES ON THE HOLDER AT THE LEFT FRONT AND RIGHT .
• Refer to INSTALLING THE LEFT FRONT AND RIGHT BRAKE VENTILATION DUCT .
• Refer to SECURING THE FRONT LEFT AND RIGHT BRAKE CALIPER .
• Refer to SECURING THE STEERING SHAFT AT THE BOTTOM ON THE DOUBLE PIVOT .
• Refer to SECURING THE WIRING HARNESS FOR THE EPS ON THE FRONT SUBFRAME .
• Refer to FASTENING THE PROP SHAFT (PARTIALLY REMOVED) .
• Refer to SECURING THE GROUND STRAP ON THE BODY .
• Refer to INSTALLING FRONT HEAT SHIELD .
• Refer to INSTALLING THE REAR HEAT SHIELD .
• Refer to FASTENING THE WIRING HARNESS SECTION TO THE COVER OF THE TRANSMISSION CROSS MEMBER .
• Refer to INSTALLING THE INTERMEDIATE PIPE .
• Refer to INSTALLING THE LEFT THRUST FIELD .
• Refer to INSTALLING TANK COVER .
• Refer to INSTALLING EXHAUST SYSTEM .
• Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
• Refer to CONNECTING THE COOLANT LINES FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
• Refer to SECURING THE ENGINE OIL COOLER .
• Refer to CONNECTING THE COOLANT LINE TO THE RADIATOR .
• Refer to FASTENING THE AUTOMATIC OIL LINES TO THE TRANSMISSION OIL COOLER .
• Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
• Refer to INSTALLING FRONT LEFT OR RIGHT WHEEL .
• Refer to SECURING THE POSITIVE BATTERY CABLES AT THE AUXILIARY TERMINAL FOR JUMP STARTING .
• Refer to ATTACHING THE REFRIGERANT LINES TO THE AIR CONDITIONING COMPRESSOR .
• Refer to SECURING THE COOLANT LINES .
• Refer to ATTACHING THE FUEL HOSE AND THE TANK VENTING LINE .
• Refer to INSTALLING THE CONTROL UNIT HOLDER .
• Refer to PARTIALLY INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
• Refer to INSTALLING THE DME CONTROL UNIT .
• Refer to INSTALLING THE COVER FOR THE DME CONTROL UNIT .
• Refer to INSTALLING THE COOLANT EXPANSION TANK OF THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to INSTALLING THE COOLANT EXPANSION TANK FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
• Refer to INSTALLING THE CLEAN AIR PIPE FOR CYLINDERS 4-6 .
• Refer to INSTALLING THE INTAKE FILTER HOUSING ON THE LEFT (FRONT-END STRUT REMOVED) .
• Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
• Refer to INSTALLING FAN COWL .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING UPPER CROSS CONNECTION .
• Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE FRONT HOOD SEAL .
• Refer to INSTALLING THE CLEAN AIR PIPE FOR CYLINDERS 1 TO 3 .
• Refer to INSTALLING THE FRONT-END STRUT .
• Refer to EVACUATING AND CHARGING CONDITIONING .
• Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
• Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to CHECKING ENGINE OIL LEVEL .
• Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
• Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
• Refer to CHECKING/TOPPING UP THE OIL LEVEL IN THE AUTOMATIC TRANSMISSION .
• Refer to CHECKING LOW-TEMPERATURE COOLING SYSTEM FOR WATERTIGHTNESS .
• Refer to CHECKING THE HIGH-TEMPERATURE COOLING SYSTEM FOR WATERTIGHTNESS .
• Refer to INSTALLING BOTTOM FRONT COVER FROM THE SIDE .
• Refer to INSTALLING THE BOTTOM FRONT RIGHT SIDE COVER .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE FRONT SPOILER .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING THE STRUT BRACE .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
