Attaching the left front and right swivel bearing onto the spring strut

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

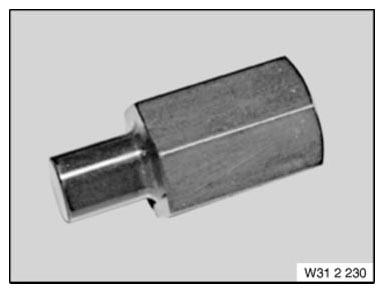

Keep the special tool 0 494 541 (31 2 230) ready.

Courtesy of BMW OF NORTH AMERICA, INC.

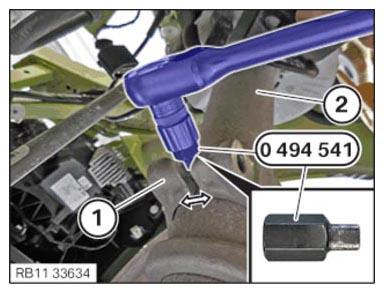

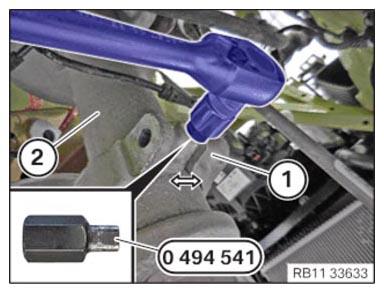

Spread open the swivel bearing (1) in the arrow direction with the special tool 0 494 541 (31 2 230) .
Feed in the swivel bearing (1) at the spring strut (2) and position it correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

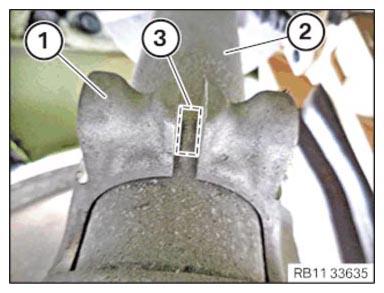

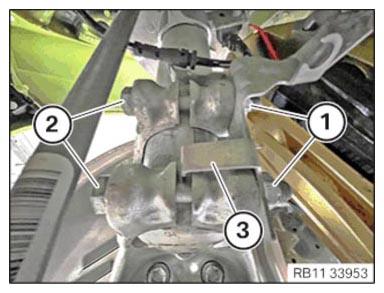

The installation position of the spring strut (1) and the spring strut (2) in the marked area (3) is correctly positioned.

Courtesy of BMW OF NORTH AMERICA, INC.

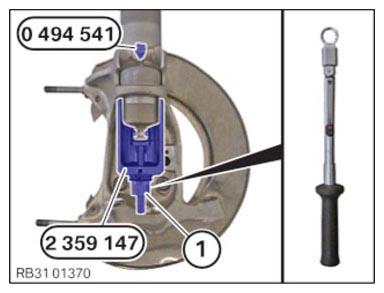

Position the special tool 2 359 147 .
Tighten the nut (1) and pull the shock absorber into the swivel bearing.

TIGHTENING TORQUE SPECIFICATIONS

Special tool to the swivel bearing
	Tightening torque	20 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Release and remove the special tool 0 494 541 (31 2 230).

The special tool 2 359 147 must be released only after tightening the screw connection.

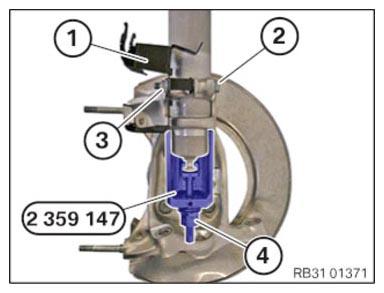

Position the holder (1) on the swivel bearing.
Replace the screw (2) and the nut (3) .
Parts: Screw, nut
Insert and tighten the screw (2) . In doing so, counter support at the nut (3) .

TIGHTENING TORQUE SPECIFICATIONS

Spring strut to swivel bearing
M10 Replace screw and nut. Tightening via screw.	Tightening torque	56 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Release the nuts (4) and remove the special tool 2 359 147 .
Spread open the swivel bearing (1) in the arrow direction with the special tool 0 494 541 (31 2 230) .
Feed in the swivel bearing (1) at the spring strut (2) and position it correctly.

Courtesy of BMW OF NORTH AMERICA, INC.
The installation position of the spring strut (1) and the spring strut (2) in the marked area (3) is correctly positioned.

Courtesy of BMW OF NORTH AMERICA, INC.

Position the special tool 2 359 147 .
Tighten the nut (1) and pull the shock absorber into the swivel bearing.

TIGHTENING TORQUE SPECIFICATIONS

Special tool to the swivel bearing
	Tightening torque	20 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Release and remove the special tool 0 494 541 (31 2 230).
The special tool 2 359 147 must be released only after tightening the screw connection.
Position the holder (1) on the swivel bearing.
Replace the screw (2) and the nut (3) .
Parts: Screw, nut
Insert and tighten the screw (2) . In doing so, counter support at the nut (3) .

TIGHTENING TORQUE SPECIFICATIONS

Spring strut to swivel bearing
M10 Replace screw and nut. Tightening via screw.	Tightening torque	56 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Release the nuts (4) and remove the special tool 2 359 147.

Keep the special tool 0 494 541 (31 2 230) ready.

Courtesy of BMW OF NORTH AMERICA, INC.

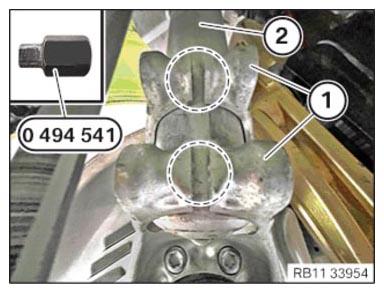

Using the special tool 0 494 541 (31 2 230) , spread open the swivel bearing (1) in the marked area.
Feed in the swivel bearing (1) at the spring strut (2) and position it correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

The installation position of the spring strut (1) and the spring strut (2) in the marked area (3) is correctly positioned.

Courtesy of BMW OF NORTH AMERICA, INC.

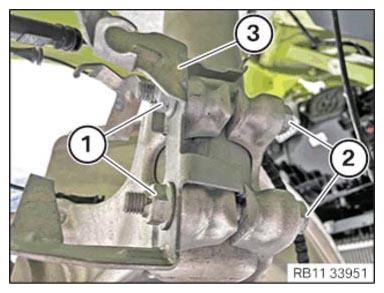

Position the holder (3) on the swivel bearing.
Replace the screws (2) and the nuts (1) .
Parts: Screw, nut
Insert and tighten the screw (2) . In doing so, counter support at the nut (1) .

TIGHTENING TORQUE SPECIFICATIONS

Spring strut to swivel bearing
M10 Replace screw and nut. Tightening via screw.	Tightening torque	56 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Keep the special tool 0 494 541 (31 2 230) ready.

Courtesy of BMW OF NORTH AMERICA, INC.

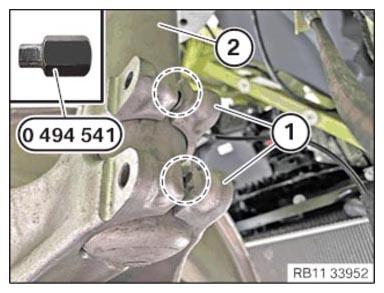

Using the special tool 0 494 541 (31 2 230) , spread open the swivel bearing (1) in the marked area.
Feed the swivel bearing (1) on the spring strut (2) and position it correctly.

Courtesy of BMW OF NORTH AMERICA, INC.
The installation position of the spring strut (1) and the spring strut (2) in the marked area (3) is correctly positioned.

Courtesy of BMW OF NORTH AMERICA, INC.
Position the holder (3) on the swivel bearing.
Replace the screws (2) and the nuts (1) .
Parts: Screw, nut
Insert and tighten the screw (2) . In doing so, counter support at the nut (1) .

TIGHTENING TORQUE SPECIFICATIONS

Spring strut to swivel bearing
M10 Replace screw and nut. Tightening via screw.	Tightening torque	56 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
