Install the intermediate pipe
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Mount the exhaust system in a de-energized state, following the tightening sequence from the rear silencer towards the exhaust manifold.
Mount the exhaust system in a de-energized state, following the tightening sequence from the rear silencer towards the exhaust manifold.

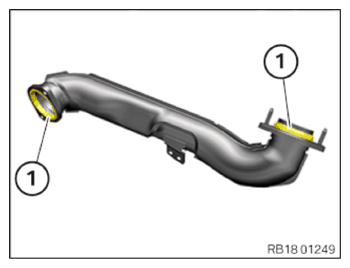

- Replace the seals (1).
Parts: Seals

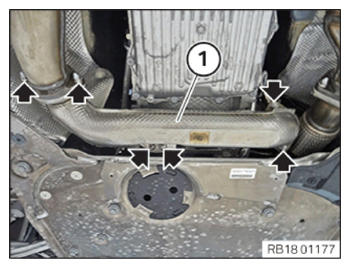

- Feed in the intermediate pipe (1) and install it.
- Tighten the nuts (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Exhaust system to intermediate pipe on catalytic converter | ||
| Nuts M8 | Tightening torque Tightening torque |
5 Nm 24 Nm |

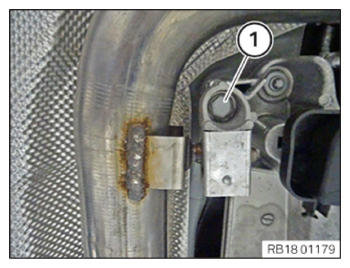

- Version A:
Replace the screw (1).
Parts: Screw
Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Exhaust system on the transmission crossmember | ||
| M8x25 Replace screw. | Tightening Torque | 19 Nm |

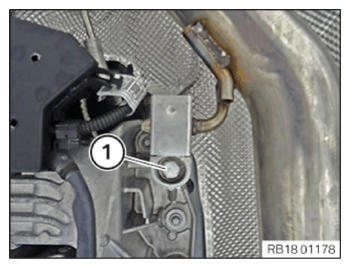

- Replace the screw (1).
Parts: Screw
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Exhaust system on the transmission cross member | ||
| M8x25 Replace screw. | Tightening Torque | 19 Nm |

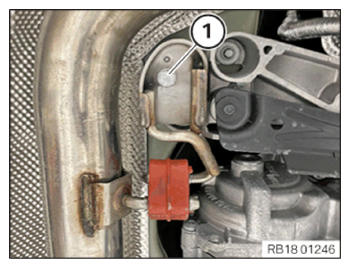

- Version B:
Replace the screw (1).
Parts: Screw
Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Exhaust system on the transmission cross member | ||
| M8x25 Replace screw. | Tightening Torque | 19 Nm |

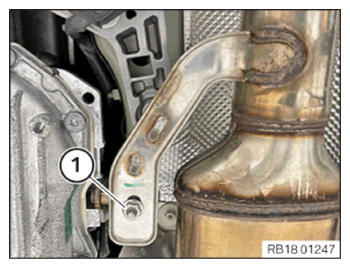

- Tighten nut (1).
TIGHTENING TORQUE SPECIFICATIONS
| Exhaust system to holder | ||
| Nut M8 | Tightening torque | 19 Nm |
