Secure the positive battery cables at the auxiliary terminal for jump starting

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Improper routing of the positive battery cable.
Risk of short circuits!

Route the positive battery cable without abrasions and do not trap.

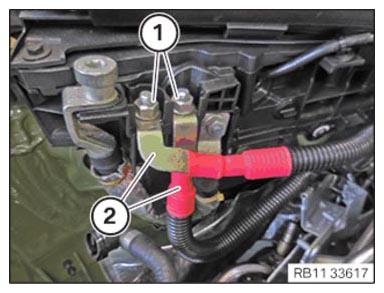

Feed in and position the positive battery cables (2) .
Tighten the nuts (1) .

TIGHTENING TORQUE SPECIFICATIONS

Battery positive lead to battery positive terminal
M8	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

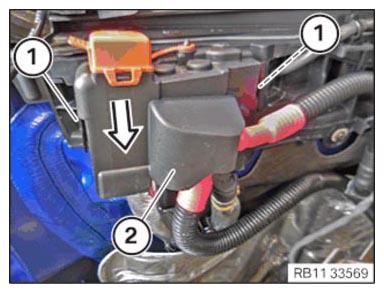

Feed in and install the cover (2) in arrow direction.

The locks (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
