Securing the steering shaft at the bottom on the double pivot
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

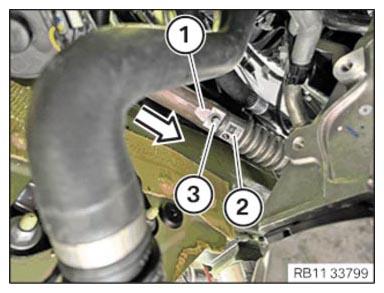

- Feed in the bottom steering shaft (1)
in arrow direction
on the double pivot (2)
and position it.
- Tighten down screw (3)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
TIGHTENING TORQUE SPECIFICATIONS
| Lower steering shaft to double pivot |
M8
Recut screw thread.
Replace clamping bolt.
No retorque permitted! |
Tightening torque |
28 Nm |
