Installing front heat shield

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

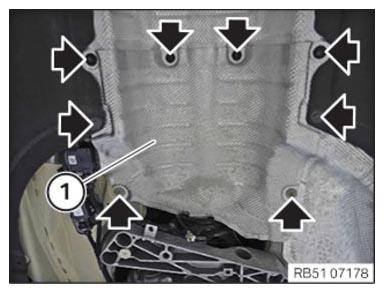

Feed in and install the heat shield (1).
Tighten the bolts and nuts (arrows).

TIGHTENING TORQUE SPECIFICATIONS

Heat shield to underbody
Screws and nuts	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Precondition

The rear heat shield has been removed.

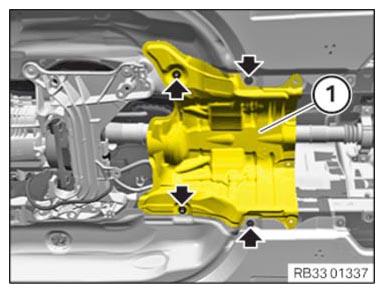

Position the front heat shield (1) .
Tighten the bolts and nuts (arrows).

TIGHTENING TORQUE SPECIFICATIONS

Heat shield to underbody
Screws and nuts	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
