Install the stiffening plate

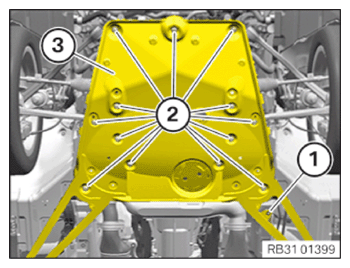

• Position thrust field (3).
• Replace screws (2).

  Parts:  Screws

• Tighten the screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Thrust field to front axle support
  M10 Replace screw	Tightening torque	56 Nm
  	Angle of rotation	90°

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Thrust field to heat shield
  Screw	Tightening torque	3 Nm

  Securing the left and right thrust field to the door sill

  NOTE: TECHNICAL INFORMATION
  Different variants may be installed depending on the vehicle equipment.
  NOTE: Perform the steps on the right and left side.

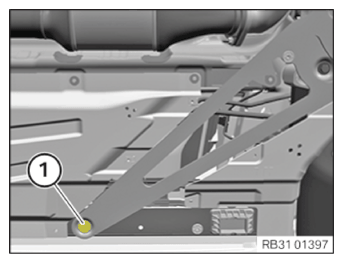

• Version A (G80):

  Replace the screw (1).

  Parts:  Screw

  Tighten down screw (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

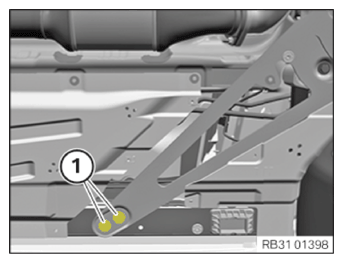

• Version B (G82/G83):

  Replace screws (1).

  Parts:  Screws

  Tighten the screws (1).

  TIGHTENING TORQUE SPECIFICATIONS



  Thrust field to door sill
  M10 Replace screw.	Tightening torque  Angle of rotation	56 Nm 90°

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the right and left side.

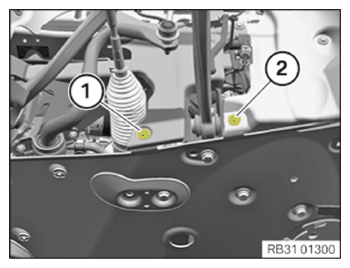

• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Cover, steering unit
  screw	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Wheel arch trim panel, front
  Thermoplastic hexagon screw	Tightening torque	2.6 Nm

Follow-up work

• Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE FRONT SPOILER .
