Securing the front left and right brake caliper

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

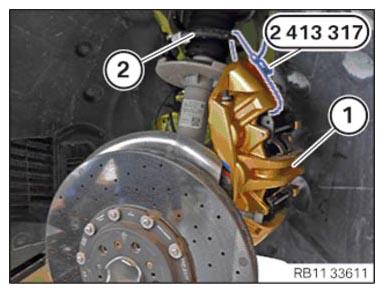

Release the brake caliper (1) on the left at the spring strut (2) from the special tool 2 413 317 .

Courtesy of BMW OF NORTH AMERICA, INC.

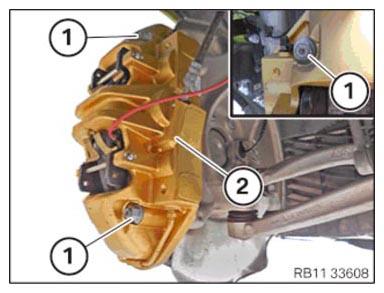

Insert and position the brake caliper (2) on the left .
Replace nuts (1) .
Parts: Nuts

Tighten the nuts (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Brake caliper on stud bolt of the front swivel bearing
M12 Replace nuts.	Tightening torque	95 Nm

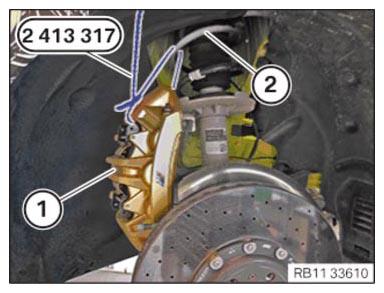

Release the brake caliper (1) on the right at the spring strut (2) from the special tool 2 413 317 .

Courtesy of BMW OF NORTH AMERICA, INC.

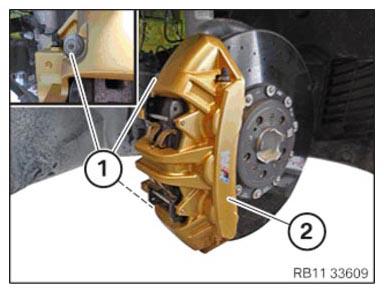

Feed in and position the brake caliper (2) on the right .
Replace nuts (1) .
Parts: Nuts
Tighten the nuts (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Brake caliper on stud bolt of the front swivel bearing
M12 Replace nuts.	Tightening torque	95 Nm
