Remove/install timing case cover - AR01.40-P-8000EL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 276.9 in MODEL 212, 218

Shown on engine 276.9 in model 218

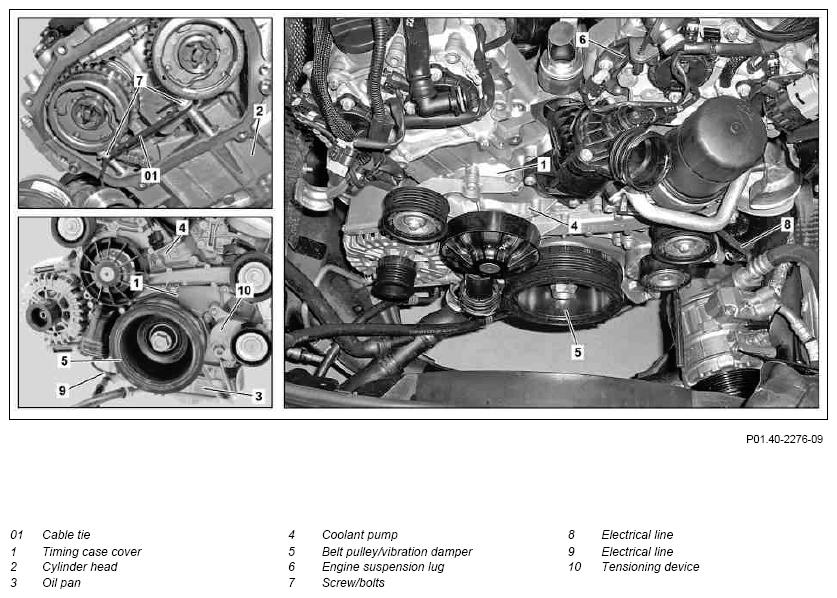

Fig 1: Timing Case Cover Remove/Install Components - Shown On Engine 276.9 In Model 218
G09973911Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of death  when touching components on vehicles with high-voltage on-board electrical system Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. AS54.00-Z-0001-01A
NOTES Note on the -voltage on-board electrical system   AH54.00-P-0010-01A
1 Remove both front covers Engine 276.9 on right cylinder head AR01.30-P-5700ELR
Engine 276.9 on left cylinder head AR01.30-P-5700ELL
2 Remove belt pulley/vibration damper (5)   AR03.30-P-1600EL
3 Mount engine suspension lug (6) TORQUE SPECIFICATION Bolt, lifting eye to front cylinder head *BA01.30-P-1005-01W
4 Remove electrical vacuum pump ENGINE 276.9 in MODEL 212.095/195 AR43.05-P-0001EHV
5 Remove oil pan (3) ENGINE 276.9 in MODEL 212.095/195 AR01.45-P-7500EHV
ENGINE 276.9 in MODEL 212 (except 212.095/195), 218 AR01.45-P-7500EL
6 Remove power electronics control unit with power distributor from timing case cover ENGINE 276.9 in MODEL 212.095/195 AR08.10-P-0011EHV
    IMPORTANT Do not remove the high-voltage lines to the high-voltage battery and to the electrical machine.
IMPORTANT Place power electronics control unit to one side and secure against falling down.
7 Disconnect electrical connection for engine oil pump valve on oil pump
8 Remove coolant pump (4)   AR20.10-P-1271EL
9 Remove screw/bolts (7) for the cylinder head (2) at timing case cover (1) IMPORTANT Remove screw/bolts (7) and fix with a cable tie (01).
TORQUE SPECIFICATION Bolt, cylinder head to timing case cover *BA01.30-P-1002-01W
10 Remove tensioning device (10) on poly-V belt   AR13.20-P-0001EL
11 Remove alternator ENGINE 276.9 in MODEL 212 (except 212.095/195), 218 AR15.40-P-5032EL
12 Disconnect electrical connection for engine oil pump valve on timing case cover (1)
13 Unclip electrical line (9) for engine oil pump valve on timing case cover (1) and place to the side
14.1 Remove electrical line (8) at refrigerant compressor on timing case cover (1) ENGINE 276.9 in MODEL 212 (except 212.095/195), 218
without CODE ME04 (Mild hybrid drive)
14.2 Remove refrigerant compressor from engine ENGINE 276.9 in MODEL 212.095/195
IMPORTANT Do not separate refrigerant lines.
IMPORTANT Place refrigerant compressor to one side and secure against falling down.		 AR83.55-P-5300EHV
15 Remove timing case cover (1) screw/bolts INSTALLATION IMPORTANT Pay attention to different screw/bolt lengths and screw/bolt diameters. AR01.40-P-8000-01MMA
16 Remove timing case cover (1) ENGINE 276.9 in MODEL 212, 218 AR03.20-P-3000EL
IMPORTANT Notes on sealant path for timing case cover INSTALLATION IMPORTANT Replace both seals in timing case cover (1) and apply sealant on sealing surface of the timing case cover (1):
INSTALLATION IMPORTANT Replace front crankshaft radial shaft sealing ring.		 AH01.40-P-1000-01MMA
CLEAN Clean
17 Clean sealing surfaces   AR01.00-P-0050-01A
NOTES One must not use sharp-edged tooling or abrasive paper.
The sealing surfaces can get damaged otherwise.
Loctite 7200 *BR00.45-Z-1038-04A
Loctite 7063 cleaning spray (150 ml) *BR00.45-Z-1046-04A
18 Install in the reverse order
19 Check engine oil level and correct if required
REFER TO MAINTENANCE     AP18.00-P-0101CWZ
20 Check cooling system for leaktightness   AR20.00-P-1010EL
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
21 Carry out an engine test run and check engine for leaktightness
CYLINDER HEAD

Number Designation ENGINE 276
BA01.30-P-1005-01W Bolt, lifting eye to front cylinder head Nm 18
CYLINDER HEAD

Number Designation ENGINE 276
BA01.30-P-1002-01W Bolt, cylinder head to timing case cover M7 Nm 14
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1038-04A Loctite 7200 Henkel Loctite Deutschland GmbH
BR00.45-Z-1046-04A Loctite 7063 cleaning spray (150 ml) A 001 986 71 71 10
