Remove/install refrigerant compressor - AR83.55-P-5300EHV
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276.9 in MODEL 212.095/195
| Remove/install | |||
| Risk of explosion caused by welding or soldering work on closed air conditioning system. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with liquid refrigerant. | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well-ventilated areas. Carry out repair work on the air conditioning system circuit only after the system has been drained. | AS83.00-Z-0001-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of death when touching components on vehicles with high-voltage on-board electrical system | Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. | AS54.00-Z-0001-01A | |
| Evaluation of high-voltage components | AH54.00-P-6500-01SXH | ||
| Note on high-voltage battery | AH54.10-P-0006-01MEV | ||
| Note on the -voltage on-board electrical system | AH54.00-P-0010-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Perform disable for the high-voltage on-board electrical system | AR54.10-P-1150EH | |
| 2 | Drain air conditioning system | AR83.30-P-1760CW | |
| 3 | Remove engine compartment paneling | AR61.20-P-1105EW | |

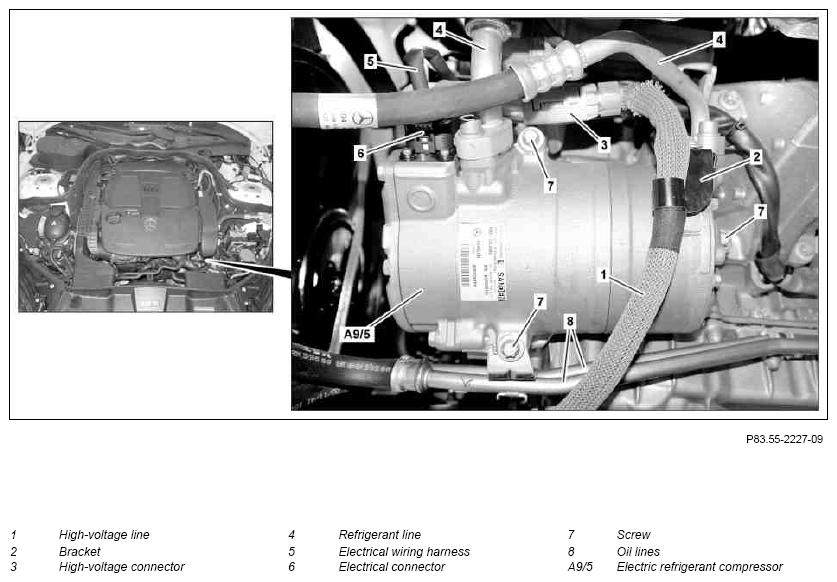

| 4 | Remove bracket (2) of high-voltage line (1) from electrical refrigerant compressor (A9/5) | ||
| 5 | Disconnect high-voltage connector (3) at electrical refrigerant compressor (A9/5) and place high-voltage line (1) to one side | ||
| 6 | Remove refrigerant lines (4) from electrical refrigerant compressor (A9/5) | ||
| *BA83.55-P-1003-01M | |||
| Figure | |||
| 7 | Disconnect electrical connector (6) | ||
| 8 | Unclip cable duct from electrical wiring harness (5) at electrical refrigerant compressor (A9/5) | ||
| 9 | Remove screw/bolts (7) | ||
| *BA83.55-P-1001-01M | |||
| 10 | Press refrigerant lines (4) slightly to one side and remove electrical refrigerant compressor (A9/5) upwards | ||
| 11 | Install in the reverse order |
REFRIGERANT COMPRESSOR
| Number | Designation | ENGINE 276 | |
|---|---|---|---|
| BA83.55-P-1003-01M | Bolt, refrigerant line to refrigerant compressor | Nm | 20 |
REFRIGERANT COMPRESSOR
| Number | Designation | ENGINE 276 | |
|---|---|---|---|
| BA83.55-P-1001-01M | Bolt, refrigerant compressor to timing case/crankcase/engine support | Nm | 20 |
