Remove/install belt pulley/vibration damper - AR03.30-P-1600EL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 157, 276, 278 in MODEL 212, 218

Shown on engine 278

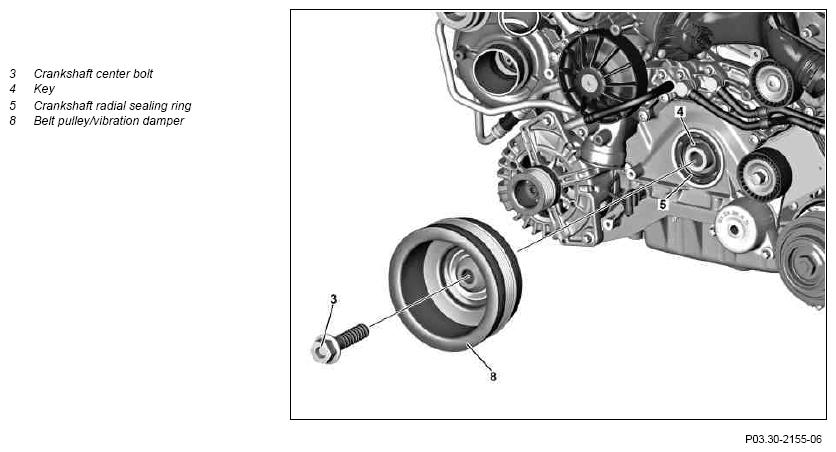

Fig 1: Belt Pulley/Vibration Damper Remove/Install Components - Shown On Engine 278

Courtesy of MERCEDES-BENZ USA

Shown on engine 276.9 in model 212.095/195

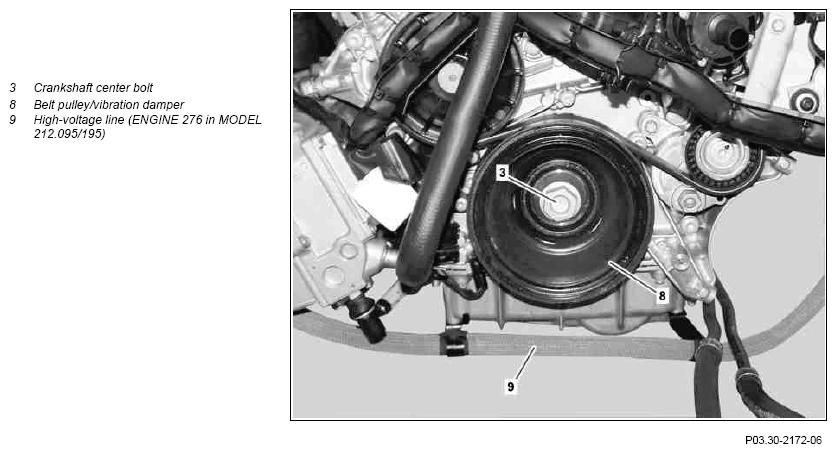

Fig 2: Belt Pulley/Vibration Damper Remove/Install Components - Shown On Engine 276.9

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Note on the -voltage on-board electrical system		AH54.00-P-0010-01A
1	Switch off ignition
2	Remove engine air intake duct upstream of air filter
3.1	Remove engine cover	ENGINE 276.8 in MODEL 212
3.2	Remove front engine cover	ENGINE 157, 276.9, 278 in MODEL 212, 218
4	Loosen charge air cooler and place with attached lines to one side	ENGINE 276.8 in MODEL 212
			AR09.41-P-6819ELS
5	Remove poly-V belt	ENGINE 276.8 in MODEL 212	AR13.20-P-0001ELS
		Engine 276.9 in model 212, 218	AR13.20-P-0001EL
		ENGINE 157, 278 in MODEL 212, 218	AR13.20-P-0001ELB
6	Install retaining lock for crankshaft/starter ring gear		AR03.30-P-5000EL
7	Cover high-voltage line (9) with a suitable means	ENGINE 276 in MODEL 212.095/195 The high-voltage line (9) should be protected against excessive fouling and against getting damaged. If the high-voltage line (9) is damaged the high-voltage distributor must be replaced completely.
8	Remove center bolt for crankshaft (3)	Replace center bolt for crankshaft (3).
		Center bolt, belt pulley to crankshaft	*BA03.30-P-1001-01M
9	Detach belt pulley/vibration damper (8) from crankshaft	Place belt pulley/vibration damper (8) on crankshaft and rotate to ensure that the feather key (4) of crankshaft is engaged in the groove on the belt pulley/vibration damper (8).
	Check
10	Check contact surface of the crankshaft radial sealing ring (5) on the belt pulley/vibration damper (8) hub for scoring and galling	Replace belt pulley/vibration damper (8) as required.
11	Check front crankshaft radial sealing ring (5) for damage		AR03.20-P-3000EL
		Replace front crankshaft radial sealing ring (5) if necessary.
12	Install in the reverse order
	Check
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
13	Conduct an engine test run and check engine for leaktightness

FLYWHEEL, DRIVE PLATE, VIBRATION DAMPER, STARTER RING GEAR

Number	Designation			ENGINE 157	ENGINE 276
BA03.30-P-1001-01M	Center bolt, belt pulley to crankshaft	Stage 1	Nm	200	200
BA03.30-P-1001-01M	Center bolt, belt pulley to crankshaft	Stage 2	∠°	180	180

FLYWHEEL, DRIVE PLATE, VIBRATION DAMPER, STARTER RING GEAR

Number	Designation			ENGINE 278
BA03.30-P-1001-01M	Center bolt, belt pulley to crankshaft	Stage 1	Nm	200
BA03.30-P-1001-01M	Center bolt, belt pulley to crankshaft	Stage 2	∠°	180
