Remove/install alternator - AR15.40-P-5032EL
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276 in MODEL 212, 218

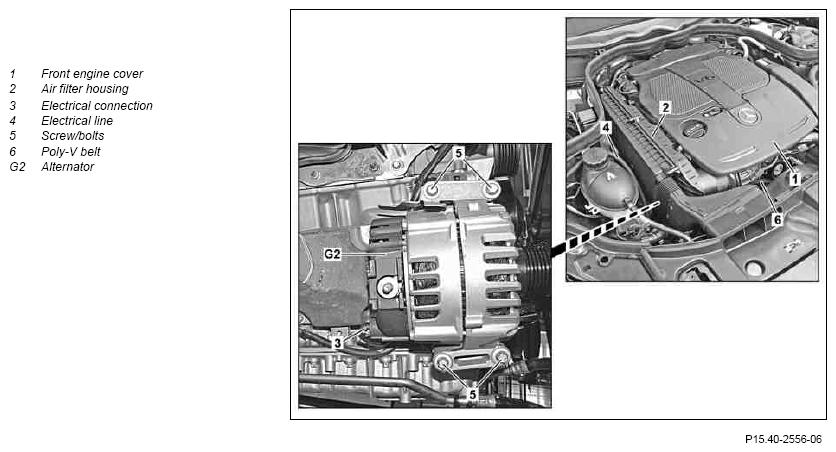

Shown on engine 276.9
| Remove/install | |||
| 1 | Detach ground line from battery | AR54.10-P-0003EW | |
| Notes on battery | AH54.10-P-0001-01A | ||
| 2 | Remove front engine cover (1) | ||
| 3.1 | Remove air filter housing (2) | ENGINE 276.9 | |
| *BA09.10-P-1002-01M | |||
| *BA09.10-P-1001-01M | |||
| 3.2 | Remove intake air duct on left and right | ENGINE 276.8 | |
| 4 | Remove fan unit | ENGINE 276.8 | |
| AR20.40-P-5050EL | |||
| 5 | Remove charge air duct on the right | ENGINE 276.8 | |
| AR09.41-P-8620ELS | |||
| 6.1 | Remove poly-V belt (6) | ENGINE 276.9 | |
| AR13.20-P-0001EL | |||
| 6.2 | Remove poly-V belt (6) from alternator belt pulley | ENGINE 276.8 | |
| AR13.20-P-0001ELS | |||
| 7 | Detach cap, unscrew nut and remove electrical line (4) from alternator (G2) | *BA15.40-P-1002-01F | |
| 8 | Remove screw/bolts (5) for alternator (G2) | *BA15.40-P-1001-01F | |
| 9 | Set alternator (G2) aside | ||
| 10 | Disconnect electrical connection (3) at alternator (G2) | ||
| 11 | Take alternator (G2) upwards and out | ||
| 12 | Install in the reverse order |
ALTERNATOR
| Number | Designation | ENGINE 276 | |
|---|---|---|---|
| BA15.40-P-1002-01F | Nut, circuit B+ to alternator | Nm | 15 |
AIR FILTER
| Number | Designation | ENGINE 276.9 | |
|---|---|---|---|
| BA09.10-P-1002-01M | Bolt, air filter to air intake pipe support brace | Nm | 9 |
AIR FILTER
| Number | Designation | ENGINE 276.9 | |
|---|---|---|---|
| BA09.10-P-1001-01M | Bolt, air filter to cylinder head cover | Nm | 9 |
ALTERNATOR
| Number | Designation | ENGINE 276 | |
|---|---|---|---|
| BA15.40-P-1001-01F | Bolt, alternator to timing case | Nm | 20 |
