Replace front crankshaft radial sealing ring - AR03.20-P-3000EL
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 157, 276, 278 in MODEL 212, 218

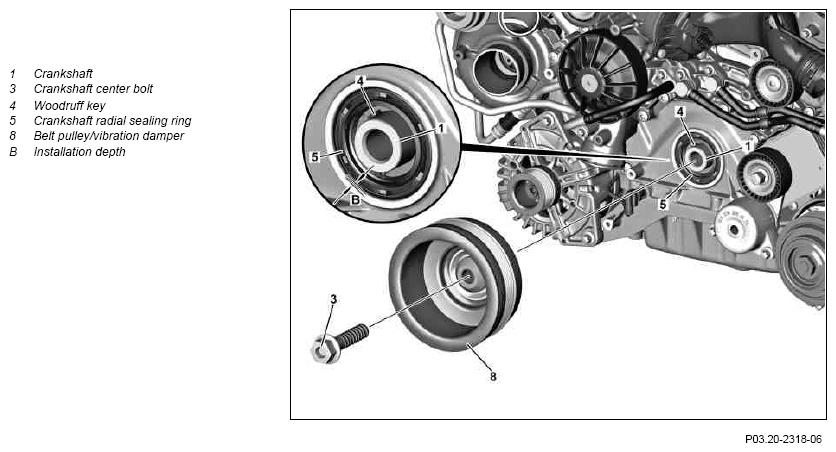

Shown on engine 276.9
| Remove/install | |||
| 1 | Remove belt pulley/vibration damper (8) | AR03.30-P-1600EL | |
| 2 | Press out crankshaft radial sealing ring (5) from the mounting hole using a screwdriver | AR03.20-P-3000-01MM | |
Do not damage crankshaft and mounting hole. Use a clean rag as a base when pushing out. Leakage can occur otherwise. |
|||
| Figure | |||
| Check | |||
| 3 | Check contact surface of crankshaft radial sealing ring (5) at hub of belt pulley/vibration damper (8) | ||
| 4 | Install in the reverse order | ||
| 5 | Check engine oil level; correct if necessary | ||
| MODEL 212, 218 with ENGINE 157 | AP18.00-P-0101EWG | ||
| MODEL 212, 218 with ENGINE 276 | AP18.00-P-0101CWZ | ||
| MODEL 212, 218 with ENGINE 278 | AP18.00-P-0101EW | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Carry out an engine test run and check engine for leaktightness |
