Bolt plan for timing case cover - AR01.40-P-8000-01MMA

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 276

CRANKCASE, TIMING CASE COVER, END COVER

Number	Designation			Engine 276
BA01.40-P-1001-01K	Bolt, timing case cover to cylinder crankcase	Stage 1	Nm	10
BA01.40-P-1001-01K	Bolt, timing case cover to cylinder crankcase	Stage 2	Nm	20

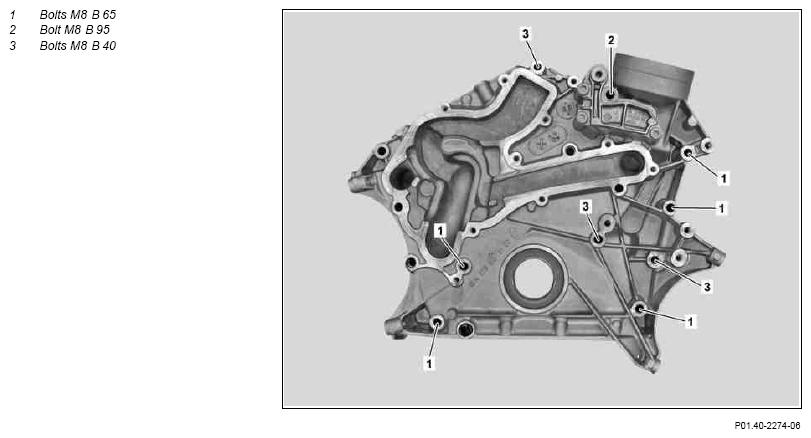

Fig 1: Timing Case Cover Bolt Diagram

Courtesy of MERCEDES-BENZ USA
