Remove/install oil pan - AR01.45-P-7500EHV

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 276 in MODEL 212.095/195

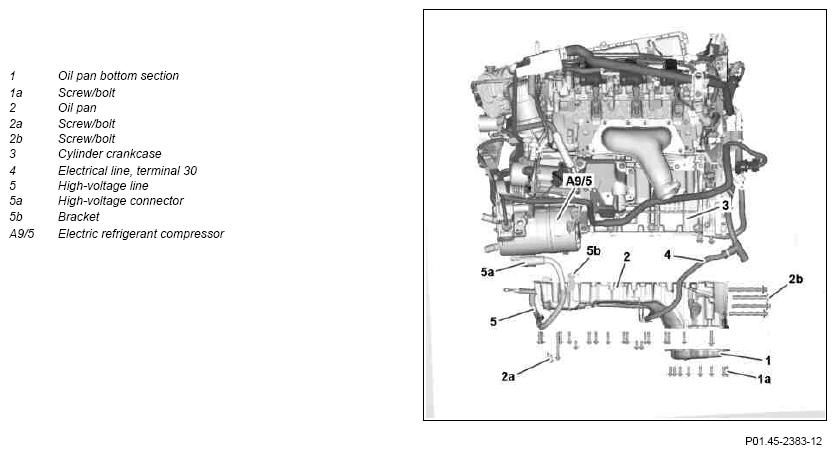

Fig 1: Oil Pan Remove/Install Components (1 Of 3)

Courtesy of MERCEDES-BENZ USA

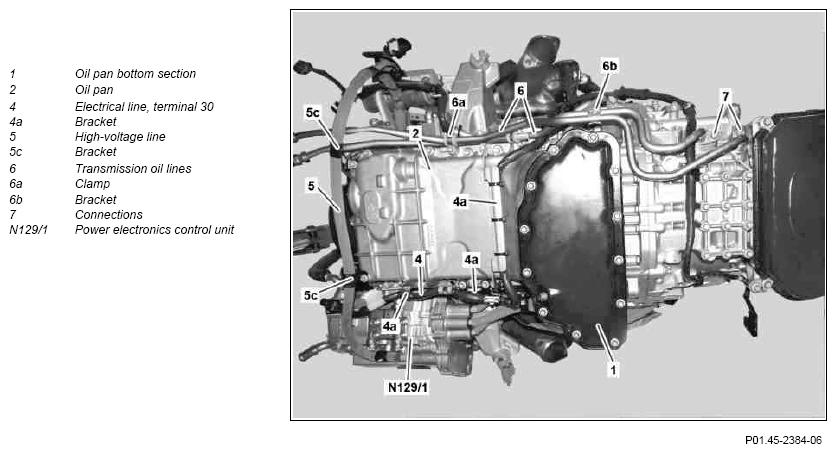

Fig 2: Oil Pan Remove/Install Components (2 Of 3)

Courtesy of MERCEDES-BENZ USA

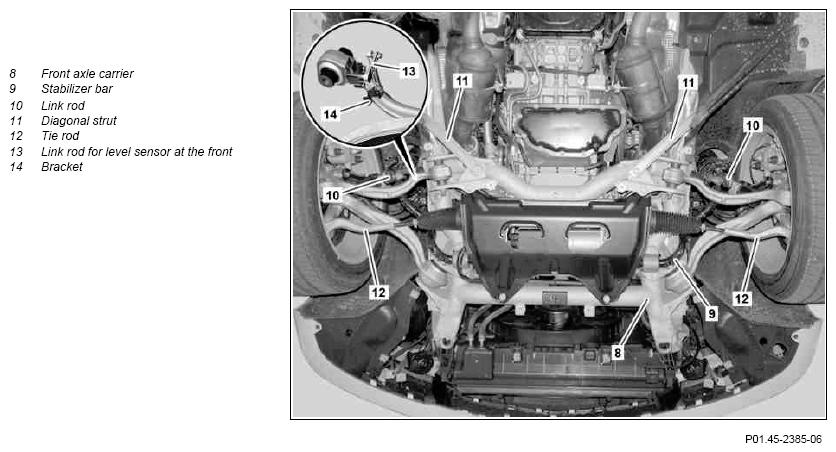

Fig 3: Oil Pan Remove/Install Components (3 Of 3)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
	Risk of death when touching components on vehicles with high-voltage on-board electrical system	Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems.	AS54.00-Z-0001-01A
	Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Evaluation of high-voltage components		AH54.00-P-6500-01SXH
	Note on high-voltage on-board electrical system		AH54.00-P-0010-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Turn front wheels to straight-ahead position and secure steering wheel with holding device	The steering wheel must not be turned when the steering coupling is removed. The clock spring contact may be destroyed otherwise.
		Retainer device	Figure
2	Perform enable for the high voltage on-board electrical system		AR54.10-P-1150EH
3	Remove ground line on on-board electrical system battery		AR54.10-P-0003EW
4	Remove air filter housing with engine air intake duct upstream of air filter	Bolt, air filter to air intake pipe support brace	*BA09.10-P-1002-01M
4		Bolt, air filter to cylinder head cover	*BA09.10-P-1001-01M
5	Remove resonance intake manifold		AR09.20-P-1961EL
6	Secure vehicle on vehicle lift		AR00.60-P-0100EWS
7	Remove engine compartment paneling		AR61.20-P-1105EW
8	Drain engine oil and catch in a suitable container
			AP18.00-P-0101CWZ
9	Disconnect electrical connection on oil level check switch		AR18.40-P-5113EL
10	Remove ME-SFI [ME] control unit with bracket		AR07.08-P-7008EL
11	Remove oil dipstick guide tube	Check sealing ring for oil dipstick guide tube in oil pan (2) and replace if necessary.	AR18.40-P-3510EL
12	Mount engine hoist and raise engine slightly	Only lift up the engine until the engine mounts are relieved of load.	AR33.10-P-0105EW
13	Secure cooler with tensioning strap against falling down
14	Remove diagonal struts (11)	Only tighten screw/bolts for the diagonal struts (11) once the vehicle is standing with its wheels on the ground.
		Bolt, diagonal strut mount to front axle carrier/longitudinal member	*BA61.10-P-1004-01H
15	Remove link rods (10) on stabilizer bar (9)	If necessary, counterhold ball stud with internal Torx.
		Nut, link rod to stabilizer bar	*BA32.20-P-1001-02P
16	Remove tie rods (12) from steering knuckles		AR46.40-P-0200-02CW
		Self-locking nut, tie rod to steering knuckle	*BA46.40-P-1001-01N
		Puller	Fig 5
		Puller	Fig 6
		Thrust piece	Fig 7
		Press	Fig 9
17	Remove bracket (14) for front level sensor link rod (13) from cross strut	Do not unclip front level sensor link rod (13) from bracket (14). The front level sensor link rod (13) can get damaged otherwise.
18	Remove steering coupling from steering gear		AR46.10-P-8000EW
19	Secure front axle carrier (8) using transmission jack	Transmission platform Transmission jack
20	Remove screw/bolts for front engine mount on front axle carrier (8)	Bolt, front engine mount to front axle carrier	*BA22.10-P-1002-03E
21	Remove screws/bolts for front axle carrier (8) from longitudinal members	Replace screw/bolts.
		Bolt, front axle carrier to longitudinal member	*BA33.10-P-1001-01M
22	Lower front axle carrier (8)
23	Disconnect electrical connections on electric power steering electromechanical controller unit and unclip electrical wiring harness from front axle carrier
24	Remove bracket (5b) from electrical refrigerant compressor (A9/5)
25	Detach high voltage plug (5) from electrical A/C compressor (A9/5)
26	Remove bracket (5c) from oil pan (2) and lay high-voltage line (5) outside the working area	The high-voltage line (5) should be protected against excessive fouling and against getting damaged. If the high-voltage line (5) is damaged the high-voltage distributor must be replaced completely.
		Bolt, bracket for high-voltage electrical line to oil pan	*BA54.10-P-1005-02C
27	Remove electrical line circuit 30 (4) from power electronics control unit (N129/1)	Ensure contact surfaces are absolutely clean. Contact problems and therefore damage to the high-voltage system can occur otherwise. Ensure correct seating of the electrical line circuit 30 (4).
		Nut, electrical line circuit 30 to power electronics	*BA08.20-P-1003-01D
28	Remove bracket (4a) from the oil pan (2) and place electrical line circuit 30 (4) to one side
29	Remove clamp (6a) and bracket (6b) from oil pan (2)
30	Detach transmission fluid lines (6) at the connections (7) from transmission and set aside	Before disconnecting, the area around the transmission oil lines (6) must be cleaned thoroughly in the area of the connections (7). Even the smallest dirt particles in the hydraulic components otherwise can lead to malfunctions and total failure of the transmission. Do not kink or bend the transmission fluid lines. Leaks and damage may occur otherwise. Collect escaping gear oil and seal the line connections.
		Bolt, transmission oil line to transmission	*BA27.10-P-1009-04G
		Record plug	Figure
31	Remove screw/bolts (1a) and take off oil pan bottom section (1)		AR01.45-P-7500-04MM
	Notes on sealant path for oil pan		AH01.45-P-0001-01MMA
		Bolt, oil pan bottom section to oil pan	*BA01.45-P-1003-01E
		Loctite 5970 sealant	*BR00.45-Z-1013-01A
32	Remove screw/bolts (2a, 2b)	Pay attention to different lengths of screw/bolts.
		Screw/bolt, oil pan to crankcase at transmission end	*BA01.45-P-1002-01E
		Screw/bolt, oil pan to crankcase/timing case cover/rear end cover	*BA01.45-P-1001-01E
33	Release oil pan (2) from cylinder crankcase (3) and remove to rear		AR01.45-P-7500-04MM
	Notes on sealant path for oil pan		AH01.45-P-0001-01MMA
		Loctite 5970 sealant	*BR00.45-Z-1013-01A
	Clean
34	Clean sealing surfaces on oil pan bottom section (1), oil pan (2) and cylinder crankcase (3)	Do not use any sharp-edged tools or abrasive paper. The sealing surfaces can get damaged otherwise.
		Loctite 7200	*BR00.45-Z-1038-04A
		Loctite 7063 cleaning spray (150 ml)	*BR00.45-Z-1046-04A
35	Install in the reverse order
	Check
36	Check engine oil level and correct if necessary
			AP18.00-P-0101CWZ
37	Check transmission oil level; correct if necessary		AR27.00-P-0270EH
38	Check cooling system for leaktightness		AR20.00-P-1010EL
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
39	Carry out engine test run, while doing so check the engine and transmission for leaktightness and proper function
40	Perform wheel alignment check		AR40.20-P-0200EW

OIL PAN

Number	Designation			ENGINE 276
BA01.45-P-1001-01E	Screw/bolt, oil pan to crankcase/timing case cover/rear end cover	M6	Nm	9

OIL PAN

Number	Designation			ENGINE 276
BA01.45-P-1002-01E	Screw/bolt, oil pan to crankcase at transmission end	M8	Nm	20

OIL PAN

Number	Designation		ENGINE 276
BA01.45-P-1003-01E	Bolt, oil pan bottom section to oil pan	Nm	14

CONTROL UNITS

Number	Designation			ENGINE 156, 157, 271, 272, 273, 274, 276, 278, 642, 651 in MODEL 212
BA08.20-P-1003-01D	Nut, electrical line circuit 30 to power electronics	M8	Nm	14

AIR FILTER

Number	Designation		ENGINE 276.9
BA09.10-P-1001-01M	Bolt, air filter to cylinder head cover	Nm	9

AIR FILTER

Number	Designation		ENGINE 276.9
BA09.10-P-1002-01M	Bolt, air filter to air intake pipe support brace	Nm	9

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation			MODEL 212
BA22.10-P-1002-03E	Bolt, front engine mount to front axle carrier	M8	Nm	28

COMPLETE AUTOMATIC TRANSMISSION

Number	Designation		TRANSMISSION 724.2
BA27.10-P-1009-04G	Bolt, transmission oil line to transmission	Nm	12

FRONT AXLE TORSION BAR

Number	Designation		MODEL 212
BA32.20-P-1001-02P	Nut, link rod to stabilizer bar	Nm	98

FRONT AXLE CARRIER

Number	Designation		MODEL 212
BA33.10-P-1001-01M	Bolt, front axle carrier to longitudinal member	Nm	180

TIE ROD

Number	Designation			MODEL 212
BA46.40-P-1001-01N	Self-locking nut, tie rod to steering knuckle	Stage 1	Nm	50
BA46.40-P-1001-01N	Self-locking nut, tie rod to steering knuckle	Stage 2	∠°	90

HIGH-VOLTAGE BATTERY

Number	Designation		MODEL 212
BA54.10-P-1005-02C	Bolt, bracket for high-voltage electrical line to oil pan	Nm	11

FRAME FLOOR ASSEMBLY

Number	Designation		MODEL 212
BA61.10-P-1004-01H	Bolt, diagonal strut mount to front axle carrier/longitudinal member	Nm	60

Fig 4: Identifying Retainer Device (129 589 01 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Puller (221 589 05 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Puller (221 589 00 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Thrust Piece (171 589 00 34 00)

Courtesy of MERCEDES-BENZ USA

Fig 8: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 9: Identifying Press (163 589 03 43 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1013-01A	Loctite 5970 sealant	A 003 989 98 20
BR00.45-Z-1038-04A	Loctite 7200	Henkel Loctite Deutschland GmbH
BR00.45-Z-1046-04A	Loctite 7063 cleaning spray (150 ml)	A 001 986 71 71 10
