Disassembling And Assembling Sliding Door - AR72.16-S-2210E
Model 447, 448
Shown On model 447.7 With Code SH8 (Window airbags for driver, passenger and rear) and With Code V23 (Interior trim, luxury version)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Disassemble | |||
| 1 | Remove sliding door | AR72.16-S-1260E | |
| 2.1 | Remove passenger compartment side window | Model 447, 448 with code W16 (Window front left, fixed, in sidewall/sliding door) Model 447, 448 with code W17 (Window front right, fixed, in sidew./sliding door) |
AR67.30-S-2700E |
| 2.2 | Completely remove side window | Model 447.7/8 with code W18 (Sliding window front left in sidew./sliding door) Model 447.7/8 with code W19 (Sliding window front right in sidew./sliding door) |
AR67.30-S-5311E |
| 3 | Remove decorative foil from window frame on sliding door | AR72.16-S-0001E | |
| 4 | Remove mounting rail on longitudinal member panel on sliding door | Model 447.8, 448.8 with code CN1 (Exterior rocker panel) | AR88.80-S-6005CH |
| 5 | Remove door stopper | Model 447.6 | AR72.16-S-6000E |
| 6 | Remove door lock | AR72.16-S-4035E | |
| 7 | Remove electric sliding door closing assist motor | Model 447.7/8, 448.8 with code T56 (Electric operation of sliding door on left) Model 447.7/8, 448 with code T55 (Electric operation of sliding door on right) |
AR72.29-S-8780E |
| 8 | Remove outer door handle from sliding door | AR72.16-S-2220E | |
| 9 | Remove sliding door lock actuation | AR72.16-S-4040E | |
| 10 | Remove lower door guide for sliding door | AR72.16-S-7843E | |
| 11 | Remove upper door guide for sliding door | AR72.16-S-7841E | |
| 12 | Remove center carriage | AR72.16-S-2230E | |
| 13 | Remove power cable chain for sliding door | Model 447.7/8, 448.8 with code SH8 (Window airbags for driver, front passenger and rear) Model 447.7/8, 448.8 with code T56 (Electric operation of sliding door on left) Model 447.7/8, 448 with code T55 (Electric operation of sliding door on right) Model 447.8, 448.8 with code E65 (Burmester® surround sound system) Model 447.8, 448.8 with code LC1 (ambient lighting) |
AR54.18-S-0001E |
| 14 | Remove obstruction sensor strip for electric sliding door | Model 447.7/8, 448.8 with code T56 (Electric operation of sliding door on left) Model 447.7/8, 448 with code T55 (Electric operation of sliding door on right) |
AR72.29-S-5890E |
| 15 | Remove electric controller unit for sliding door | AR72.16-S-4037E | |
| 16 | Remove side deployment pressure sensor (8) | Model 447, 448 with code SH8 (Window airbags for driver, front passenger and rear) | AR91.60-S-0760E |

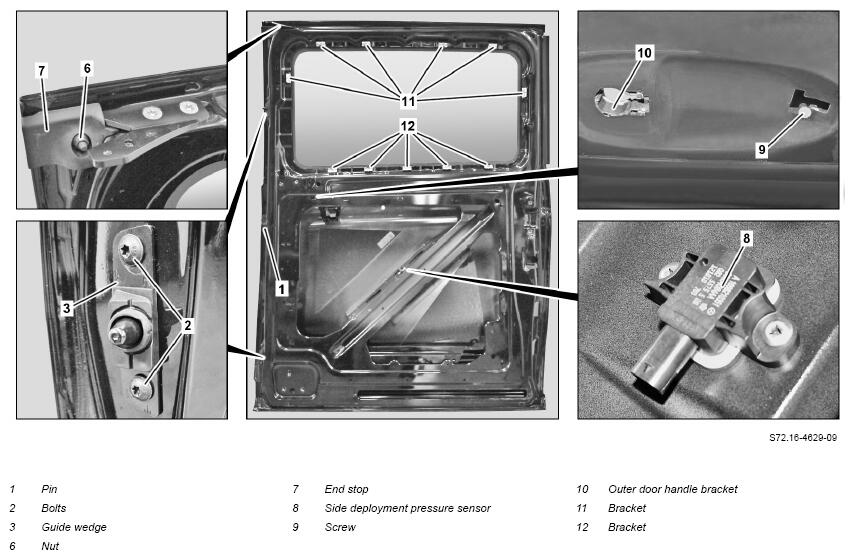

| 17 | Unscrew bolt (1) | ||
| 18 | Unscrew bolts (2) and remove guide wedges (3) | ||
| 19 | Unscrew nut (6) and remove stop (7) | ||
| 20 | Loosen bolt (9) and remove outer door handle bracket (10) | ||
| 21 | Remove bracket (11, 12) | Model 447.7, 448.7 with code V23 (Interior trim, premium version) Model 447.8, 448.8 |
Fig 1 |

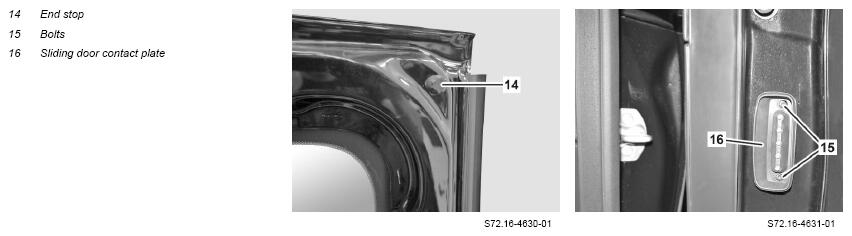

| 22 | Unscrew end stop (14) | ||
| 23 | Unscrew bolts (15) and remove sliding door contact plate (16) | Model 447.6 Model 447.7, 448.7 except code LC1 (ambient lighting) except code SH8 (Window airbags for driver, front passenger and rear) except code T55 (Electric operation of sliding door on right) except code T56 (Electric operation of sliding door on left) Model 447.8, 448.8 except code E65 (Burmester® surround sound system) except code LC1 (ambient lighting) except code SH8 (Window airbags for driver, front passenger and rear) except code T55 (Electric operation of sliding door on right) except code T56 (Electric operation of sliding door on left) |
|

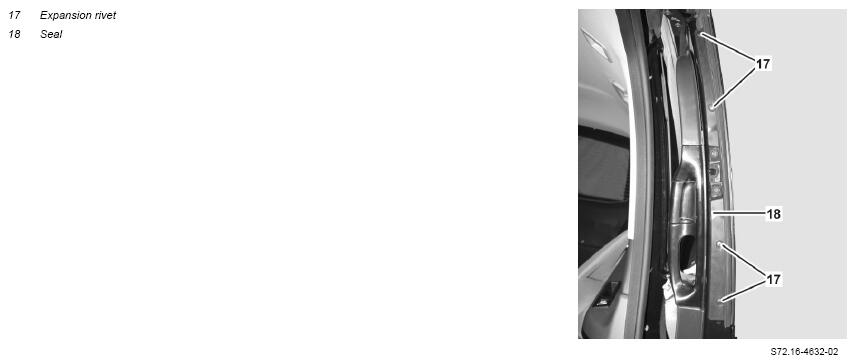

| 24 | Remove expansion rivet (17) and seal (18) | Model 447.7, 448.7 except code SH8 (Window airbags for driver, front passenger and rear) except code T55 (Electric operation of sliding door on right) except code T56 (Electric operation of sliding door on left) Model 447.8, 448.8 except code E65 (Burmester® surround sound system) except code LC1 (ambient lighting) except code SH8 (Window airbags for driver, front passenger and rear) except code T55 (Electric operation of sliding door on right) except code T56 (Electric operation of sliding door on left) |
|
| Assemble | |||
| 25 | Install insulation mats and retaining clips in new sliding door | When replacing sliding door. | AR72.16-S-2210-01E |
| 26 | Mount bracket for trim piece on sliding door | When replacing sliding door. Model 447.8## ## up to 106313 with code VQ1 (AVANTGARDE) |
AR88.85-S-9845-01E |
| Model 447.8## ## as of 106314 with code VQ1 (AVANTGARDE) Model 448.8 |
AR88.85-S-9845-01EE | ||
| Teroson PU 6800 adhesive | *BR00.45-Z-1147-02A | ||
| Fig 2 | |||
| 27 | Position seal (18) and install expansion rivet (17) | Model 447.7, 448.7 except code SH8 (Window airbags for driver, front passenger and rear) except code T55 (Electric operation of sliding door on right) except code T56 (Electric operation of sliding door on left) Model 447.8, 448.8 except code E65 (Burmester® surround sound system) except code LC1 (ambient lighting) except code SH8 (Window airbags for driver, front passenger and rear) except code T55 (Electric operation of sliding door on right) except code T56 (Electric operation of sliding door on left) |
|
| 28 | Position sliding door contact plate (16) and tighten bolts (15) | Model 447.6 Model 447.7, 448.7 except code LC1 (ambient lighting) except code SH8 (Window airbags for driver, front passenger and rear) except code T55 (Electric operation of sliding door on right) except code T56 (Electric operation of sliding door on left) Model 447.8, 448.8 except code E65 (Burmester® surround sound system) except code LC1 (ambient lighting) except code SH8 (Window airbags for driver, front passenger and rear) except code T55 (Electric operation of sliding door on right) except code T56 (Electric operation of sliding door on left) |
|
| 29 | Install stop (14) | ||
| 30 | Attach brackets (11, 12) | Model 447.7, 448.7 with code V23 (Interior trim, premium version) Model 447.8, 448.8 |
|
| 31 | Install outer door handle bracket (10) and tighten bolt (9) | ||
| 32 | Position stop (7) and tighten nut (6) | ||
| 33 | Position guide wedges (3) and tighten bolts (2) | ||
| 34 | Tighten pin (1) | ||
| 35 | Install side deployment pressure sensor (8) | Model 447, 448 with code SH8 (Window airbags for driver, front passenger and rear) | AR91.60-S-0760E |
| 36 | Install electrical controller unit on sliding door | AR72.16-S-4037E | |
| 37 | Install obstruction sensor strip on electric sliding door | Model 447.7/8, 448.8 with code T56 (Electric operation of sliding door on left) Model 447.7/8, 448 with code T55 (Electric operation of sliding door on right) |
AR72.29-S-5890E |
| 38 | Install power cable chain for sliding door | Model 447.7/8, 448.8 with code SH8 (Window airbags for driver, front passenger and rear) Model 447.7/8, 448.8 with code T56 (Electric operation of sliding door on left) Model 447.7/8, 448 with code T55 (Electric operation of sliding door on right) Model 447.8, 448.8 with code E65 (Burmester® surround sound system) Model 447.8, 448.8 with code LC1 (ambient lighting) |
AR54.18-S-0001E |
| 39 | Install center sliding carriage | AR72.16-S-2230E | |
| 40 | Install upper door guide for sliding door | AR72.16-S-7841E | |
| 41 | Install lower door guide for sliding door | AR72.16-S-7843E | |
| 42 | Install sliding door lock actuation | AR72.16-S-4040E | |
| 43 | Install outer door handle on sliding door | AR72.16-S-2220E | |
| 44 | Install electric sliding door closing assist motor | Model 447.7/8, 448.8 with code T56 (Electric operation of sliding door on left) Model 447.7/8, 448 with code T55 (Electric operation of sliding door on right) |
AR72.29-S-8780E |
| 45 | Install door lock | AR72.16-S-4035E | |
| 46 | Install door stopper | Model 447.6 | AR72.16-S-6000E |
| 47 | Install new dowels for mounting rail on longitudinal member panel on sliding door | If sliding door is replaced. Model 447.8, 448.8 with code CN1 (Exterior rocker panel) |
AR88.80-S-6005-01CH |
| Teroson PU 6800 adhesive | *BR00.45-Z-1147-02A | ||
| 48 | Install mounting rail on longitudinal member panel on sliding door | Model 447.8, 448.8 with code CN1 (Exterior rocker panel) | AR88.80-S-6005CH |
| 49 | Glue decorative foil to window frame on sliding door | AR72.16-S-0001E | |
| 50.1 | Completely install sliding window | Model 447.7/8 with code W18 (Sliding window front left in sidew./sliding door) Model 447.7/8 with code W19 (Sliding window front right in sidew./sliding door) |
AR67.30-S-5311E |
| 50.2 | Install passenger compartment side window | Model 447, 448 with code W16 (Window front left, fixed, in sidewall/sliding door) Model 447, 448 with code W17 (Window front right, fixed, in sidew./sliding door) |
AR67.30-S-2700E |
| 51 | Install sliding door | AR72.16-S-1260E |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1147-02A | Teroson PU 6800 adhesive | A 000 989 15 02 09 |
