Remove/Install Energy Chain For Sliding Door - AR54.18-S-0001E

Model 447.7/8, 448.8

With Code SH8 (Window Airbags for driver, front passenger and rear)

Model 447.7/8, 448.8

With Code T56 (Electric operation of sliding door on left)

Model 447.7/8, 448

With Code T55 (Electric operation of sliding door on right)

Model 447.8, 448.8

With Code E65 (Burmester® surround sound system)

Model 447.8, 448.8

With Code LC1 (ambient lighting)

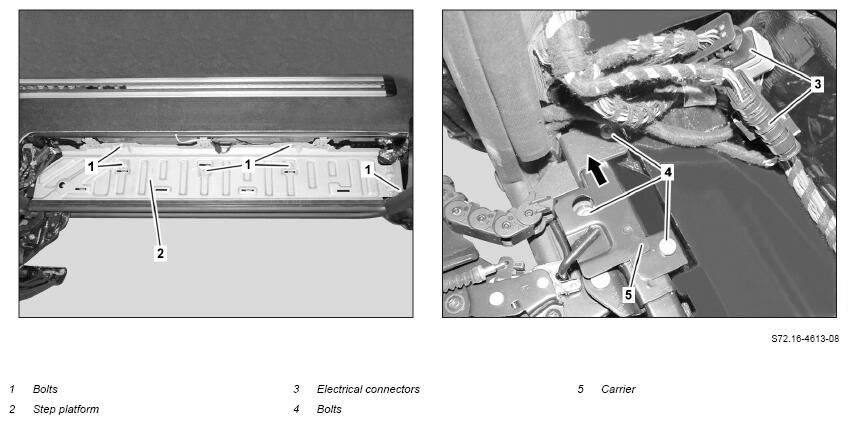

G16507151Courtesy of MERCEDES-BENZ USA

Shown on Model 447.8 With Code T55 (Electrical actuation for right sliding door)

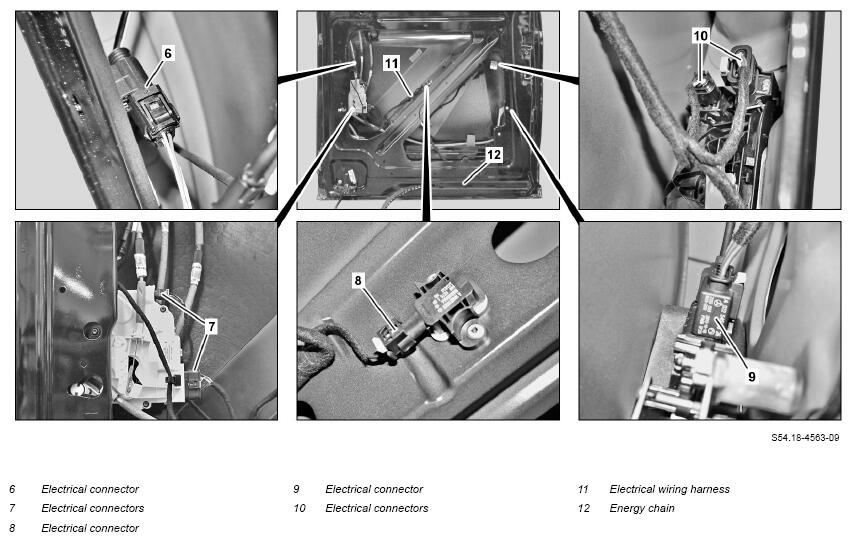

G16507152Courtesy of MERCEDES-BENZ USA

Shown on Model 447.8 With Code T55 (Electrical actuation for right sliding door)

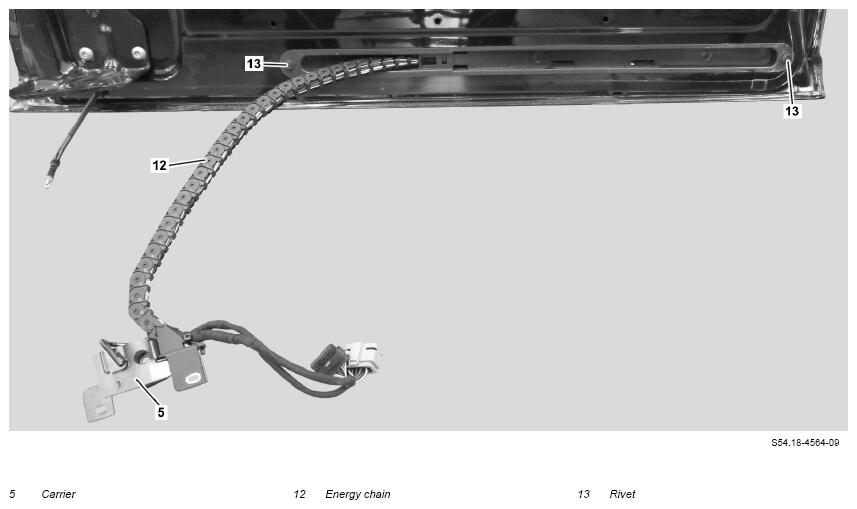

G16507153Courtesy of MERCEDES-BENZ USA

Shown on removed right sliding door

WARNING Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
REMOVINGINSTALLING Remove/install
1.1 Remove fuse 74 on left electric sliding door Model 447.7/8, 448.8
with code T56 (Electric operation of sliding door on left)

REFER TO BASIC KNOWLEDGE Assignment of right footwell firewall fuse and relay module   GF54.15-S-1256-39TRA
1.2 Remove fuse 311 on right electric sliding door Model 447.7/8, 448
with code T55 (Electric operation of sliding door on right)

REFER TO BASIC KNOWLEDGE Assignment of fuse and relay module, right A-pillar   GF54.15-S-1256-38TRA
2 Remove door sill from left or right sliding door   AR68.30-S-1312E
3 Unscrew screws/bolts (1) and remove running board (2)   AR88.30-S-2400E
4 Release bracket of electrical connectors (3) from body
5 Detach electrical connections (3) IMPORTANT The number of electrical connections (3) varies depending on equipment installed.
6 Remove bolt (4)
7 Move carrier (5) in direction of arrow and remove in upward direction
8 Remove sliding door panel   AR72.16-S-6610E
9 Take off door foil
10 Detach electrical connectors (6, 9)
11 Disconnect electrical connections (7)
12 Disconnect electrical connector (8)
13 Disconnect Electrical connections (10)
14 Remove electrical wiring harness (11) from sliding door
15 Move sliding door to corresponding position and drill out rivet (13) using angular drill IMPORTANT The rear rivet (13) is accessible if the sliding door is in the area between the rear wheel and the wheel arch.
INSTALLATION IMPORTANT : Install rivets (13) using a commercially available hand riveter.

16 Remove energy chain (12)
17 Detach carrier (5) from energy chain (12) If carrier (5) or energy chain (12) is replaced.
18 Install in the reverse order.
INSPECT Check
19 Perform function check of all electrical components in repair area
