Remove/Install Sliding Door Outer Door Handle - AR72.16-S-2220E
Model 447, 448
| Remove/install | |||
| 1.1 | Remove fuse 74 on left electric sliding door | Model 447.7/8, 448.8 with code T56 (Electric operation of sliding door on left) If door handle (4) is being removed on left electric sliding door. |
|
| Assignment of right footwell firewall fuse and relay module | GF54.15-S-1256-39TRA | ||
| 1.2 | Remove fuse 311 on right electric sliding door | Model 447.7/8, 448 with code T55 (Electric operation of sliding door on right) If door handle (4) is being removed on right electric sliding door. |
|
| Assignment of fuse and relay module, right A-pillar | GF54.15-S-1256-38TRA | ||

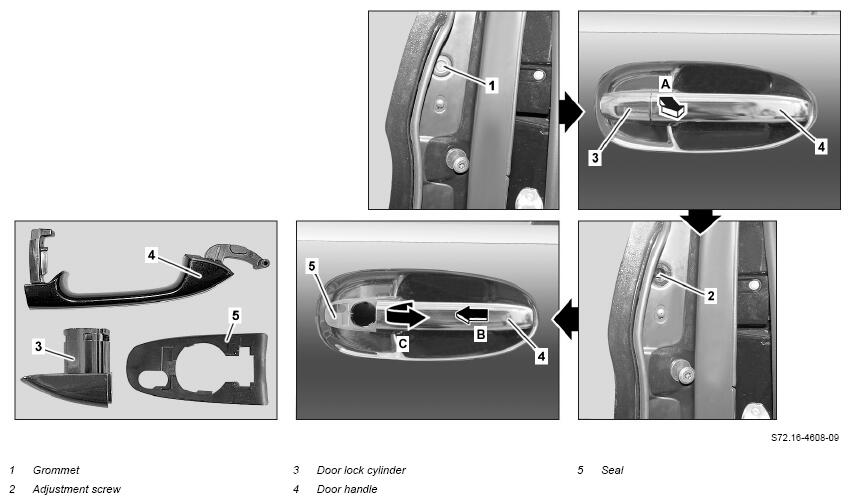

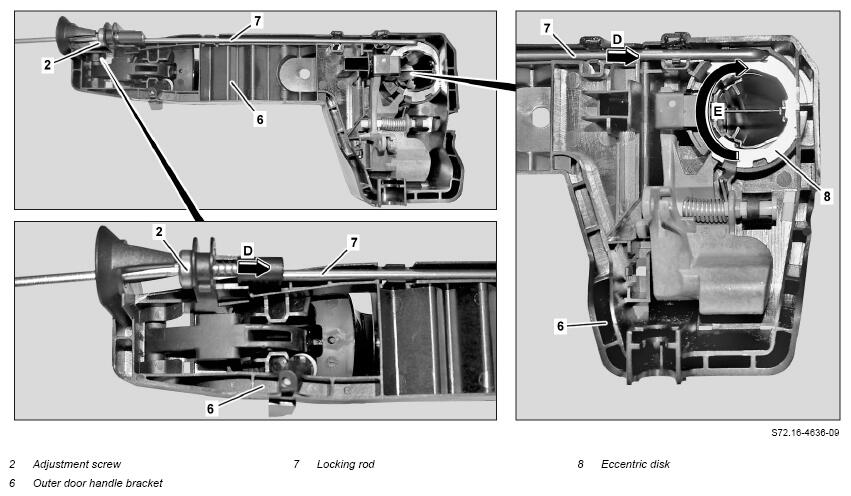

| 2 | Remove grommet (1) | ||
| 3 | Remove door handle (4) in direction of arrow (arrow A) and release adjustment screw (2) by approx. 4 to 5 revolutions | ||
| 4 | Remove door lock cylinder (3) | ||
| 5 | Pull door handle (4) toward rear out of outer door handle bracket (6) in direction of arrow (arrow B) and remove in direction of arrow (arrow C) | ||
| 6 | Remove seal (5) | If seal (5) is damaged. ↓ Install new seal (5). |
|
| 7 | Install in the reverse order. | ||
| Check | |||
| 8 | Perform function check of door handle (4) |
