Remove/Install Sliding Door Stopper - AR72.16-S-6000E
Model 447.6
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||

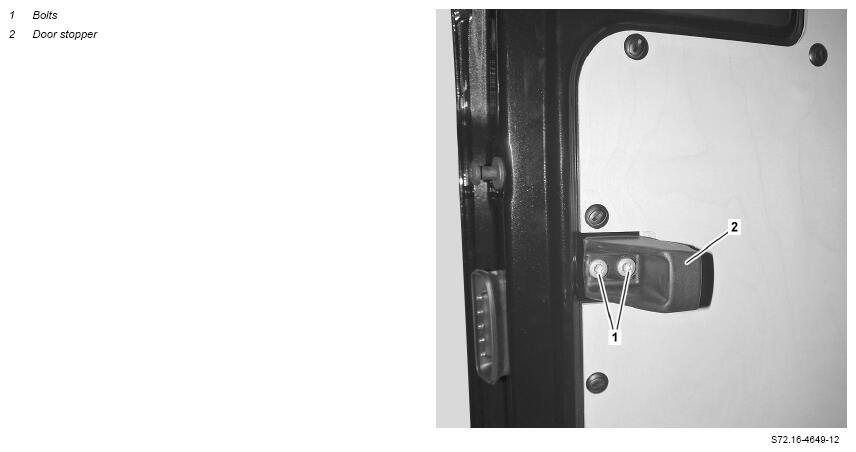

| 1 | Remove bolts (1) | *BA72.16-Z-1007-01KOJ | |
| 2 | Remove door stopper (2) | ||
| 3 | Install in the reverse order |
SLIDING DOORS
| Number | Designation | Model 447, 448 | |
|---|---|---|---|
| BA72.16-Z-1007-01KOJ | Bolt at door hinge | Nm | 23 |
