Remove/Install Electric Sliding Door Closing Assist Motor - AR72.29-S-8780E
Model 447.7/8, 448.8
With Code T56 (Electric operation of sliding door on left)
Model 447.7/8, 448
With Code T55 (Electric operation of sliding door on right)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||
| 1 | Remove door trim from corresponding sliding door (5) | AR72.16-S-6610E | |
| 2 | Remove sliding door trim | ||

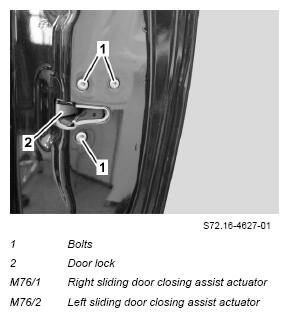

| 3 | Remove screw/bolts (1) | *BA72.16-Z-1010-01KOJ | |
| 4 | Remove bolts (3) | ||
| 5 | Remove door lock (2) together with right sliding door closing assist actuator (M76/1) or left sliding door closing assist actuator (M76/2) | ||
| 6 | Disconnect electrical connector (6) | ||
| 7 | Remove cable (4) from door lock (2) | ||
| 8 | Install in the reverse order | ||
| Check | |||
| 9 | Check door lock (2) in sliding door (5) for proper function |
SLIDING DOORS
| Number | Designation | Model 447, 448 | |
|---|---|---|---|
| BA72.16-Z-1010-01KOJ | Screw/bolt, door lock to door | Nm | 10 |
