Replace Decorative Foil On Sliding Door Window Frame - AR72.16-S-0001E

Model 447, 448

Courtesy of MERCEDES-BENZ USA

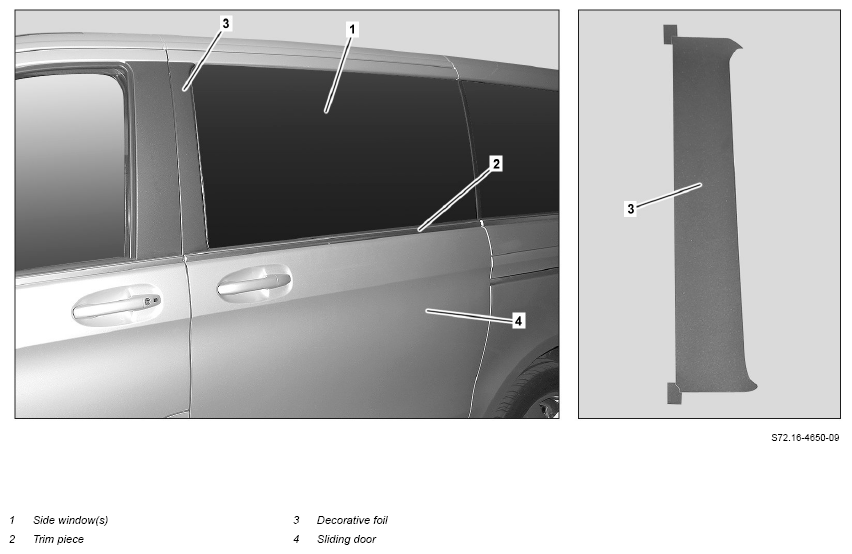

Shown On left side of vehicle on model 447.8 With Code T19 (Left sliding door) and With Code VQ1 (AVANTGARDE)

	Remove
1	Remove trim piece (2) from sliding door (4)	Model 447.8 with code VQ1 (AVANTGARDE) Model 448.8	AR88.85-S-9845E
2	Remove side window (1) from sliding door (4)	Model 447, 448 with code W16 (Window front left, fixed, in sidewall/sliding door) Model 447, 448 with code W17 (Window front right, fixed, in sidew./sliding door)	AR67.30-S-2700E
3	Heat rear decorative foil (3) with hot air gun and remove from sliding door (4)
	Clean
4	Clean bonding surface on sliding door (4)	The bonding surface must be absolutely free of dust and grease. Otherwise adhesion problems can occur. Cleaner	*BR00.45-Z-1025-04A
	Install
5	Remove protective foil from rear decorative foil (3)
6	Align decorative foil (3) in cutout of side window (1) and glue on	Glue on decorative foil (3) in increments and simultaneously smooth with squeegee. Otherwise air bubbles can occur below the decorative foil (3).
7	Install side window (1) on sliding door (4)	Model 447, 448 with code W16 (Window front left, fixed, in sidewall/sliding door) Model 447, 448 with code W17 (Window front right, fixed, in sidewall/sliding door)	AR67.30-S-2700E
8	Install trim piece (2) on sliding door (4)	Model 447.8 with code VQ1 (AVANTGARDE) Model 448.8	AR88.85-S-9845E
