Remove/Install Sliding Door Lock Actuation - AR72.16-S-4040E
Model 447, 448
Shown On model 447.8
Shown On model 447.6
Shown On Model 447.8 With Code T55 (Electrical actuation for right sliding door)
Model 447.7 With Code ZH6 (Marco Polo ACTIVITY)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||
| 1.1 | Remove fuse 74 on left electric sliding door | Model 447.7/8, 448.8 with code T56 (Electric operation of sliding door on left) When removing left door lock actuation (2). |
|
| Assignment of right footwell firewall fuse and relay module | GF54.15-S-1256-39TRA | ||
| 1.2 | Remove fuse 311 on right electric sliding door | Model 447.7/8, 448 with code T55 (Electric operation of sliding door on right) When removing right door lock actuation (2). |
|
| Assignment of fuse and relay module, right A-pillar | GF54.15-S-1256-38TRA | ||
| 2 | Remove inner paneling from window frame on sliding door | Model 447.7, 448.7 with code V23 (Interior trim, premium version) Model 447.8, 448.8 |
AR72.16-S-6613E |
| 3.1 | Remove sliding door panel | Model 447.7, 448.7 with code V23 (Interior trim, premium version) Model 447.8, 448.8 |
AR72.16-S-6610E |

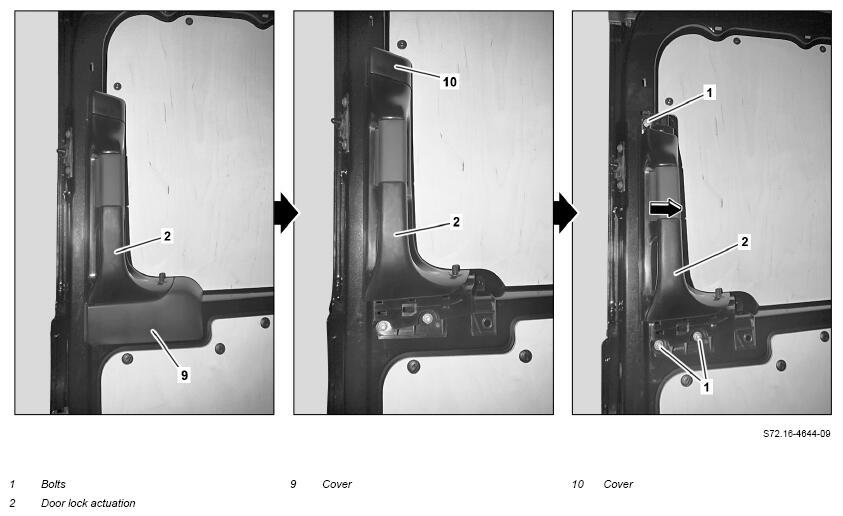

| 3.2 | Remove covers (9, 10) | Model 447.6 Model 447.7, 448.7 except code V23 (Interior trim, premium version) |
Fig 1 |

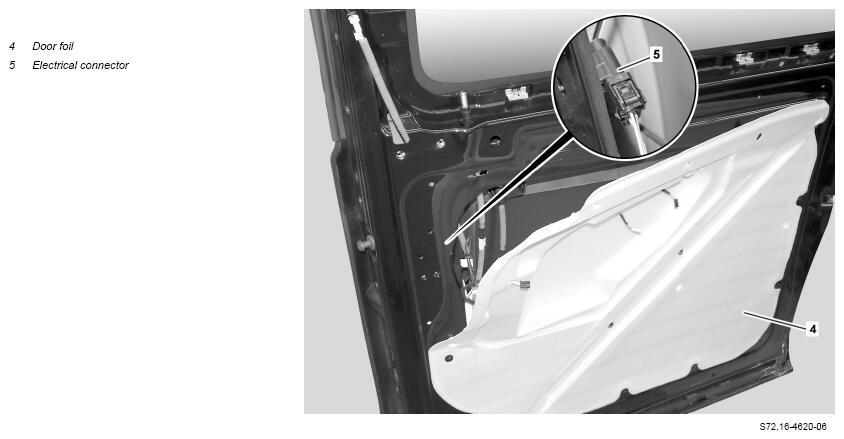

| 4 | Detach door foil (4) in front area of sliding door as shown | Model 447.7/8, 448.8 with code T56 (Electric operation of sliding door on left) Model 447.7/8, 448 with code T55 (Electric operation of sliding door on right) |
|
| 5 | Disconnect electrical connection (5) | Model 447.7/8, 448.8 with code T56 (Electric operation of sliding door on left) Model 447.7/8, 448 with code T55 (Electric operation of sliding door on right) |
|
| 6 | Loosen electrical controller unit from sliding door | AR72.16-S-4037E | |

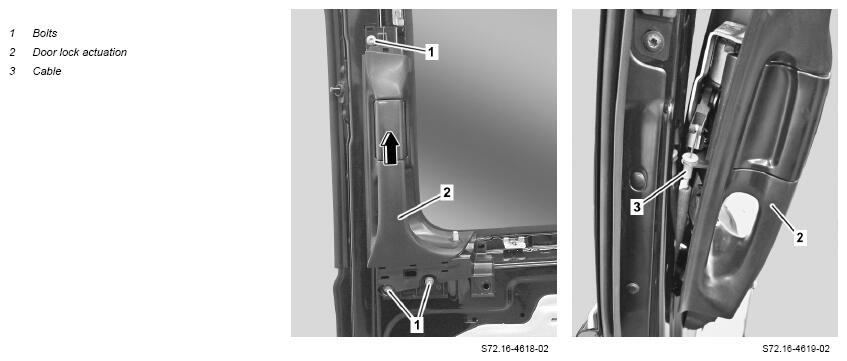

| 7 | Remove screw/bolts (1) | ||
| 8 | Move door lock actuation (2) out of sliding door in direction of arrow and remove until cable (3) is accessible | ||
| 9 | Unhook cable (3) | ||

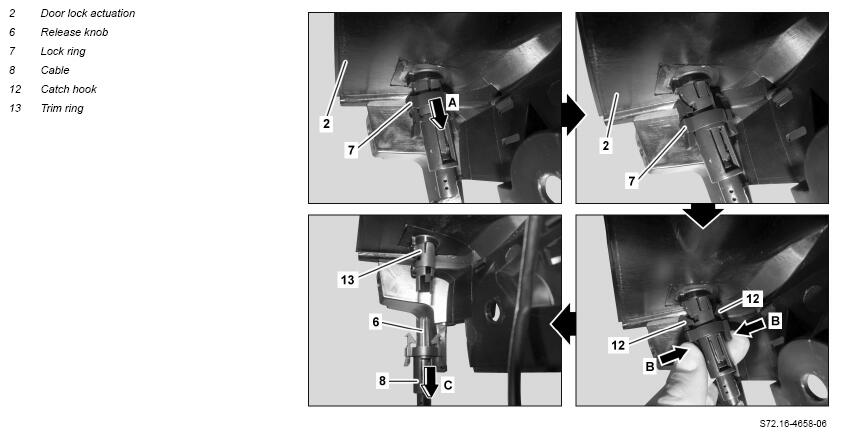

| 10 | Move lock ring (7) in direction of arrow (arrow A) | ||
| 11 | Open catch by pressing the catch hook (12) together in the lower area (arrows B) and remove cable (8) together with release button (6) from trim ring (13) in direction of arrow (arrow C) | ||
| 12 | Remove door lock actuation (2) | ||

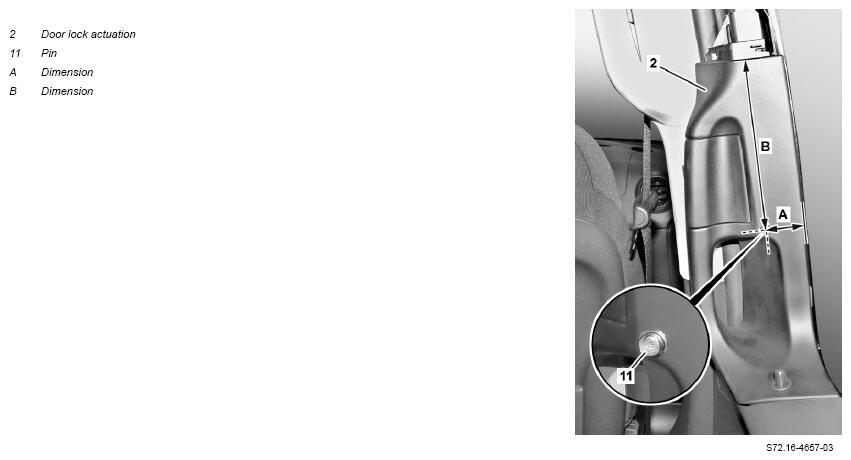

| 13 | Drill ø 4.2 mm bore for pin (11) on door lock actuation (2) | Model 447.7 with code ZH6 (Marco Polo ACTIVITY) When replacing door lock actuation (2). Dimension (B): 155 mm Dimensions (A, B) measured at an angle of 90° from outer edges of door lock actuation (2). |
|
| 14 | Install pins (11) with blind rivets on door lock actuation (2) | Model 447.7 with code ZH6 (Marco Polo ACTIVITY) When replacing door lock actuation (2). |
|
| 15 | Install in the reverse order. | ||
| Check | |||
| 16 | Check door lock actuation (2) for proper function |
