Remove/Install Dowel For Mounting Rail Of Longitudinal Member Panel - AR88.80-S-6005-01CH
Model 447, 448.8
| Notice | Notes on removing adhesive residues and foils on paint and metal surfaces with surface conditioning disks | AH00.00-P-0013-01AK |
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1012-07A | Primer stick | A 000 986 27 50 |
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
| BR00.45-Z-1147-02A | Teroson PU 6800 adhesive | A 000 989 15 02 09 |
| BR00.45-Z-1179-02A | Primer Teroson 150 (Terokal 150) | Henkel AG & Co. KGaA http://www.loctite.de |
Remove
- Remove corresponding dowel (1) with suitable tool.
Shown as example on right sliding door
Install
- Coarsely remove adhesive residues on assembly point of dowel (1) with sharp knife.
Carefully remove coarse adhesive residues without touching primer.
Otherwise the primer can be damaged.
- Completely remove remaining adhesive with surface conditioning disk.
Commercially available devices/tools
Surface conditioning disk ø 100 mm

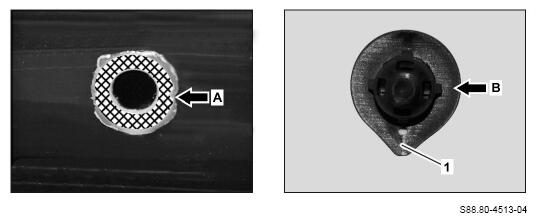

- Clean surface (arrow A) on mounting location of dowel (1).
- Check bonding surface (arrow A) after cleaning for adhesive residues.
If adhesive residues are present.
↓
Remove adhesive residues with surface conditioning disk.
- Clean bonding surface (arrow A) at assembly point of dowel (1) and bonding surface (arrow B) on dowel (1).
Adhesion problems and leaks will occur otherwise.
- Check primer on bonding surface (arrow A) for damage.
If primer is damaged.
↓
Repair primer on adhesive surface (arrow A).
Otherwise adhesive problems can occur.
- Apply primer to bonding surface (arrow B) on dowel (1).
- Apply adhesive to bonding surface (arrow A) on mounting location of dowel (1) all the way around and without gaps.
- Glue in dowel (1) at corresponding point by observing installation location.
Adhesion problems and leaks will occur otherwise.
Do not stress dowel (1) mechanically during this time.
Adhesion problems and leaks will occur otherwise.
