Service Sheet For Mercedes-Benz Maintenance System (USA) - AP00.20-U-1208EJ
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118.346/347/351/353
as of model year 2022 up to model year 2023
MODIFICATION NOTES

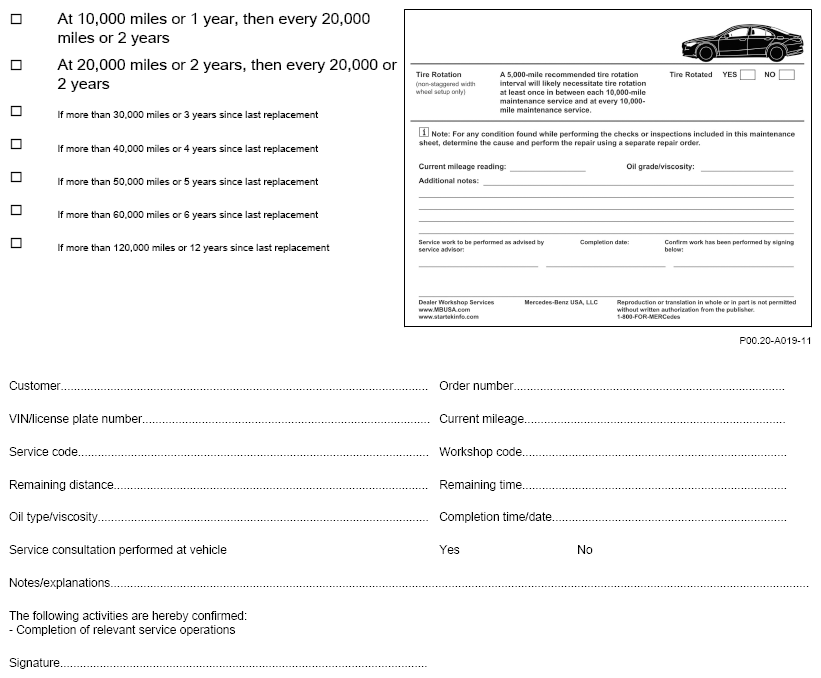

| 07.02.2023 | P-2374-118-22B (02/23) | References revised | |
| 07.02.2023 | P-2374-118-22A (05/21) | Initial version |
| A | A | Input condition not OK: | ⓧ | ||
|---|---|---|---|---|---|
| Completed | |||||
| [X] | [X] | ||||
| Required Service Work | |||||
| □ | □ | Reset maintenance service indicator in instrument cluster | - Read out maintenance data from instrument cluster and reset service indicator Except CODE 521/525 (Connect 20 mid/high (NTG7)) |
□ | - AP00.20-P-0043F |
| Read out maintenance data from instrument cluster and reset service indicator With CODE 521/525 (Connect 20 mid/high (NTG7)) |
AP00.20-P-0043L | ||||
| □ | □ | Replace engine oil and filter | □ | ||
| Engine oil and oil filter change Engine 260 | AP18.00-P-0101MFA | ||||
| Engine oil and oil filter change Engine 139 | AP18.00-P-0101MFC | ||||
| □ | Replace activated charcoal combination filter | Replace activated charcoal particle filter | □ | AP83.00-P-8350MFA | |
| □ | Replace brake fluid | Replace brake fluid |
□ | AP42.00-P-4280E | |
| □ | Perform brake test | Brake test | □ | AP42.00-P-4290BA | |
| □ | □ | Check brake system fluid level and correct if necessary | Brake system - inspect fluid level | ◦ | AP42.10-P-4210D |
| □ | □ | Check thickness of brake pads, front and rear | ◦ | ||
| Assess condition of brake linings | AP42.10-P-4252CLA | ||||
| □ | □ | Correct tire inflation pressure including spare (where applicable) and enter in the table at the end of the service sheet | Check/correct tire pressure | □ | AP40.15-P-4061A |
| □ | □ | Check main circuit coolant fluid level and correct if necessary | Check main circuit coolant level Engine 139 | ◦ | AP20.30-P-2050T |
| Check main circuit coolant level | AP20.30-P-2050R | ||||
| Engine 260 |
|||||
| □ | □ | Check low-temperature coolant fluid level and correct if necessary | Check low-temperature circuit coolant level Engine 139 | ◦ | AP20.30-P-2052P |
| □ | □ | Check windshield washer system fluid level and correct if necessary | Windshield washer system - inspect fluid level, adjust to correct level | ◦ | AP82.35-P-8210D |
| □ | □ | Check catch, safety catch and hinges on engine hood for proper operation | ◦ | ||
| □ | □ | Check first aid kit | Check first aid kit | ◦ | AP68.00-P-6850EW |
| □ | Check vehicle underside for damage and leakage | ◦ | |||
| Check all visible parts of vehicle underside for damage and fluid loss | |||||
| □ | Check condition of poly-V-belt | - Check visible area of poly-V belt for wear Engine 260 |
◦ | - AP13.22-P-1352EW |
|
| Check visible area of poly-V belt for wear Engine 139 |
AP13.22-P-1352C | ||||
| □ | Check all visible parts in engine compartment for damage and leaks | ◦ | |||
| Check all visible parts in engine compartment for damage and fluid loss | AP00.20-P-0055I | ||||
| □ | Check condition of steering mechanical components, rubber boots | ◦ | |||
| □ | Check condition of front axle and front axle ball joints | - Check condition of steering and tie rods |
◦ | - AP46.00-P-4651G |
|
| Check condition of front axle and control arms | AP33.10-P-3358G | ||||
| □ | Check condition of rear axle and rear axle ball joints | - Check condition of rear axle and control arms |
◦ | - AP35.20-P-3552G |
|
| With CODE U54 (compound-link axle) Check condition of rear axle and control arms With CODE U55 (multi-link axle) |
AP35.20-P-3552H | ||||
| □ | Check seal of tank filler recess | Check tank filler recess seal | ◦ | AP47.10-P-4752A | |
| □ | Check condition of propeller shaft and flex disks. | With CODE M005 (4MATIC) Check propeller shaft flex disks for signs of damage and deformation | ◦ | AP41.10-P-4152C | |
| □ | Check condition of suspension struts or shock absorbers and springs. | Check condition of elements for shock absorption and springing | ◦ | AP32.25-P-3255P | |
| □ | □ | Reset maintenance service indicator in instrument cluster | - Read out maintenance data from instrument cluster and reset service indicator Except CODE 521/525 (Connect 20 mid/high (NTG7)) |
□ | - AP00.20-P-0043F |
| Read out maintenance data from instrument cluster and reset service indicator With CODE 521/525 (Connect 20 mid/high (NTG7)) |
AP00.20-P-0043L | ||||
| Recommended Service Work | |||||
| □ | □ | Replace wiper blades | □ | ||
| □ | □ | Check windshield wiper, washer and headlamp washer system operation | Windshield wipers, windshield washer system - operational inspection | ◦ | AP82.35-P-8252H |
| □ | □ | Inspect tires for damage, measure tread depth and enter table at the end of the service sheet | Check tires for damage and crack formations | ◦ | AP40.10-P-4051EW |
| □ | □ | Tire rotation (where applicable) | □ | ||
| □ | □ | Activate Tire Pressure Monitoring System | |||
| □ | |||||
| □ | □ | Check TIREFIT sealant expiration date (where applicable) | ◦ | ||
| □ | □ | Check thickness of brake pads and discs, front and rear wheels removed | Assess condition of brake linings Pads | ◦ | AP42.10-P-4252CLA |
| Assess condition of brake disks Discs | AP42.10-P-4256EW | ||||
| □ | □ | Check TIREFIT tire sealant expiration date (where applicable) | Check TIREFIT tire sealant | ◦ | AP40.10-P-4054R |
| □ | □ | Check brake system components, lines, hoses, calipers | ◦ | ||
| □ | Check headlamp settings, correct if necessary | Check and correct the adjustment of the headlamps | □ | AP82.10-P-8260Y | |
| □ | Check operation of headlamp range adjustment | Check function of headlamp range adjustment | ◦ | AP82.10-P-8250EW | |
| □ | □ | Check all exterior lights | Check exterior lights for proper operation | ◦ | AP82.10-P-8252EW |
| □ | □ | Check warning/indicator lamps | Check warning and function indicators in instrument cluster | ◦ | AP54.30-P-5451F |
| □ | □ | Check illumination and interior lighting | ◦ | ||
| □ | □ | Check trunk/cargo compartment lighting | Check lamps in instrument cluster and interior illumination | ◦ | AP54.30-P-5453F |
| □ | □ | Replace battery for KEYLESS-GO key | □ | ||
| □ | □ | Check horn | With CODE 889 (KEYLESS-GO) |
◦ | |
| □ | □ | Check battery condition. Attach printout to sheet | ◦ | ||
| □ | Check, clean and lubricate mechanism of panorama roof with power tilt/sliding panel (where applicable) | With CODE 413 (panoramic sliding sunroof/glass roof) Panoramic sliding roof - clean and lubricate guide mechanism | □ | AP77.20-P-7732A | |
| □ | Check seat belts and buckles for damage and proper function | ◦ | |||
| □ | Check for body paint damage | ◦ | |||
| □ | Check chassis and load-bearing body components for damage and corrosion | Check outside of vehicle in visible area for signs of damage | ◦ | AP60.00-P-0050Q | |
| □ | Check trailer hitch condition and function | ◦ | |||
| With CODE 550 (trailer hitch) Check condition and operation of trailer hitch | AP31.11-P-3152B | ||||
| Required Additional Work | |||||
| If more than 30, 000 miles or 3 years since last replacement | |||||
| Replace engine air filter | □ | ||||
| Engine 139 Replace air filter element |
AP09.10-P-0980W | ||||
| If more than 50, 000 miles or 5 years since last replacement | |||||
| Replace engine air filter | □ | ||||
| Engine 260 Replace air filter element |
AP09.10-P-0980N | ||||
| If more than 30, 000 miles or 3 years since last replacement | |||||
| Replace automatic transmission oil and filter | □ | ||||
| Engine 139 Dual-clutch transmission, perform oil and oil filter change |
AP27.00-P-2707MFA | ||||
| If more than 60, 000 miles or 6 years since last replacement | |||||
| Replace automatic transmission oil and filter | □ | ||||
| Engine 260 Dual-clutch transmission, perform oil and oil filter change Transmission 724.0 |
AP27.00-P-2707NK | ||||
| Dual-clutch transmission, perform oil and oil filter change Transmission 724.1 | AP27.00-P-2707MFA | ||||
| If more than 30, 000 miles or 3 years since last replacement | |||||
| Replace rear axle oil | □ | ||||
| Engine 139 with CODE M005 (4MATIC) Rear axle - oil change |
AP35.00-P-3501E | ||||
| If more than 50, 000 miles or 5 years since last replacement | |||||
| Replace rear axle oil | □ | ||||
| Engine 260 with CODE M005 (4MATIC) Rear axle - oil change Except AMG model (118.351) |
AP35.00-P-3501MFA | ||||
| Rear axle - oil change Model 118.351 (AMG) | AP35.00-P-3501I | ||||
| If more than 40, 000 miles or 4 years since last replacement | |||||
| Replace spark plugs | □ | ||||
| Engine 139 Replace spark plugs | AP15.10-P-1580J | ||||
| If more than 50, 000 miles or 5 years since last replacement | |||||
| Replace spark plugs | □ | ||||
| Engine 260 Replace spark plugs | AP15.10-P-1580F | ||||
| If more than 120, 000 miles or 12 years since last replacement | |||||
| Replace fuel filter | □ | ||||
| Replace fuel filter | AP47.20-P-0780G | ||||
| Replace low temperature circuit coolant | □ | ||||
| Engine 139 Replace low-temperature circuit coolant |
AP20.00-P-2083M | ||||
| Replace main circuit coolant | □ | ||||
| Replace main circuit coolant |
AP20.00-P-2082R | ||||
TIRE INFLATION PRESSURE (BAR/PSI)
| LF | RF | LR | RR | Spare |
TIRE TREAD DEPTH (MM)
| LF | RF | LR | RR | |
| outside | ||||
| center | ||||
| inside |
