Check And Correct Headlamps Adjustment - AP82.10-P-8260Y
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118
Halogen headlamp, ECE version, shown on model 118
Static LED headlamp, shown on model 118
Dynamic LED headlamp, shown on model 118

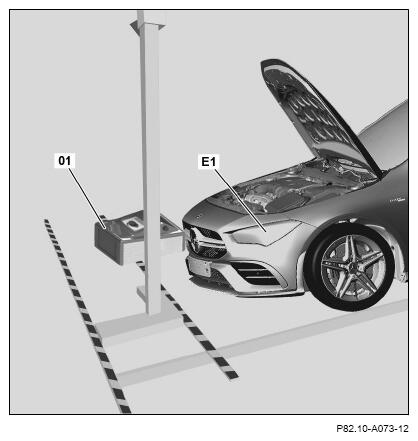

Shown on model 118.351
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| General information on checking/correcting headlamp adjustment | AH82.10-P-1000-01A | ||
| Check | |||
| 1 | Check low beam setting, adjust if necessary. | Halogen headlamp ECE version | AP82.10-P-8263YA |
| Halogen headlamp SAE version | AP82.10-P-8263YD | ||
| Static LED headlamps, ECE version | AP82.10-P-8263YB | ||
| Static LED headlamps, SAE version | AP82.10-P-8263YC | ||
| Dynamic LED headlamps, ECE version | AP82.10-P-8263YE | ||
| Dynamic LED headlamps, SAE version Before the low beams are checked and set, all the operation steps listed in the linked description must be performed carefully. Otherwise, the headlamps concerned may not be correctly set, which can then jeopardize the road safety of the vehicle. |
AP82.10-P-8263YF | ||
| 2 | Switch on main beam. | Model 118 with code 608 (Adaptive Highbeam Assist) Model 118 with code 628 (Adaptive Highbeam Assist Plus) For vehicles with active high beams assistant, have an assistant operate headlamp flashing. Otherwise the check cannot be carried out correctly. |
|
| 3 | Check setting of high beam. | If the high beam setting is not OK, ↓ rectify problems. |
AP82.10-P-8260-02Y |
| 4 | Reset switch positions to input condition. |
