Read Out Maintenance Data From Instrument Cluster And Reset Service Indicator - AP00.20-P-0043F

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118, 177, 243, 247

except code 521 (Connect 20 Mid (NTG7))

except code 525 (Connect 20 High (NTG7))

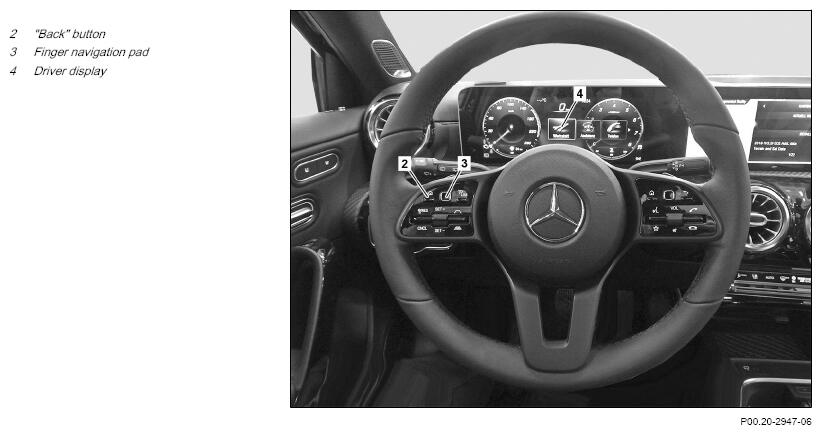

Shown on model 177.087

Courtesy of MERCEDES-BENZ USA

	Dialing
1	Call up workshop level in the instrument cluster.	The workshop level with the menu items is shown on the driver's display (4): "Vehicle data", "ASSYST PLUS", And other equipment-dependent menu items.	AP00.20-P-0046C
2	Switch electronic ignition lock control unit to position "2" (circuit 15).	No fault messages are allowed to appear on the driver's display (4).
3	Use swipe movements on the finger navigation pad (3) to select and confirm the "ASSYST PLUS" menu item on the driver's display (4).	The following menu items appear on the driver display (4): "Service data", "Full service".
	Read out service data
4	Use swipe movements on the finger navigation pad (3) to select and confirm the "Service data" tab.	Note down the workshop code shown on the driver's display (4) in the reception report.
5	Use swipe movements on finger navigation pad (3) to scroll forward to remaining time and remaining distance.	Note down the remaining time and remaining distance shown on the driver's display (4) in the reception report.
	Reset service data
6	Press "Back" button (2) and change back to "Service data" and "Full service" menu item overview.	The following menu items appear on the driver display (4): "Service data", "Full service".
7	Use swipe movements on the finger navigation pad (3) to select and confirm the "Full Service" menu item on the driver's display (4).	The current service items appear on the driver's display (4).
8	Use swipe movements on the finger navigation pad (3) to select and confirm the "Confirm Service" menu item on the driver's display (4).	Model 118, 177, 247 The oil selection appears on the driver's display (4).
9	Select and confirm specification for engine oil used using swipe movements on the finger navigation pad (3).	Model 118, 177, 247
10	Use swipe movements on the finger navigation pad (3) to select and confirm the "Yes" menu item on the driver's display (4)	"Reversal not possible" is shown on the driver's display (4).
11	Use swipe movements on the finger navigation pad (3) to select and confirm the "Confirmation" menu item in the driver's display (4).	"Full Service completed" appears in the driver's display (4). If the service is not performed or only partly performed after resetting the maintenance computer, ↓ reset the maintenance computer to the default value again.	AP00.20-P-0044A
	Deactivation
12	Press "Back" button (2) and change back to workshop level menu item.	The workshop level with the menu items is shown on the driver's display (4): "Vehicle data", "ASSYST PLUS", And other equipment-dependent menu items.
13	Close workshop level in the instrument cluster.		AP00.20-P-0046C
