Check Tank Filler Recess Seal - AP47.10-P-4752A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118

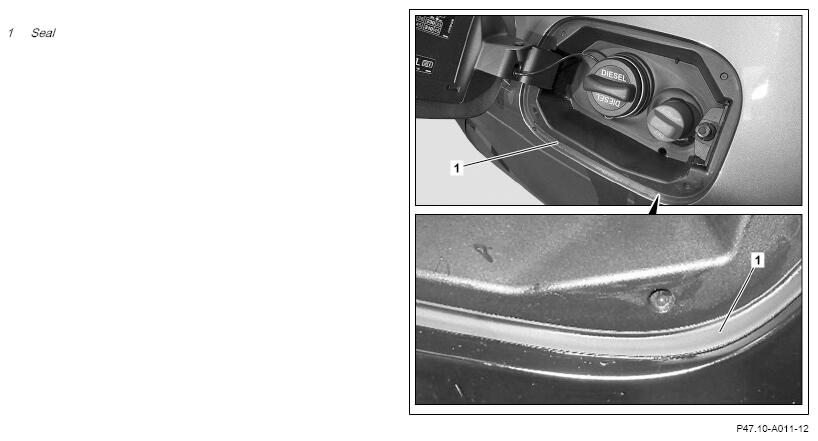

Shown on model 118.3 with engine 608
| Check | |||
| 1 | Open fuel filler flap. | ||
| 2 | Check seal (1) for contamination and clean if necessary | Flashlight |
|
| 3 | Check seal (1) for damage, deformation and correct seat. | Flashlight The seal (1) must make close contact with the body in the entire area. If problems are determined, ↓ proceed in accordance with the country-specific regulations for mobility and body shell complaints. |
|
| 4 | Close fuel filler flap. |
