Replace Spark Plugs - AP15.10-P-1580F

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Engine 260 in model 118, 177, 247

G16048582Courtesy of MERCEDES-BENZ USA

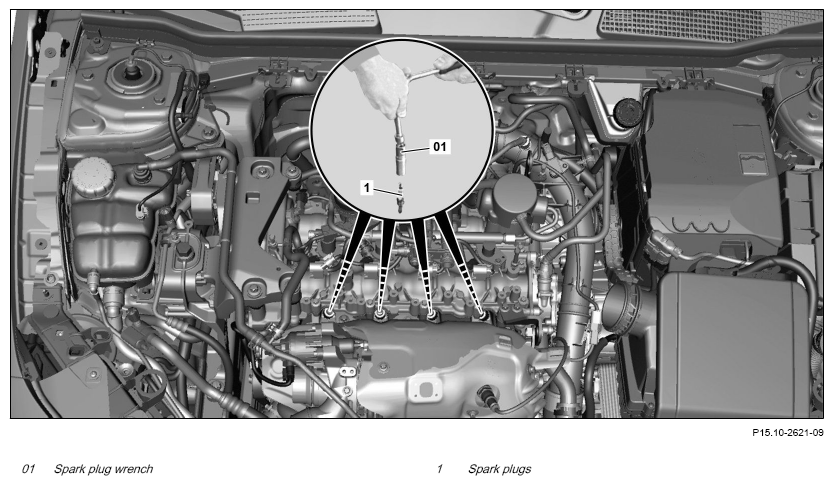

Shown on engine 260.9 in model 177.045

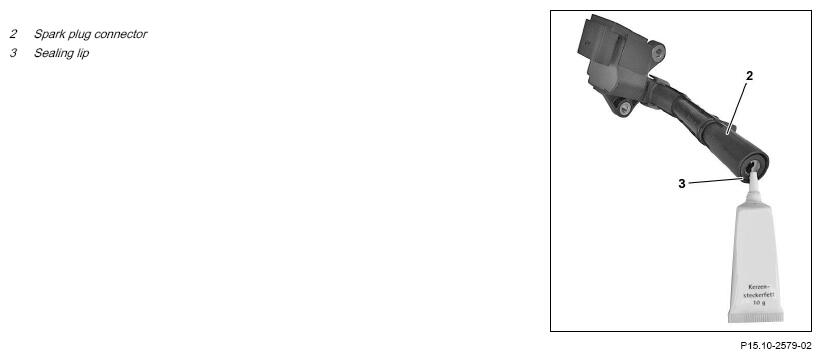

Shown on ignition coil in engine 157.980

G16048583Courtesy of MERCEDES-BENZ USA
DANGER Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. AS00.00-Z-0035-01A
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
Notice  Information on avoiding damage when replacing spark plugs   AH15.10-P-0002-02A
REMOVING Remove
1 Remove ignition coils
REFER TO TESTING & REPAIR     AR15.12-P-2003MFC
CLEAN Clean
2 Blow out any dirt residue in the spark-plug recesses using compressed air SPECIAL TOOL Set of protective covers Fig 1
    SPECIAL TOOL Record plug Fig 3
REMOVING Remove
3 Using spark plug wrench (01) unscrew spark plugs (1) from cylinder head SPECIAL TOOL Spark plug wrench Fig 2
INSTALLING Install
4 Using spark plug wrench (01) screw new spark plugs (1) into cylinder head TORQUE SPECIFICATION Spark plug to cylinder head *BA15.10-P-1001-01C
    SPECIAL TOOL Spark plug wrench Fig 2
INSPECT Check
5 Check the spark plug connectors (2), ignition coils and ignition lines for damage, deformation and crack formation If a problem arises
↓
Rectify problem subject to separate repair order.
INSTALLING Install
6 Apply coating of spark plug connector grease to sealing lips (3) of spark plug connectors (2) before installation Spark plug connector grease 35 g *BR00.45-Z-1102-06A
7 Install ignition coils
REFER TO TESTING & REPAIR     AR15.12-P-2003MFC
SPARK PLUGS

Number Designation Engine 260
BA15.10-P-1001-01C Spark plug to cylinder head Nm 23
Fig 1: Identifying Set Of Protective Covers (001 589 06 91 00)
G14785718Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Spark Plug Wrench (278 589 00 09 00)
G13656638Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Record Plug (129 589 00 91 00)
G11971934Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1102-06A Spark plug connector grease 35 g A 002 989 08 08
