Check All Visible Parts In Engine Compartment For Damage And Fluid Loss - AP00.20-P-0055I
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 247
Shown on engine 260.9 in model 177.0
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Risk of injury due to fan starting unexpectedly | Do not reach into the rotation or hazard area of the fan. Wear closed and close-fitting work clothes. | AS20.40-Z-0001-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | AH00.00-Z-0300-01A | |
| Notice | Notes on battery | AH54.10-P-0001-01A | |
| Notes on evaluating leakages | AH00.00-P-0011-01KOA | ||
| Remove | |||

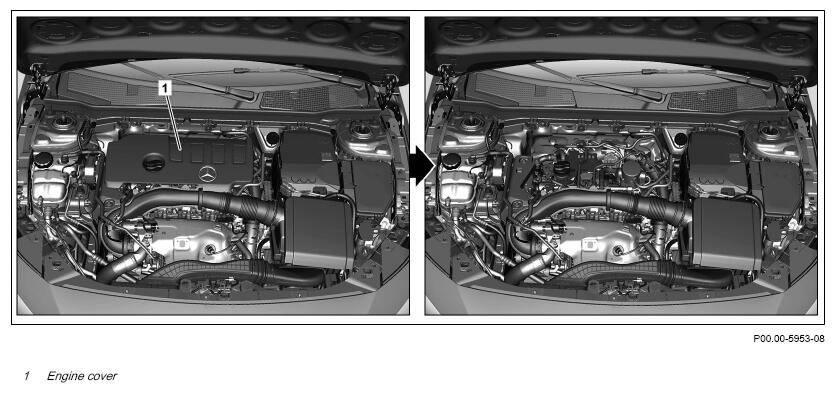

| 1 | Remove engine cover (1). | Model 118, 177 with engine 139 | AP01.10-P-2405-01K |
| Model 118, 177 with engine 260 | AP01.10-P-2405-01C | ||
| Model 118, 177, 247 with engine 282 | AP01.10-P-2405-01D | ||
| Model 118, 177, 247 with engine 608 | AP01.10-P-2405-01B | ||
| Model 247 with engine 654 | AP01.10-P-2405-01H | ||
| Check | |||
| 2 | Check visible systems and component parts in the engine compartment for condition, fluid loss and mounting. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 ↓ rectify the problems. |
|
| 3 | Check visible systems and component parts in the engine compartment for condition, fluid loss and mounting. | Equipment-dependent. Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems are determined, ↓ rectify the problems. |
|
| 4 | Check visible lines and hoses in engine compartment for good condition, fluid loss, correct routing and secure attachment. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems are determined, ↓ rectify the problems. |
|
| 5 | Check visible lines and hoses in engine compartment for good condition, fluid loss, correct routing and secure attachment. | Equipment-dependent. Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems are determined, ↓ rectify the problems. |
|
| 6 | Check visible systems, component parts and body panels, lines and hoses in the engine compartment on vehicle underside for damage, routing, fluid loss, mounting and corrosion. | AP00.20-P-0054N | |
| Install | |||
| 7 | Install engine cover (1). | Model 118, 177 with engine 139 | AP01.10-P-2405-01K |
| Model 118, 177 with engine 260 | AP01.10-P-2405-01C | ||
| Model 118, 177, 247 with engine 282 | AP01.10-P-2405-01D | ||
| Model 118, 177, 247 with engine 608 | AP01.10-P-2405-01B | ||
| Model 247 with engine 654 | AP01.10-P-2405-01H |
