Check Condition And Operation Of Trailer Hitch - AP31.11-P-3152B

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118, 177, 243, 247 with code 550 (Trailer coupling)

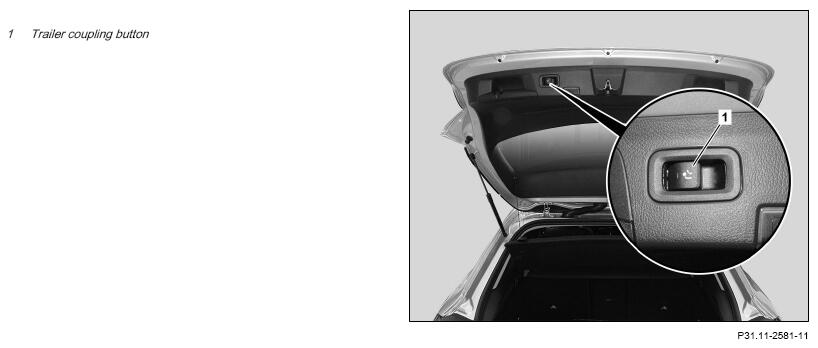

Shown on model 177.0 with code 550 (Trailer hitch)

G16049845Courtesy of MERCEDES-BENZ USA

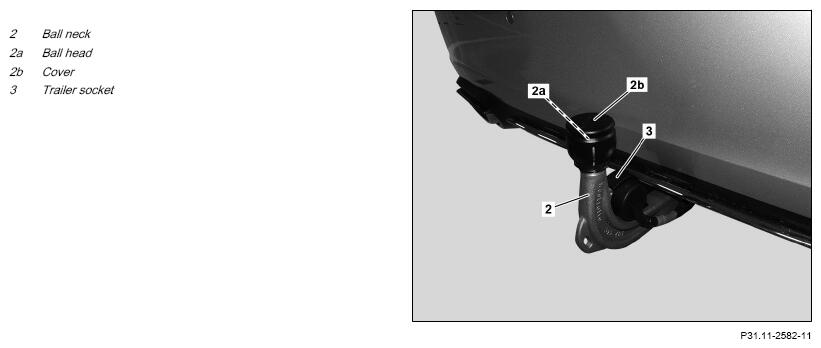

Shown on model 177.0 with code 550 (Trailer hitch)

G16049846Courtesy of MERCEDES-BENZ USA
G16049847Courtesy of MERCEDES-BENZ USA

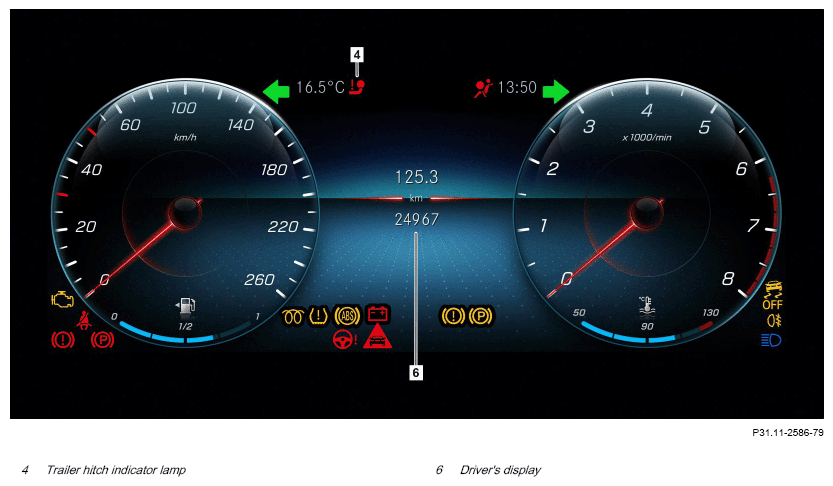

Shown on instrument cluster in model 177.0, CLASSIC view

WARNING Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the operating area of mechanical components when moving components. AS00.00-Z-0009-01A
INSPECT Check
1 Operate trailer coupling button (1). IMPORTANT Ball neck (2) is released and swivels downward.
The "Trailer coupling swiveling" message appears on the driver's display (6).
In the instrument cluster, the trailer coupling indicator lamp (4) illuminates and the indicator lamp on the trailer coupling button (1) flashes.
If problems are determined,

rectify the problems.
IMPORTANT After obtaining special order.

2 Remove ball neck (2) under bumper until it engages audibly in vertical position. IMPORTANT As soon as the ball neck (2) is locked, the message on the driver's display (6) as well as the trailer coupling indicator lamp (4) and the indicator lamp on the trailer coupling button (1) should go out.
If problems are determined,

rectify the problems.
IMPORTANT After obtaining special order.

REMOVING Remove
3 Remove cover (2b) from ball head (2a).
INSPECT Check
4 Check trailer socket (3), swivel mechanism and ball neck (2) for damage and corrosion. If problems are determined,

rectify the problems.
IMPORTANT After obtaining special order.

CLEAN Clean
5 Clean ball head (2a) using water and brush, and dry off using lint-free rag. NOTES Do not use any high pressure or steam cleaning equipment nor any solvent or cleaning agent.
Otherwise, the ball head (2a) may be damaged.
If corrosion is found on the ball head (2a),

Remove any corrosion using wire brush.

MEASURING Measure
6 Measure diameter of ball head (2a). Minimum diameter of ball head If the minimum diameter of ball head (2a) is less than the specified value,

rectify problem.
IMPORTANT After obtaining special order.
*BE31.11-P-1001-01A
  Grease
7 Apply light coating of grease to ball head (2a). NOTES Inform the customer that when using trailers with an anti-swerve device whose effect is based on friction with the ball head (2a), the ball head (2a) must be degreased before the trailer is coupled.
Otherwise the friction between the friction linings and the ball head (2a) is reduced, and the swerving and pitch motions are no longer suppressed.
IMPORTANT Inform the customer that after using trailers with an anti-swerve device whose effect is based on friction with the ball head (2a), the ball head (2a) must be greased again.
MB multipurpose grease, 5 kg
*BR00.45-Z-1034-06A
INSTALLING Install
8 Fit cover (2b) onto ball head (2a).
INSPECT Check
9 Operate trailer coupling button (1). IMPORTANT Ball neck (2) is released and swivels downward.
The "Trailer coupling swiveling" message appears on the driver's display (6).
In the instrument cluster, the trailer coupling indicator lamp (4) illuminates and the indicator lamp on the trailer coupling button (1) flashes.
If problems are determined,

rectify the problems.
IMPORTANT After obtaining special order.

10 Press ball neck (2) behind bumper until it engages audibly. IMPORTANT As soon as the ball neck (2) is locked, the message on the driver's display (6) as well as the trailer coupling indicator lamp (4) and the indicator lamp on the trailer coupling button (1) should go out.
If problems are determined,

rectify the problems.
IMPORTANT After obtaining special order.

CHECK VALUES FOR TRAILER HITCH

Number Designation Model all (4xWD, CAR, Light transporter, smart)
BE31.11-P-1001-01A Minimum diameter of ball head mm 49
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1034-06A MB multipurpose grease, 5 kg A 001 989 34 51 10
