Replace Main Circuit Coolant - AP20.00-P-2082R
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 139, 260, 282, 608, 654 in model 118
Shown on engine 282.9 in model 118.3
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Check | |||

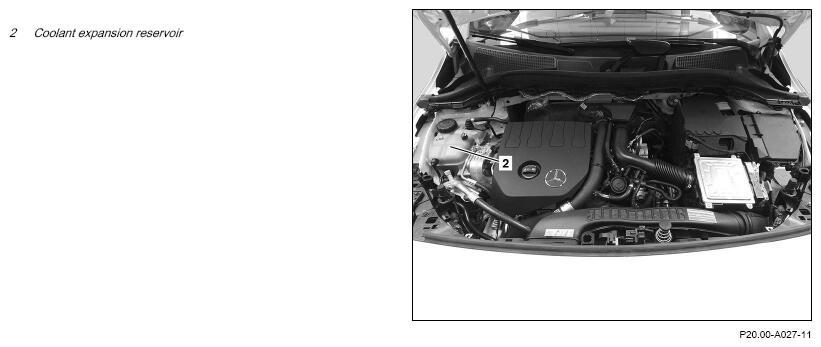

| 1 | Check coolant level in coolant expansion reservoir (2). | Engine 139 in model 118 | AP20.30-P-2050T |
| Engine 260, 282, 608, 654 in model 118 | AP20.30-P-2050R | ||
| Draining | |||
| 2 | Drain off coolant. | ||
| Engine 139 in model 118 | AR20.00-P-1142MFG | ||
| Engine 260, 282 in model 118 | AR20.00-P-1142MFC | ||
| Engine 608 in model 118 | AR20.00-P-1142MFE | ||
| Engine 654 in model 118 | AR20.00-P-1142MFF | ||
| Pour in | |||
| 3 | Pour in new coolant. | ||
| Engine 139 in model 118 | AR20.00-P-1142MFG | ||
| Engine 260, 282 in model 118 | AR20.00-P-1142MFC | ||
| Engine 608 in model 118 | AR20.00-P-1142MFE | ||
| Engine 654 in model 118 | AR20.00-P-1142MFF | ||
| Coolant specifications | BB00.40-P-0310-01A |
