Check Visible Area Of Poly-V Belt For Wear - AP13.22-P-1352C
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 139 in model 118, 177, 247
Shown on engine 139 in model 177.054
Shown on engine 139 in model 177.054
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury from engine start by remote start function | Prior to starting work, open engine hood, do not reach into rotation range or hazard area of freely rotating parts, wear closed and snug-fitting work clothes | AS00.00-Z-0024-01A | |
| Check | |||

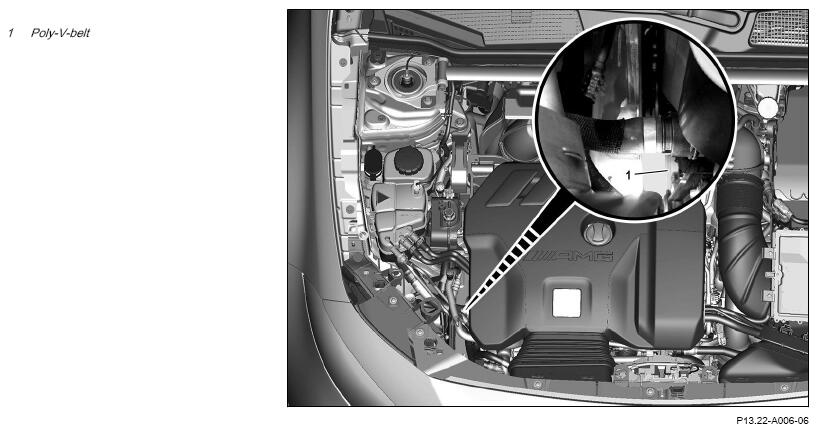

| 1 | Check poly-V-belt (1) from above in visible areas for wear and damage, and compare with damage profiles. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If wear or damage is detected, ↓ Replace poly-V-belt (1). |
AP13.22-P-1351-01A |
| Remove | |||
| 2 |
Remove engine compartment lining (3). | AR61.20-P-1105MFR | |
| Check | |||

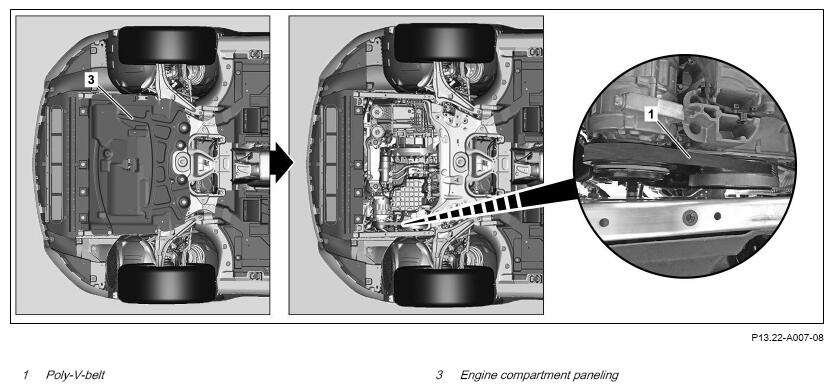

| 3 | Check poly-V-belt (1) in areas visible when vehicle is raised for wear and damage, and compare with damage profiles. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If wear or damage is detected, ↓ Replace poly-V-belt (1). |
AP13.22-P-1351-01A |
| Install | |||
| 4 | Install engine compartment lining (3). | ||
| AR61.20-P-1105MFR |
