Rear Axle - Oil Change - AP35.00-P-3501MFA

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118 (except 118.351/353/354/651/653/654)

with code M005 (Vehicles with 4MATIC/all-wheel drive)

Model 177 (except 177.051/053/054/151/951)

with code M005 (Vehicles with 4MATIC/all-wheel drive)

Model 247 (except 247.651/751/753/754)

with code M005 (Vehicles with 4MATIC/all-wheel drive)

MODIFICATION NOTES

13.02.2020

Rear axle differential filling capacity

Model 118 (except 118.353/354/653/654) model 177 (except 177.053/054) model 247 (except 247.753/754)

BF35.31-P-1001-02F

Courtesy of MERCEDES-BENZ USA

Shown on model 177.047

Courtesy of MERCEDES-BENZ USA

Shown on model 177.045

Courtesy of MERCEDES-BENZ USA

Shown on model 177.045

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Preparatory activity
1	Lift vehicle with vehicle lift.
		Park vehicle on a horizontal surface. Otherwise, the rear axle differential (5) will not be filled correctly and an incorrect oil filling capacity can lead to fluid loss and damage.	AR00.60-P-1006A
	Remove

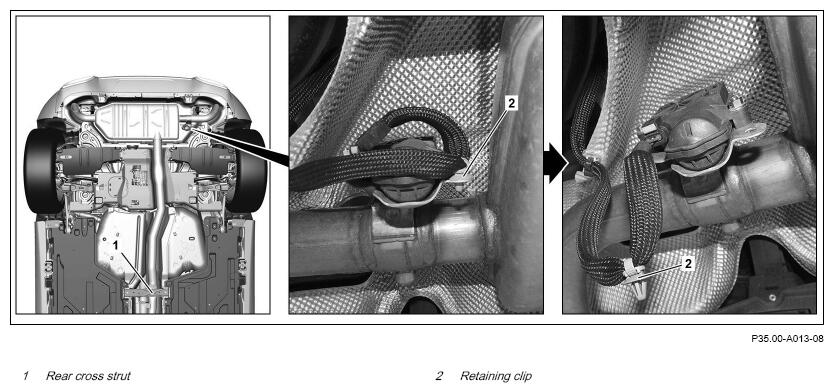

2	Remove rear cross strut (1).	The rear cross strut (1) remains on the elastomer bearing of the exhaust system.
3	Unclip retaining clip (2).	Vehicle with exhaust gas flap controller.
4	Support rear muffler (3).
	000 588 23 62 00 Mounting plate		WS26.00-P-0415B
	000 588 24 62 00 Major assembly mount		WS01.00-P-0253B

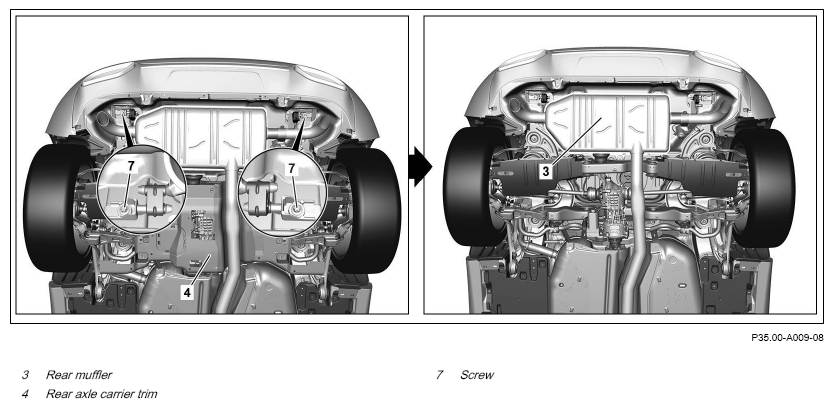

5	Remove screws (7).
6	Lower rear muffler (3) slightly.
	000 588 23 62 00 Mounting plate		WS26.00-P-0415B
	000 588 24 62 00 Major assembly mount		WS01.00-P-0253B
7	Remove trim of rear axle carrier (4).	Model 118 (except 118.351/353/354/651/653/654) Model 177 (except 177.051/053/054/151/951) Model 247 (except 247.651/751/753/754)
		Model 118 (except 118.351/651) Model 177 (except 177.051/151/951) Model 247 (except 247.651/751)	AR61.30-P-0050MFA
	Clean

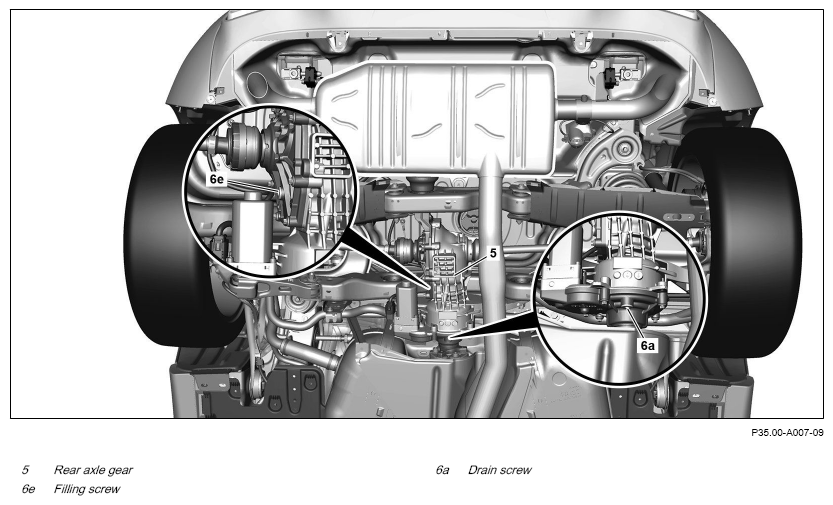

8	Clean area surrounding drain screw (6a) and filling screw (6e).
	Remove
9	Remove filling screw (6e).	Dispose of old filling screw (6e). Otherwise, this may lead to fluid loss and consequential damage.
	Drain off
10	Remove drain screw (6a) and drain transmission oil from rear axle differential (5).	Dispose of old drain screw (6a). Otherwise, this may lead to fluid loss and consequential damage.
	Clean
11	Clean threaded hole of drain screw (6a) in rear axle differential (5).	Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
	Install
12	Screw new drain screw (6a) into rear axle differential (5).	Replace drain screw (6a) each time it is removed. Otherwise, this may lead to fluid loss and consequential damage. Filling screw/drain screw to housing cover at front/side	*BA35.31-P-1005-07A
	Pour in
13	Pour new transmission oil into rear axle differential (5).	Rear axle differential filling capacity	*BF35.31-P-1001-02F
	Clean
14	Clean threaded hole of filling screw (6e) in rear axle differential (5).	Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
	Install
15	Screw new filling screw (6e) into rear axle differential (5).	Replace filling screw (6e) each time it is removed. Otherwise, this may lead to fluid loss and consequential damage. Filling screw/drain screw to housing cover at front/side	*BA35.31-P-1005-07A
16	Install trim of rear axle carrier (4).	Model 118 (except 118.351/353/354/651/653/654) Model 177 (except 177.051/053/054/151/951) Model 247 (except 247.651/751/753/754)
		Model 118 (except 118.351/651) Model 177 (except 177.051/151/951) Model 247 (except 247.651/751)	AR61.30-P-0050MFA
17	Lift rear muffler (3).
	000 588 23 62 00 Mounting plate		WS26.00-P-0415B
	000 588 24 62 00 Major assembly mount		WS01.00-P-0253B
18	Screw in screws (7).	Model 118 (except 118.351/353/354/651/653/654) Model 177 (except 177.051/053/054/151/951) Model 247 (except 247.651/751/753/754)
		Model 118 (except 118.351/651) with engine 260, 282; model 177 (except 177.051/151/951) with engine 260, 282; model 247 (except 247.651/751) with engine 260, 282 Bolt, rear exhaust system bracket to body	*BA49.10-P-1010-02Q
		Model 118, 177, 247 with engine 654 Screw, holder for rear exhaust system suspension to body	*BA49.10-P-1009-02V
19	Clip in retaining clip (2).	Vehicle with exhaust gas flap controller.
20	Install rear cross strut (1).	Screw, center cross strut (rear) to frame floor assembly	*BA61.10-P-1002-01N
	Finishing activity
21	Lower vehicle with vehicle lift.
			AR00.60-P-1006A

REAR AXLE GEAR

Number	Designation		Model 118	Model 177
BA35.31-P-1005-07A	Filling screw/drain screw to housing cover at front/side	Nm	35	35

REAR AXLE GEAR

Number	Designation		Model 247
BA35.31-P-1005-07A	Filling screw/drain screw to housing cover at front/side	Nm	35

EXHAUST SYSTEM

Number	Designation			Engine 654 in model 118	Engine 654 in model 177
BA49.10-P-1009-02V	Screw, holder for rear exhaust system suspension to body	M8	Nm	20	20

EXHAUST SYSTEM

Number	Designation			Engine 654 in model 247
BA49.10-P-1009-02V	Screw, holder for rear exhaust system suspension to body	M8	Nm	20

EXHAUST SYSTEM

Number	Designation			Model 118 with engine 260	Model 118 with engine 282.8
BA49.10-P-1010-02Q	Bolt, rear exhaust system bracket to body	M8	Nm	20	20

EXHAUST SYSTEM

Number	Designation			Model 118 with engine 282.9	Model 177 with engine 260
BA49.10-P-1010-02Q	Bolt, rear exhaust system bracket to body	M8	Nm	20	20

EXHAUST SYSTEM

Number	Designation			Model 177 with engine 282.8	Model 177 with engine 282.9
BA49.10-P-1010-02Q	Bolt, rear exhaust system bracket to body	M8	Nm	20	20

EXHAUST SYSTEM

Number	Designation			Model 247 with engine 260	Model 247 with engine 282.8
BA49.10-P-1010-02Q	Bolt, rear exhaust system bracket to body	M8	Nm	20	20

EXHAUST SYSTEM

Number	Designation			Model 247 with engine 282.9
BA49.10-P-1010-02Q	Bolt, rear exhaust system bracket to body	M8	Nm	20

FRAME FLOOR ASSEMBLY

Number	Designation			Model 118, 177, 247
BA61.10-P-1002-01N	Screw, center cross strut (rear) to frame floor assembly	M10	Nm	30

REAR AXLE GEAR

Number	Designation			Model 118 (except 118.353/354/653/65 4) Model 177 (except 177.053/054) Model 247 (except 247.753/754)
BF35.31-P-1001-02F	Rear axle differential filling capacity	Rear axle differential 150	Liter	0, 6
		Specified gear oils - overview		BB00.40-P-0231-01A
		Approved axle gear oils		BB00.40-P-0235A

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1046-04A	Loctite 7063 (400 ml) cleaning spray	A 001 986 71 71 09
