Check Main Circuit Coolant Level - AP20.30-P-2050R
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 260, 282, 608, 654 in model 118

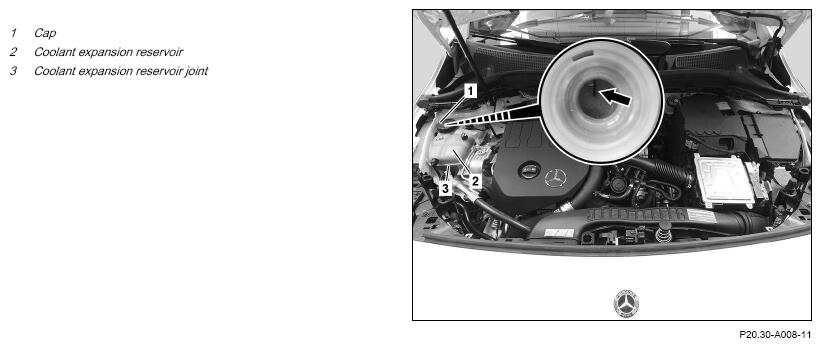

Shown on engine 282 in model 118.3
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Check | |||
| 1 | Check coolant level in area of coolant expansion reservoir joint (3) of coolant expansion reservoir (2). | If the coolant level is above the coolant expansion reservoir joint (3), ↓ coolant level correct, check complete, no further operations steps necessary. If the coolant level is below the coolant expansion reservoir joint (3), ↓ check coolant level in coolant expansion reservoir (2), continue with operation step 2. |
|
| Remove | |||
| 2 | Unscrew the cap (1) of the coolant expansion reservoir (2). | ||
| Check | |||
| 3 | Check coolant level. | If the coolant level is too low, ↓ Check cooling system for leak tightness and coolant for antifreeze content. |
|
| Coolant specifications |
BB00.40-P-0310-01A | ||
| Install | |||
| 4 | Seal coolant expansion reservoir (2) with cap (1). |
