Replace Low-Temperature Circuit Coolant - AP20.00-P-2083M
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 139 in model 118, 177, 247
Shown on engine 139 in model 177.053
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Check | |||

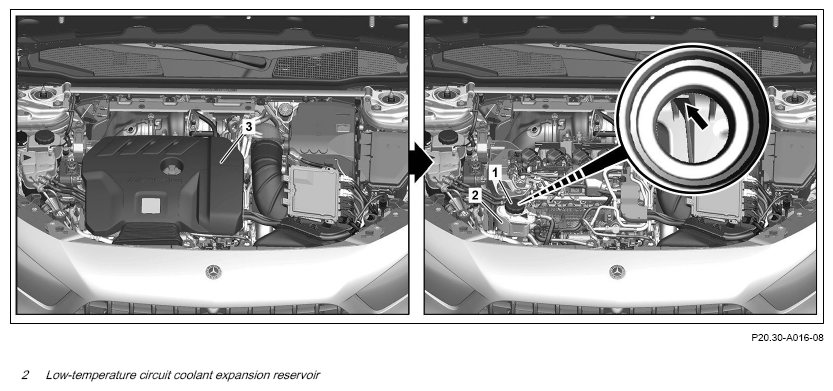

| 1 | Check coolant level in low-temperature circuit coolant expansion reservoir (2). | AP20.30-P-2052P | |
| Draining | |||
| 2 | Drain coolant in low-temperature circuit. | ||
| AR09.41-P-6834MFG | |||
| Pour in | |||
| 3 | Pour new coolant into low-temperature circuit. | ||
| AR09.41-P-6834MFG | |||
| Coolant specifications | BB00.40-P-0310-01A |
