Overview Of System Components, Telematics - GF82.85-P-9999RR

Model 190

G16682887Courtesy of MERCEDES-BENZ USA

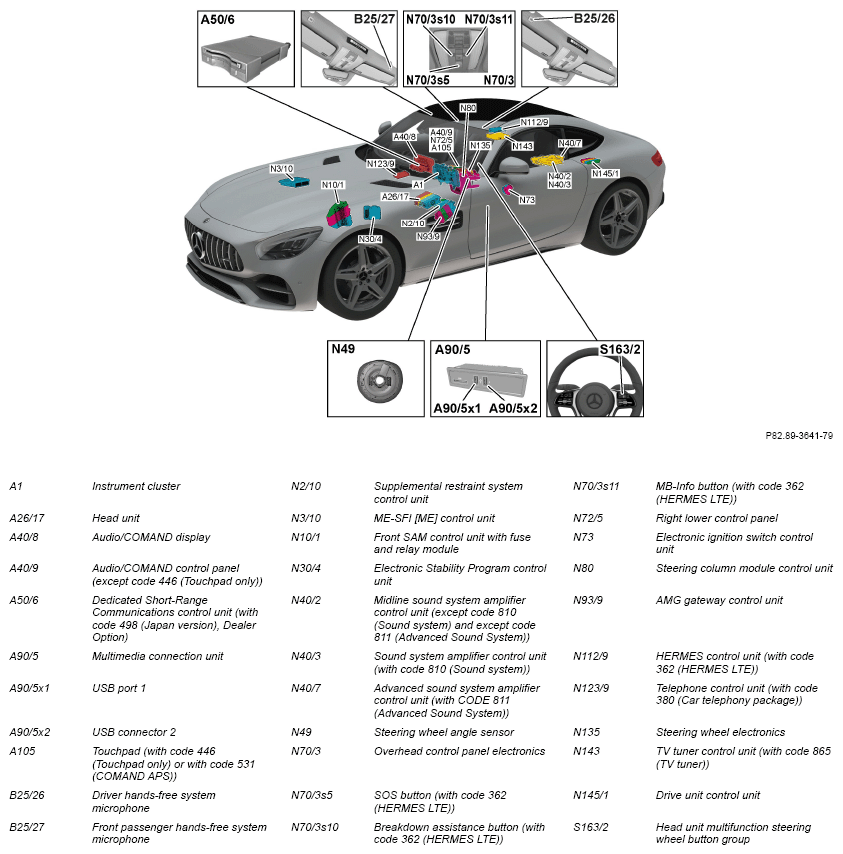

System components except telematics antenna system and except speaker system, shown on model 190.3 as of 01.12.2018

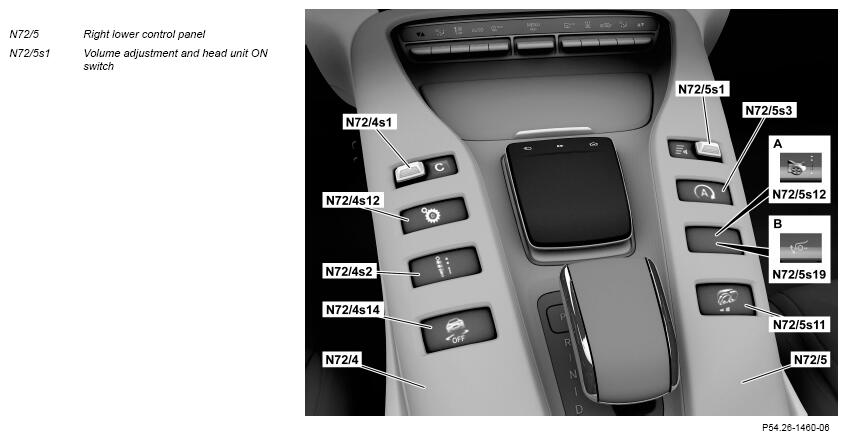

Detailed view of right lower control panel

G16682888Courtesy of MERCEDES-BENZ USA

Detailed view of multifunction steering wheel as of 01.12.2018: Overview

G16682889Courtesy of MERCEDES-BENZ USA

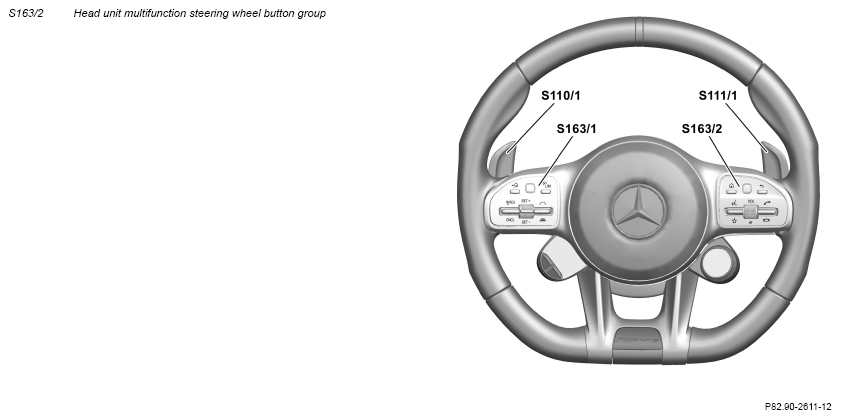

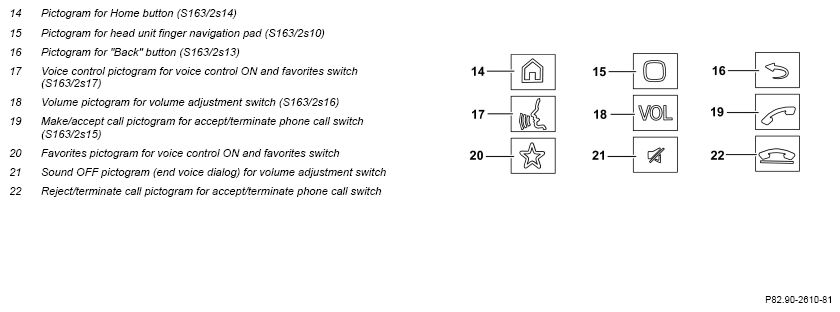

Detailed view of multifunction steering wheel as of 01.12.2018: Control elements of head unit multifunction steering wheel button group (S163/2)

G16682890Courtesy of MERCEDES-BENZ USA

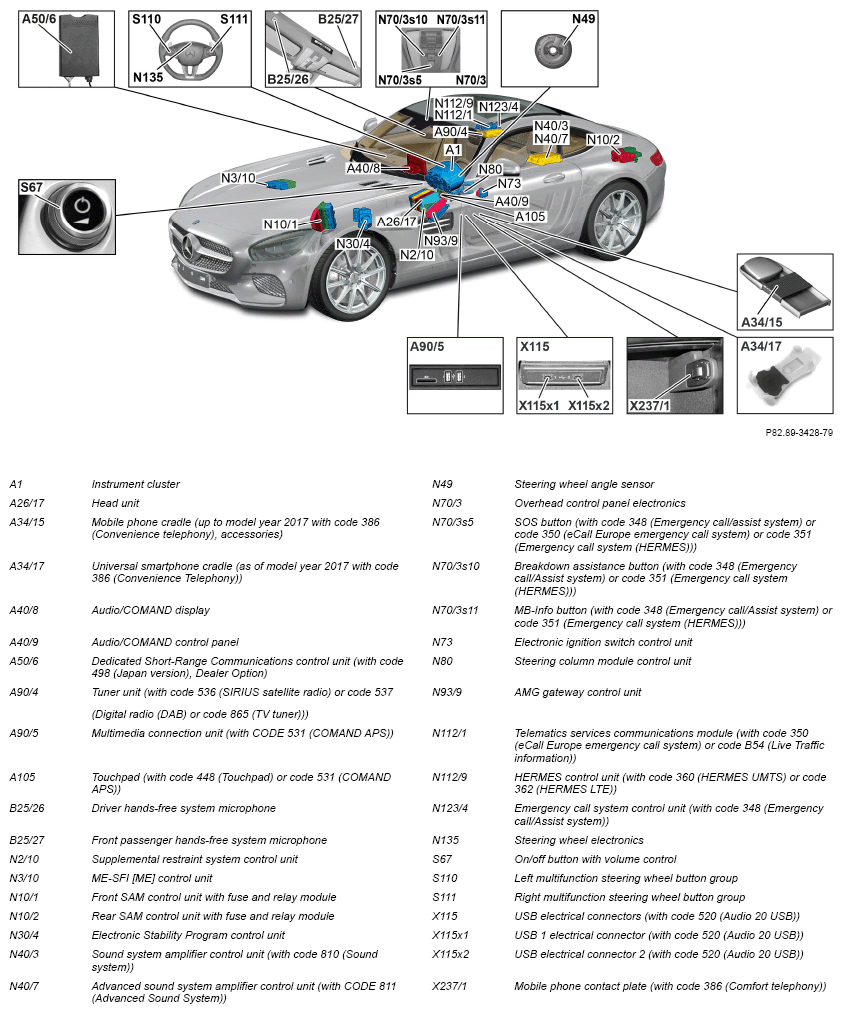

System components except telematics antenna system and except speaker system, shown on model 190.3 up to 30.11.2018

G16682891Courtesy of MERCEDES-BENZ USA

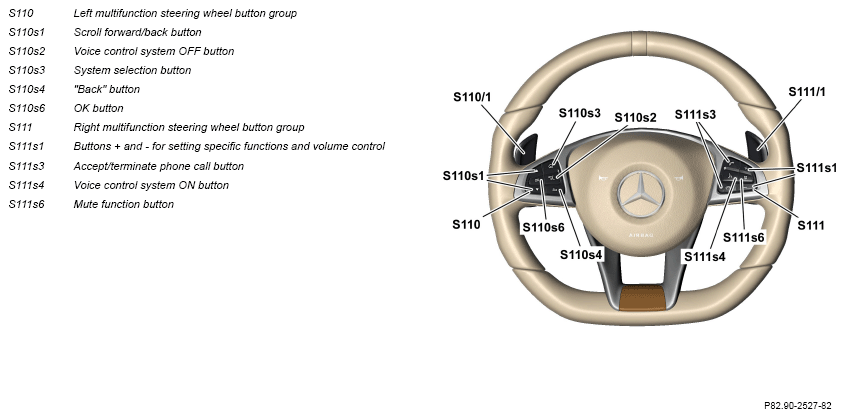

Detailed view of multifunction steering wheel up to 30.11.2018

G16682892Courtesy of MERCEDES-BENZ USA
G16682893Courtesy of MERCEDES-BENZ USA

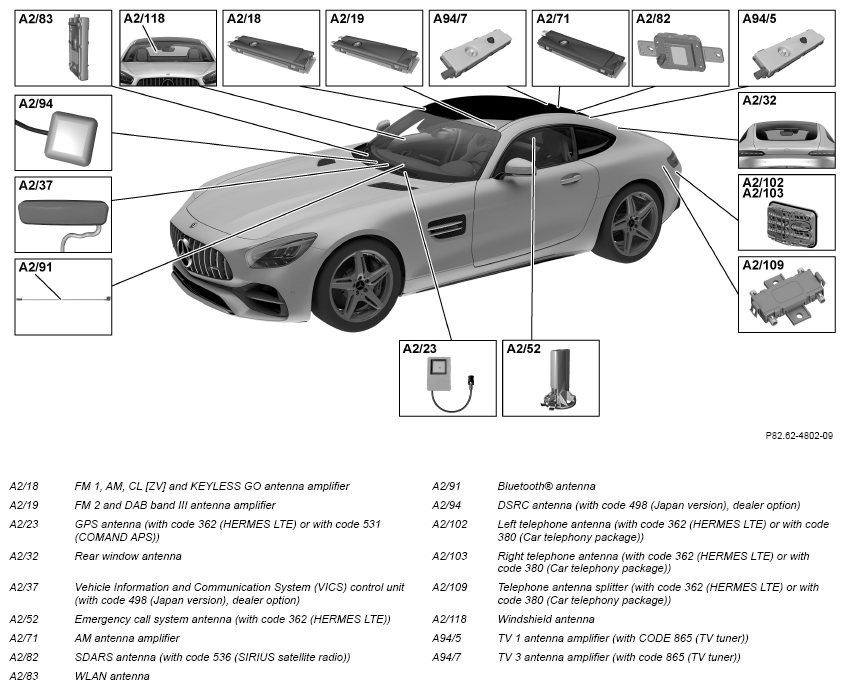

Telematics antenna system, shown on model 190.3 as of 01.12.2018

G16682894Courtesy of MERCEDES-BENZ USA

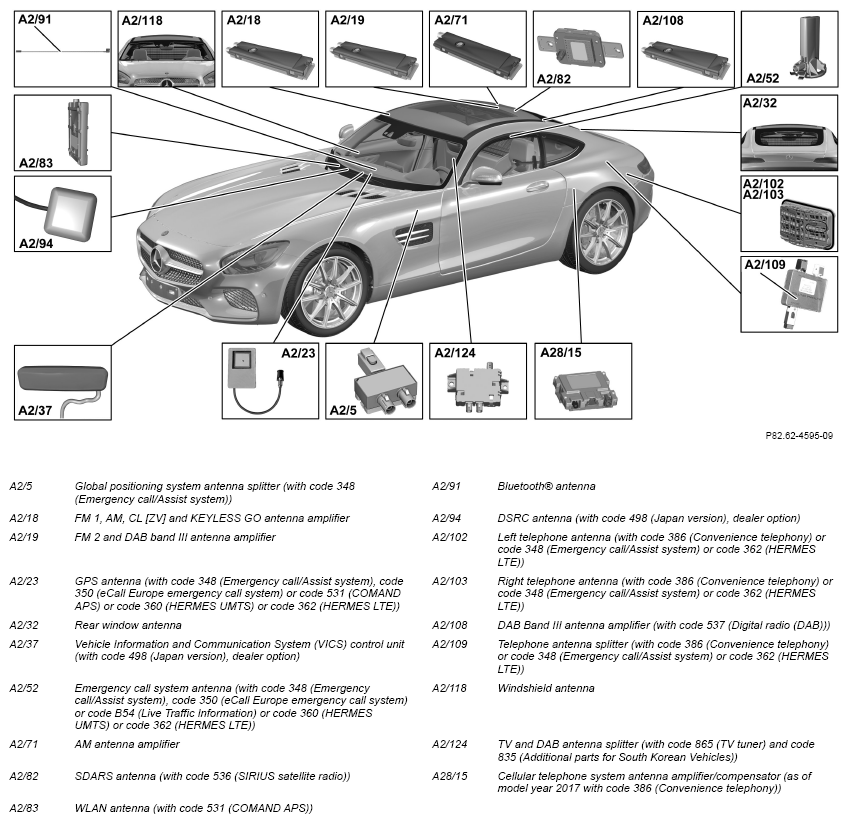

Telematics antenna system, shown on model 190.3 up to 30.11.2018

G16682895Courtesy of MERCEDES-BENZ USA

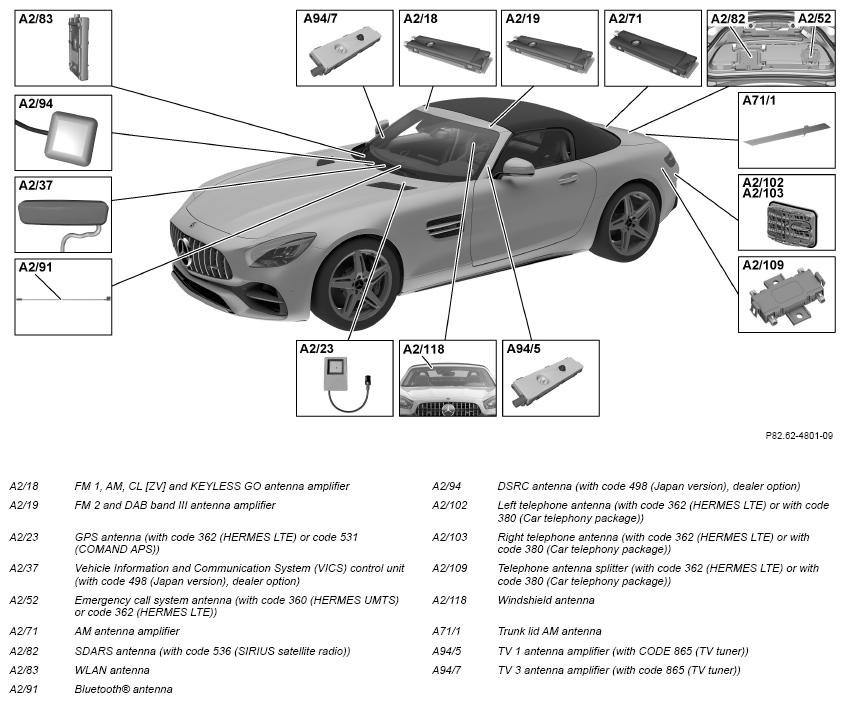

Telematics antenna system, shown on model 190.4 as of 01.12.2018

G16682896Courtesy of MERCEDES-BENZ USA

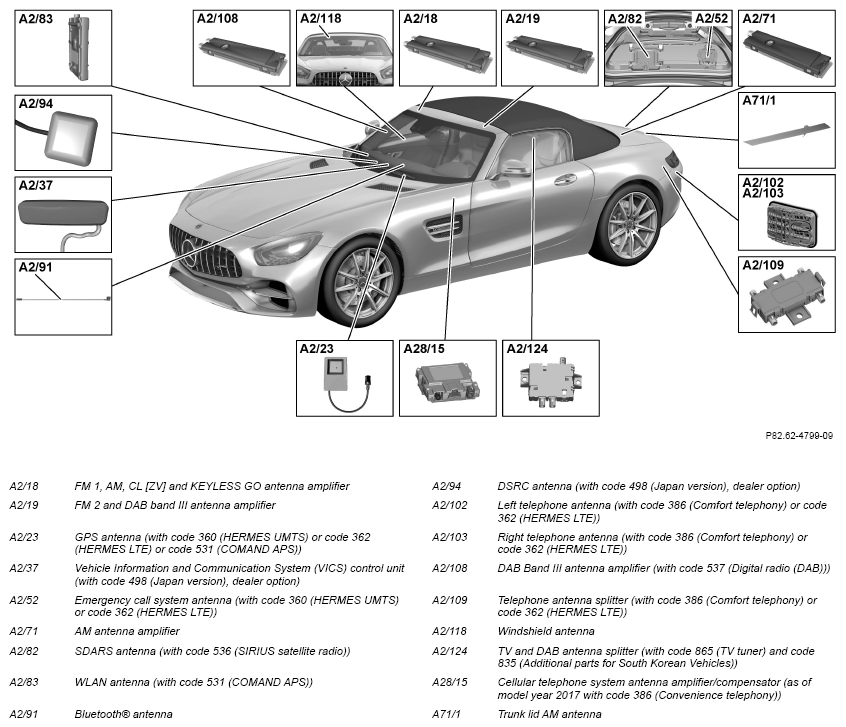

Telematics antenna system, shown on model 190.4 as of 30.11.2018

G16682897Courtesy of MERCEDES-BENZ USA

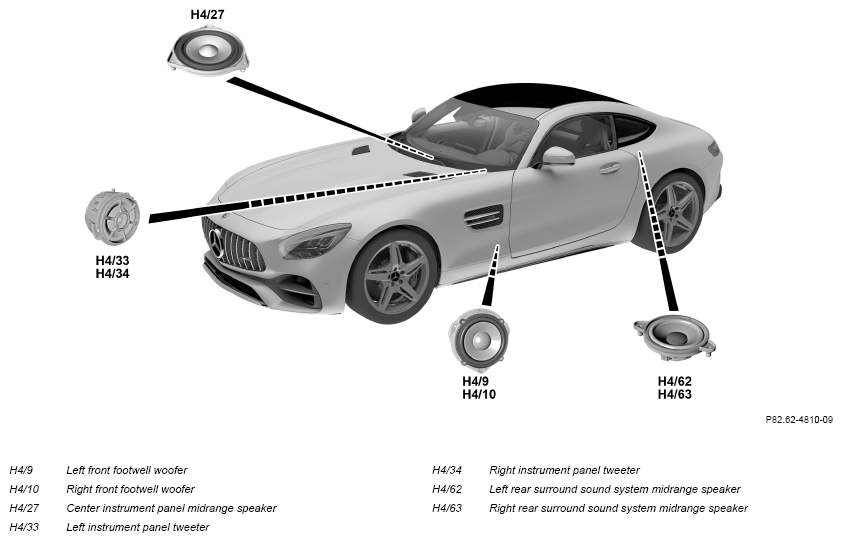

Speaker system, Except Code 810 (Sound system) and Except Code 811 (Advanced sound system), shown on model 190.3 as of 01.12.2018

G16682898Courtesy of MERCEDES-BENZ USA

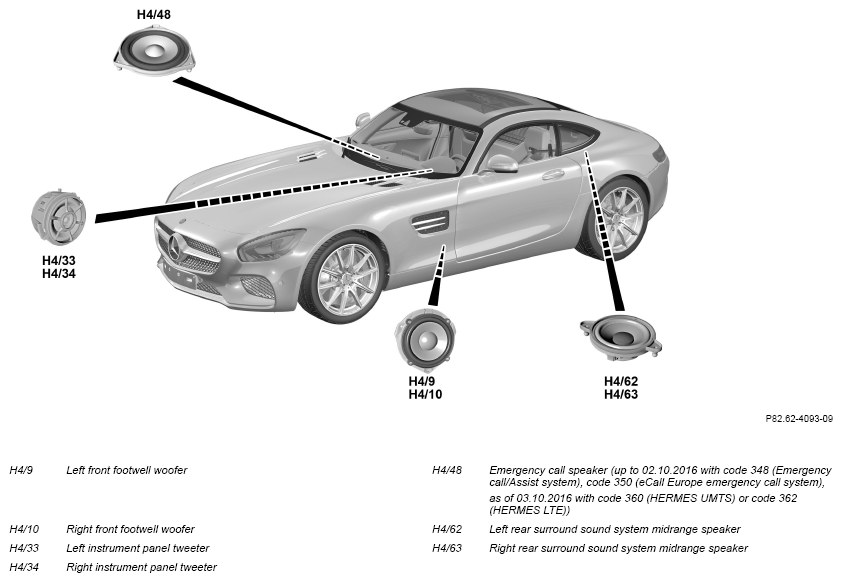

Speaker system, Except Code 810 (Sound system) and Except Code 811 (Advanced sound system), shown on model 190.3 up to 30.11.2018

G16682899Courtesy of MERCEDES-BENZ USA

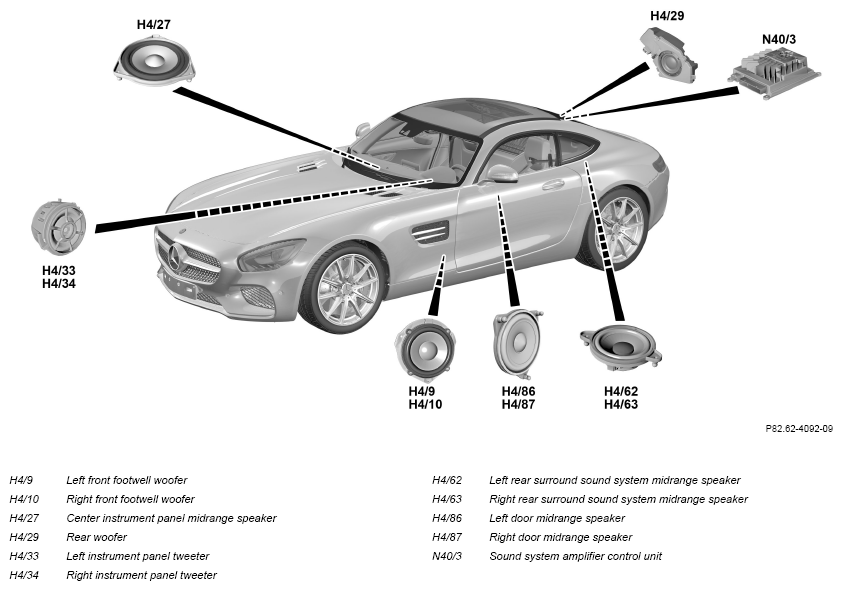

Speaker system, With Code 810 (Sound system), shown on model 190.3 up to 30.11.2018

G16682900Courtesy of MERCEDES-BENZ USA

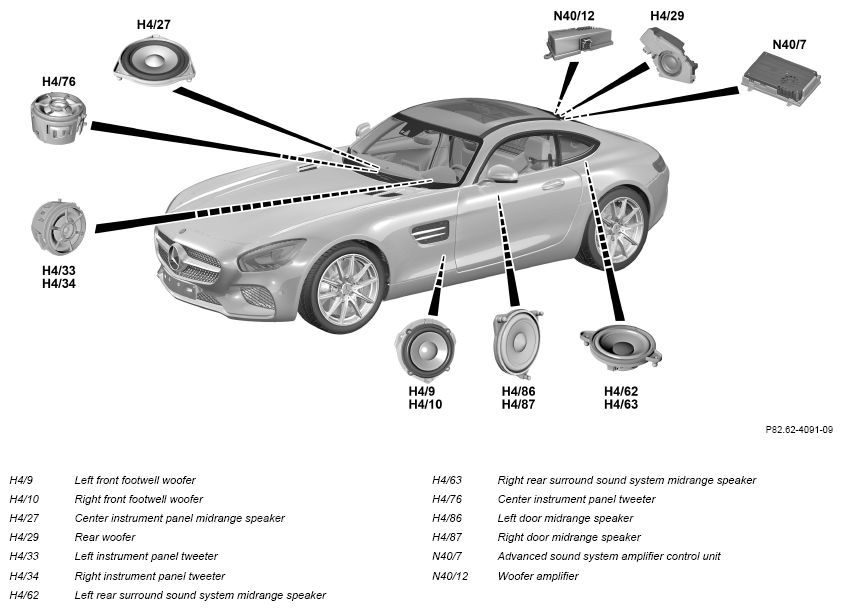

Speaker system, With Code 811 (Advanced sound system), shown on model 190.3 up to 30.11.2018

  Component description for instrument cluster A1 GF54.30-P-6000RR
  Head unit, component description Model 190
with code 520 (Audio 20 USB)
except code 531 (COMAND APS)
A26/17		 GF82.85-P-3140RR
    Model 190
with code 531 (COMAND APS)
except code 520 (Audio 20 USB)
A26/17		 GF82.85-P-3140RRA
    Model 190 with code 506 (Audio 20 NTG 5.5 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS)
A26/17		 GF82.85-P-3140RRB
  Component description for Audio/COMAND display A40/8 GF54.30-P-6150RR
  Component description for Audio/COMAND control panel Model 190
except code 446 (Touchpad only) A40/9		 GF54.21-P-4501RR
  Tuner unit, component description Model 190 up to 11/30/18
up to model year 2019
with code 536 (Sirius satellite radio complete system)
Model 190 up to 11/30/18
up to model year 2019
with code 537 (DAB digital radio standard (Digital
Audio Broadcast))
A90/4		 GF82.60-P-5015RR
  Touchpad, component description Model 190
with code 446 (Touchpad only)
Model 190
with code 448 (Touchpad)
with code 520 (Audio 20 USB)
Model 190
with code 531 (COMAND APS)
A105		 GF54.21-P-4511RR
  Supplemental restraint system control unit, component description N2/10 GF91.60-P-4080RR
  Component description for ME-SFI (ME) control unit Model 190 with engine 178.9 N3/10 GF07.61-P-6000MNB
  Component description for front SAM control unit with fuse and relay module N10/1 GF54.21-P-6070RR
  Component description for rear SAM control unit with fuse and relay module N10/2 GF54.21-P-6030RR
  Component description for Electronic Stability Program control unit N30/4 GF42.45-P-5119RR
  Component description for sound system amplifier control unit Model 190 as of 12/1/18
as of model year 2019
except code 810 (Premium sound system)
except code 811 (High-End sound system)
N40/2		 GF82.62-P-5010RRM
    Model 190
with code 810 (Premium sound system)
except code 811 (High-End sound system)
N40/3		 GF82.62-P-5010RR
    Model 190
with code 811 (High-End sound system)
except code 810 (Premium sound system)
N40/7		 GF82.62-P-5010RRA
  Component description for electronic overhead control panel N70/3 GF82.20-P-5217RR
  Lower control panel control unit, component description Model 190 as of 12/1/18 as of model year 2019
N72/5		 GF54.21-P-6060RRM
  Component description for the electronic ignition lock control unit N73 GF80.57-P-6001RR
  Component description for steering column tube module control unit Model 190 as of 12/1/18 as of model year 2019 GF54.21-P-6051RRM
    Model 190 up to 11/30/18 up to model year 2019 N80 GF54.21-P-6051RR
  AMG gateway control unit, component description Model 190 with transmission 700.4 N93/9 GF54.21-P-1001RR
  Telematics services communications module, component description Model 190
up to model year 2017
with code 350 (Ecall emergency call system, Europe)
Model 190
up to model year 2017
with code B54 (Live Traffic Information)
N112/1		 GF82.85-P-0220RR
  HERMES control unit, component description Model 190
with code 360 (HERMES UMTS)
Model 190
with code 362 (HERMES communications module LTE)
N112/9		 GF82.85-P-0221RR
  Component description for emergency call system control unit Model 190
up to model year 2017
with code 348 (Emergency call/assistant system)
N123/4		 GF82.95-P-3212RRU
  Telephone control unit, component description Model 190
with code 380 (Car telephony package) N123/9		 GF82.70-P-4153RRM
  Steering wheel electronics control unit, component description Model 190 as of 12/1/18 as of model year 2019
N135		 GF82.90-P-4006RR
  TV tuner control unit, component description Model 190 as of 12/1/18 as of model year 2019 with code 865 (digital TV)
N143		 GF82.60-P-3108RRM
  Table of contents for function description, telematics   GF82.85-P-0993RR
