Audio/Comand Display, Component Description - GF54.30-P-6150RR

Model 190

Shown on model 190.3 up to 30.11.2018

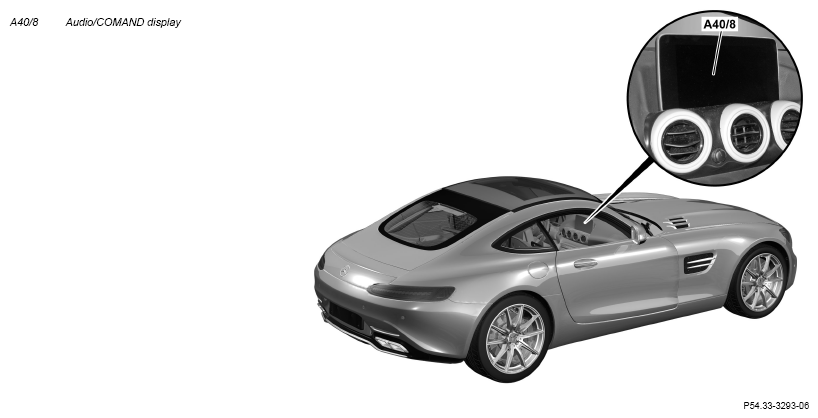

Fig 1: Audio/Comand Display Components Location - Model 190 (Shown On Model 190.3 Up To 30.11.2018)

Courtesy of MERCEDES-BENZ USA

Location

The Audio/COMAND display is installed at the top center of the instrument panel.

Tasks

The Audio/COMAND display serves the uniform presentation of user-relevant operating and information windows as well as the presentation of video picture information.

The Audio/COMAND display receives the following signals:

Control signals (e.g. switching on) via the telematics CAN (CAN A) from the head unit (A26/17)
Picture signals via the HSVL (High Speed Video Link) interface of head unit (as of 01.12.2018)
Picture signals via the LVDS (Low Voltage Differential Signal) interface of head unit (up to 30.11.2018)

The Audio/COMAND display evaluates the input factors in the integrated microprocessor, and actuates the color screen.

Variants

The Audio/COMAND display is available in the following variants:

7" display (free standing) (with code 520 (Audio 20 USB) up to 30.11.2018)
8.4" display (free standing) (with code 531 (COMAND APS) up to 30.11.2018)
10.25" display (free standing) (as of 01.12.2018)

	Cockpit Management and Data System (COMAND) control unit wiring diagram		PE82.85-P-2101-97HBA
			PE82.85-P-2101-97HBB
