Overview Of Interior Illumination (IBL) System Components - GF82.20-P-9997RR
Model 190

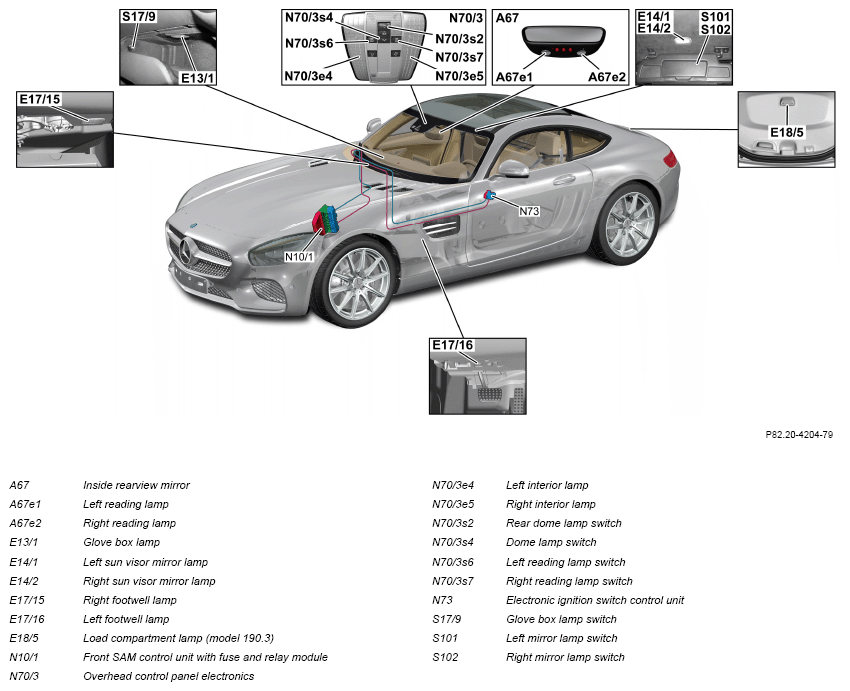

Manual interior lights control

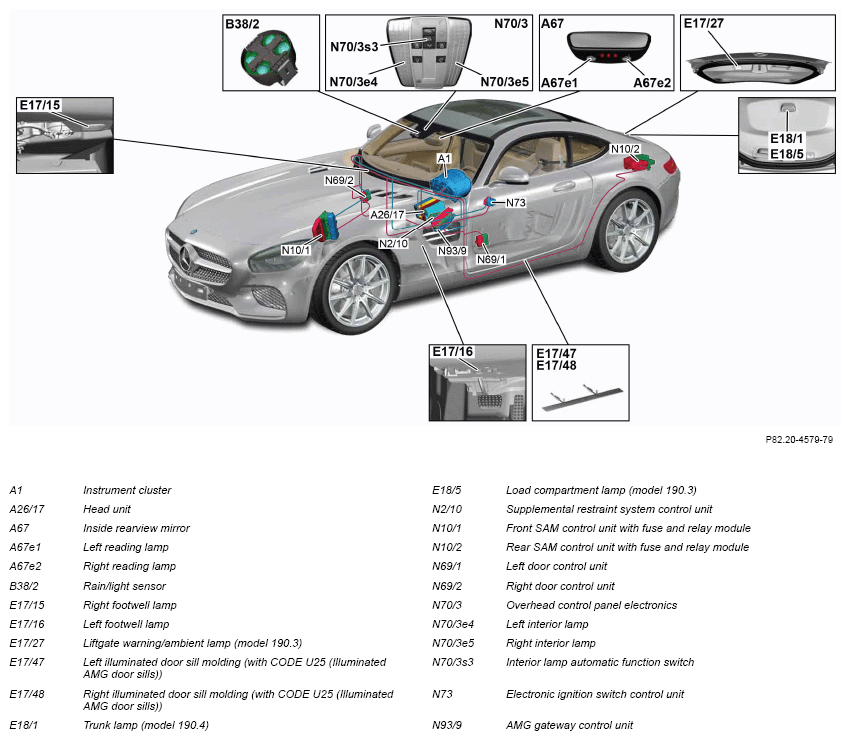

Automatic interior lights control
Symbol lighting, shown on model 190.3 up to 30.11.2018

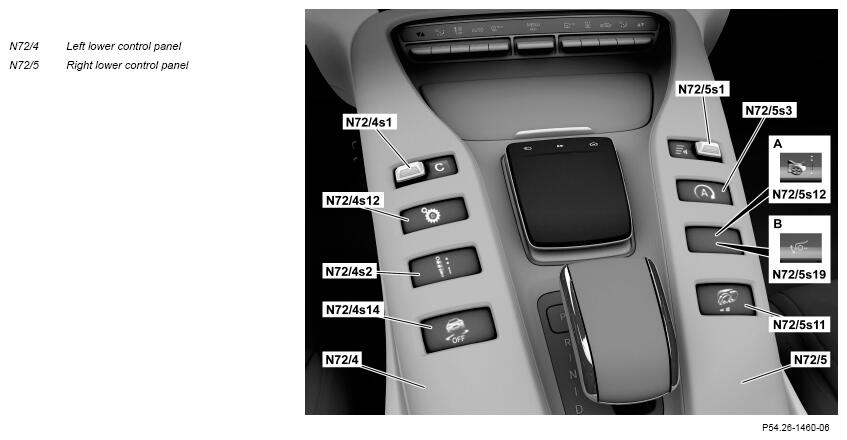

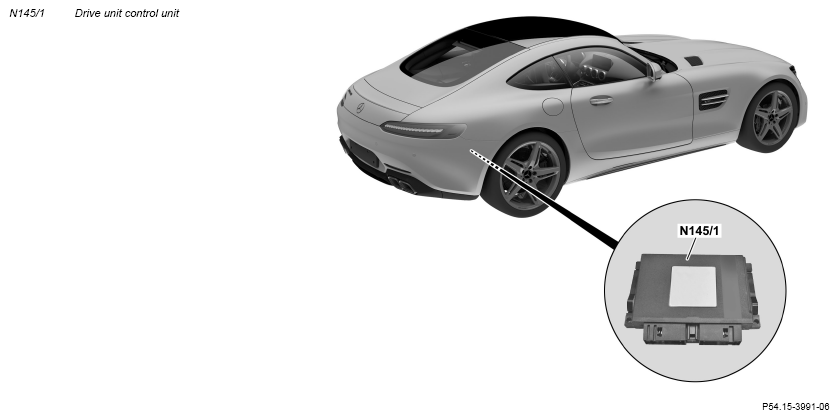

The Drive Unit control unit (N145/1), the left lower control panel (N72/4) and the right lower control panel (N72/5) are also installed.

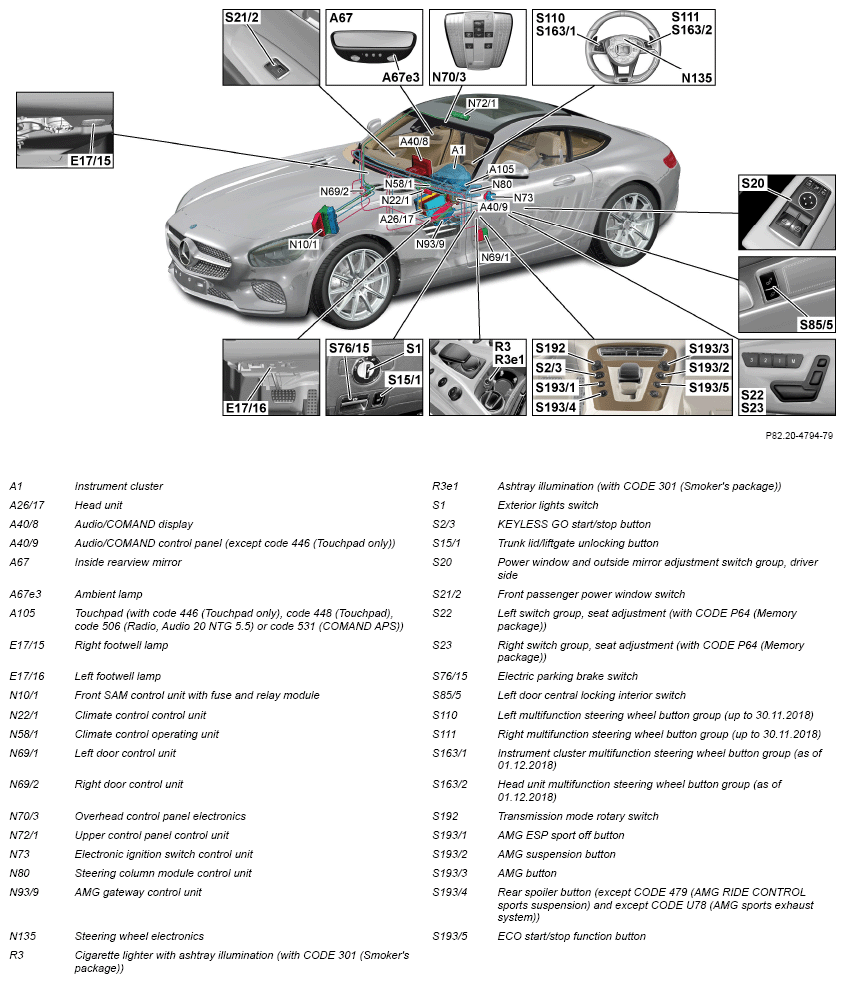

Shown on model 190.3 as of 01.12.2018
View of center console as of 01.12.2018, shown With Code 446 (Touchpad only)
| Component description for instrument cluster | A1 | GF54.30-P-6000RR | |
| Head unit, component description | Model 190 with code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 | GF82.85-P-3140RR | |
| Model 190 with code 531 (COMAND APS) except code 520 (Audio 20 USB) A26/17 | GF82.85-P-3140RRA | ||
| Model 190 with code 506 (Audio 20 NTG 5.5 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 | GF82.85-P-3140RRB | ||
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150RR | |
| Component description for Audio/COMAND control panel | Model 190 except code 446 (Touchpad only) A40/9 | GF54.21-P-4501RR | |
| Touchpad, component description | Model 190 with code 446 (Touchpad only) Model 190 with code 448 (Touchpad) with code 520 (Audio 20 USB) Model 190 with code 531 (COMAND APS) A105 | GF54.21-P-4511RR | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RR | |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RR | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030RR | |
| Climate control control unit, component description | N22/1 | GF83.40-P-2250RR | |
| Front climate control operating unit, component description | N58/1 | GF83.40-P-2260RR | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RR | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009RR | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040RR | |
| Lower control panel control unit, component description | Model 190 as of 12/1/18 as of model year 2019 N72/4, N72/5 | GF54.21-P-6060RRM | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RR | |
| Component description for steering column tube module control unit | Model 190 as of 12/1/18 as of model year 2019 N80 | GF54.21-P-6051RRM | |
| Model 190 up to 11/30/18 up to model year 2019 N80 | GF54.21-P-6051RR | ||
| AMG gateway control unit, component description | Model 190 with transmission 700.4 N93/3 | GF54.21-P-1001RR | |
| Steering wheel electronics control unit, component description | Model 190 as of 12/1/18 as of model year 2019 N135 | GF82.90-P-4006RR | |
| Contents, function description of interior illumination (IBL) | GF82.20-P-0998RR |
