Overview Of Exterior Lights System Components - GF82.10-P-9998RR
Model 190
Shown on model 190 up to model year 2019

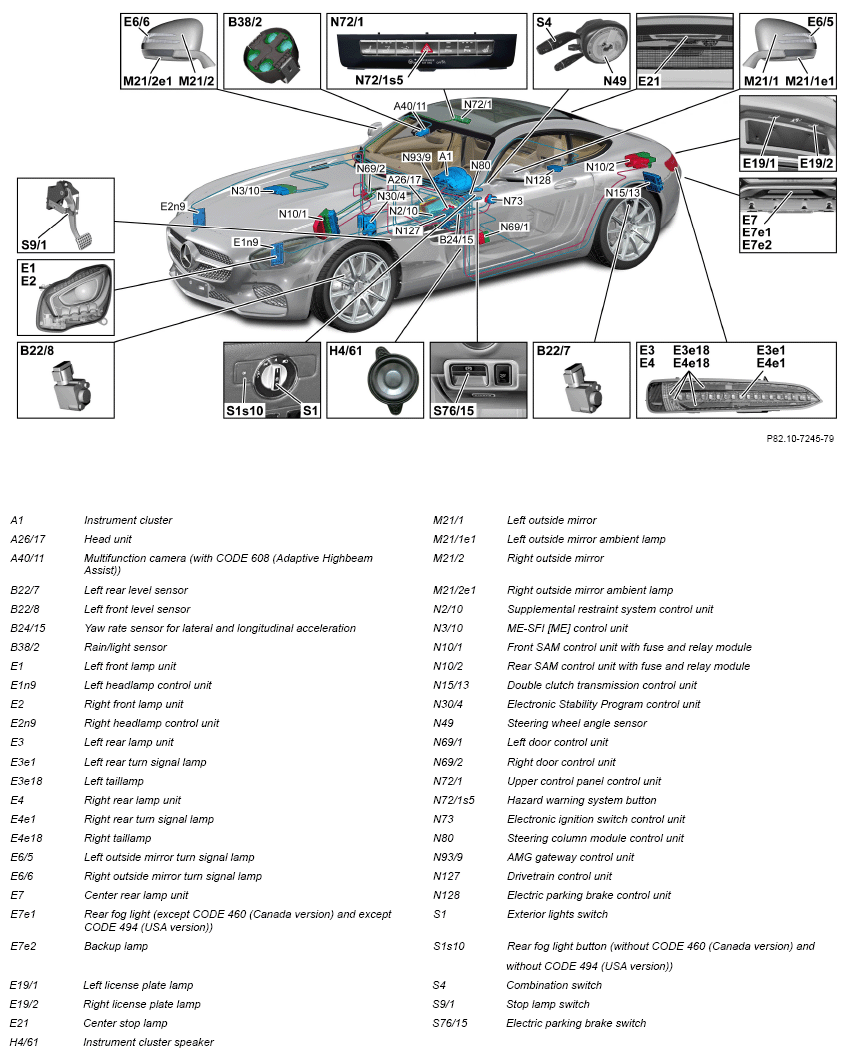

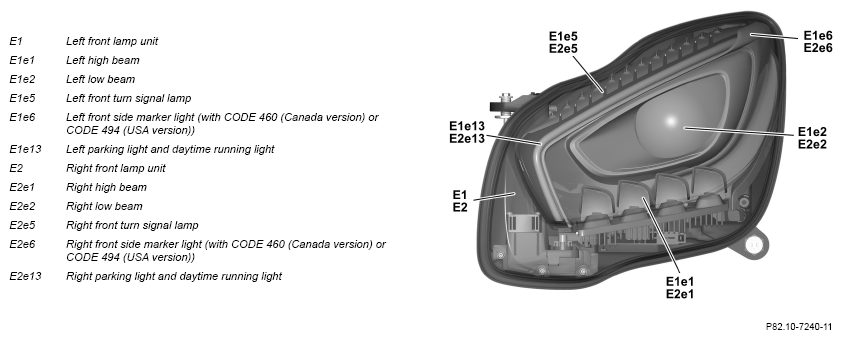

Front lamp unit (static in full LED design) up to model year 2019 With Code 460 (Canada version) or code 494 (USA version)
The following components are not shown:
- Left headlamp range adjustment actuator motor (E1m1)
- Fan motor 1 for left front lamp unit (E1 m4)
- Right headlamp range adjustment actuator motor (E2m1)
- Fan motor 1 for right front lamp unit (E2m4)

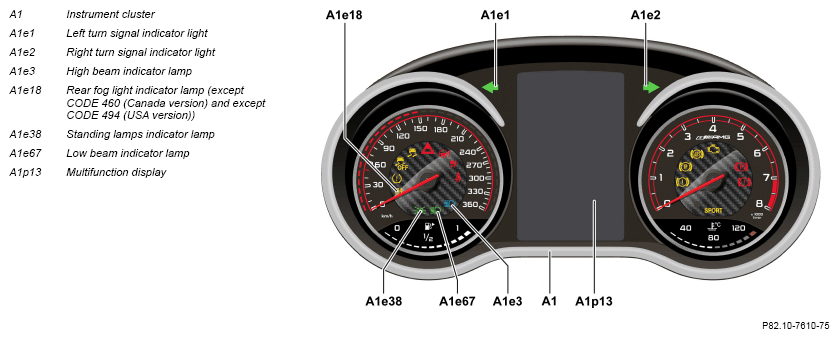

| Component description for instrument cluster | A1 | GF54.30-P-6000RR | |
| Head unit, component description | Model 190 with code 520 (Audio 20 USB) except code 531 (COMAND APS) |
GF82.85-P-3140RR | |
| A26/17 Model 190 with code 531 (COMAND APS) except code 520 (Audio 20 USB) A26/17 |
GF82.85-P-3140RRA | ||
| Component description for multifunction camera | Model 190 with code 608 (Adaptive Highbeam Assist) A40/11 |
GF54.21-P-3300RR | |
| Turn rate, lateral and longitudinal acceleration sensor, component description | B24/15 | GF42.45-P-4082RR | |
| Lamp unit, component description | E1, E2 | GF82.10-P-2017RR | |
| Headlamp control unit, component description | E1n9, E2n9 | GF82.10-P-2020RR | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RR | |
| Component description for ME-SFI (ME) control unit | Model 190 with engine 178.9 N3/10 | GF07.61-P-6000MNB | |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RR | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030RR | |
| Dual clutch transmission control unit, component description | Model 190 with transmission 700.4 N15/13 | GF27.60-P-5171RR | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119RR | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RR | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009RR | |
| Upper control panel control unit, component description | N721, N72/1s5 | GF54.21-P-6040RR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RR | |
| Component description for steering column tube module control unit | Model 190 up to 11/30/18 up to model year 2019 N80 |
GF54.21-P-6051RR | |
| Model 190 as of 12/1/18 as of model year 2019 N80 |
GF54.21-P-6051RRM | ||
| AMG gateway control unit, component description | Model 190 with transmission 700.4 N93/9 | GF54.21-P-1001RR | |
| Drivetrain control unit, component description | Model 190 with engine 178.9 N127 | GF54.21-P-2141MNB | |
| Electric parking brake control unit, component description | N128 | GF42.20-P-5005RR | |
| Table of contents for function description of exterior lights | GF82.10-P-0999RRA |
